• Home
  • Passive Dayton Audio Reference 18" with Dual Passive Radiator Subwoofer Kit 900 Watts

CLEARANCE Passive Dayton Audio Reference 18" with Dual Passive Radiator Subwoofer Kit 900 Watts

Parts Express
Part #300-7158

CLEARANCE Passive Dayton Audio Reference 18" with Dual Passive Radiator Subwoofer Kit 900 Watts

Parts Express
Part #300-7158
Model: 300-7158
If you need extreme output capabilities, gut wrenching low-end response, and minimal distortion, then this is the sub kit for you. Using Dayton Audio's massive RSS460HO-4 18" driver paired up with two of the RSS460-PR passive radiators, this subwoofer kit is capable of seeming endless output capability with unbelievable low frequency extension. Beyond that, thanks to the low distortion design of the driver and added damping of the passive radiators, this kit produces remarkably low distortion levels.
Key Features
  • Amazing ground shaking low end with incredible output capability
  • Passive radiator assisted design extends bass response from a compact enclosure
  • Excellent choice for serious home theater applications and massive music systems
  • Customize the precision CNC-cut MDF enclosure to fit in any décor
60 Day No Hassle Return Policy

Overview

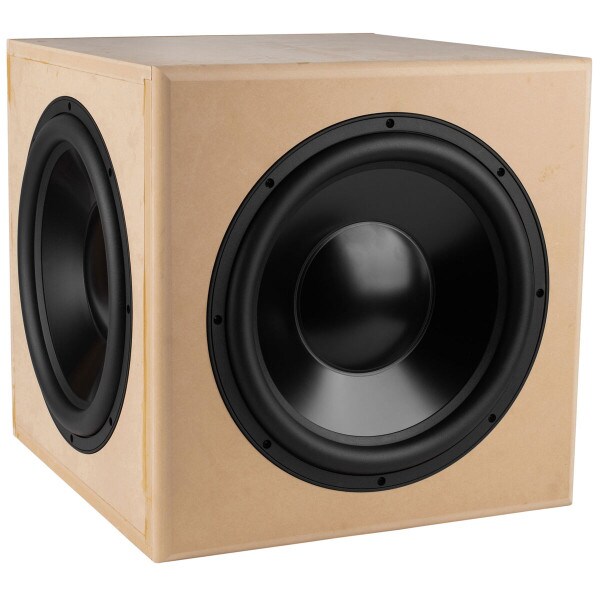

Passive Dayton Audio Reference 18" with Dual Passive Radiator Subwoofer Kit 900 Watts

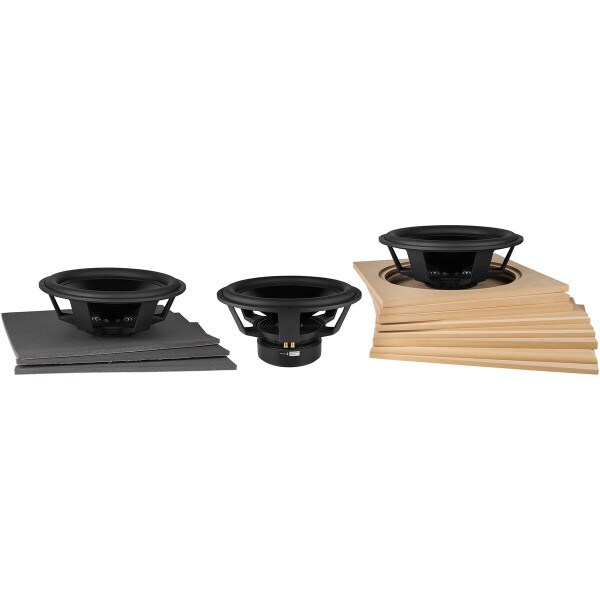

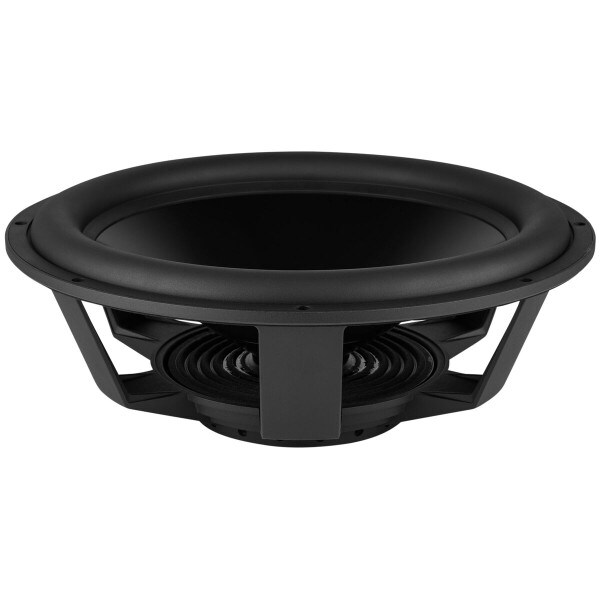

Using Dayton Audio's incredible RSS460HO-4 18" driver with two of the matching RSS460-PR 18" passive radiators, this imposing subwoofer kit is not for the faint of heart. Capable of over 115 dB of output and unassisted response to 20 Hz and lower, this subwoofer kit is a great match for some of the largest music and home theater systems. With plenty of output capability to shake your home's foundation (and possibly your neighbor's) this kit is sure to impress anyone on the quest for more bass. This subwoofer is not just about output, with triple shorting rings, extensive venting, and a rigid aluminum cone, the RSS460HO-4 18" driver is known for its remarkably low distortion characteristics. Also, by using dual passive radiators the low frequency extension has been extended while keeping group delay through the audible range remarkably low to deliver a quick and responsive punch you wouldn't expect from a subwoofer this size. Finally, the included CNC-cut knock-down enclosure is constructed of thoroughly braced 3/4" MDF with a double thickness 1-1/2" front baffle.

Note: Screws, terminal, and speaker wire are not included.

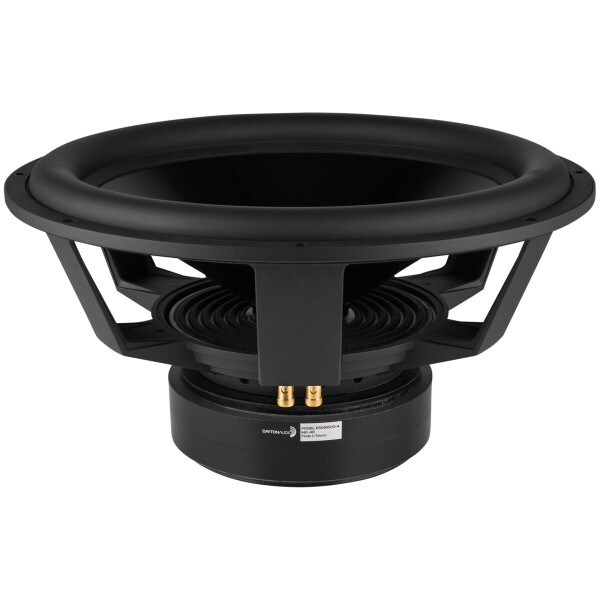

Dayton Audio RSS460HO-4 18" Subwoofer Specifications: • Power handling: 900 watts RMS/1,800 watts max • Le: 2.24 mH • Impedance: 4 ohms • Re: 3.2 ohms • Frequency response: 20-500 Hz • Fs: 18.8 Hz • SPL: 93 dB 2.83V/1m • Vas 9.61 ft³ • Qms: 4.05 • Qes: 0.35 • Qts: 0.32 • Xmax: 12.75 mm.

Enclosure Specifications: • Panel thickness: 3/4" • Panel material: Medium Density Fiberboard (MDF) • Finished internal cabinet volume: 5.7 cubic feet • External dimensions: 23" H x 23" W x 23.75" D • Completed subwoofer weight: 92 lbs. • Made in the U.S.A.

Note: Mounting screws and feet are not included.

Product Details

BrandParts Express
Model300-7158
Part Number300-7158
UPC848791005596
Weight120.55

Product Specifications

Cabinet Dimensions (HxWxD)23" x 23" x 23.75"
Cabinet OptionsUnfinished/Unassembled
ColorUnfinished
ConfigurationSubwoofer
Input Rating4 ohm
Speaker TypeSubwoofer
Woofer Diameter18"
