BUYOUT Panasonic EAS14PL316B6 6" Mid-Woofer

Factory Buyouts
Part #299-4130

BUYOUT Panasonic EAS14PL316B6 6" Mid-Woofer

Factory Buyouts
Part #299-4130
Model: EAS14PL316B6
The Panasonic EAS14PL327A6 6" paper cone woofer is ideal as a replacement woofer, or as the low-end in your next budget build.
Key Features
  • Shielded magnet assembly is suitable for use near sensitive electronics
  • The basket uses high-quality stamped steel for outstanding stability under extreme stress
  • The bumped back plate allows the high-temp voice coil to move even more, so you get deeper bass without distortion
BUYOUT $9.98
Bulk Pricing
Quantity:Qty: 1-9 $9.98/ea
Quantity:Qty: 10-19 $9.48/ea
Quantity:Qty: 20+$8.98/ea
Order in the next 4 hr 54 min to ship today. Details

6407In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Panasonic EAS14PL316B6 6" Mid-Woofer

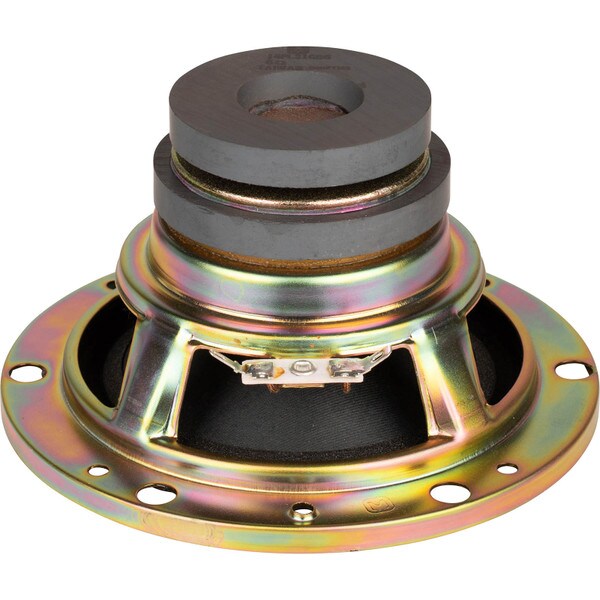

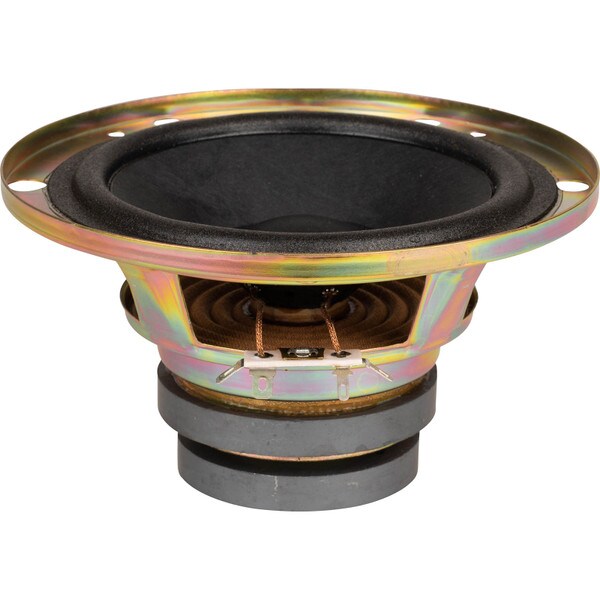

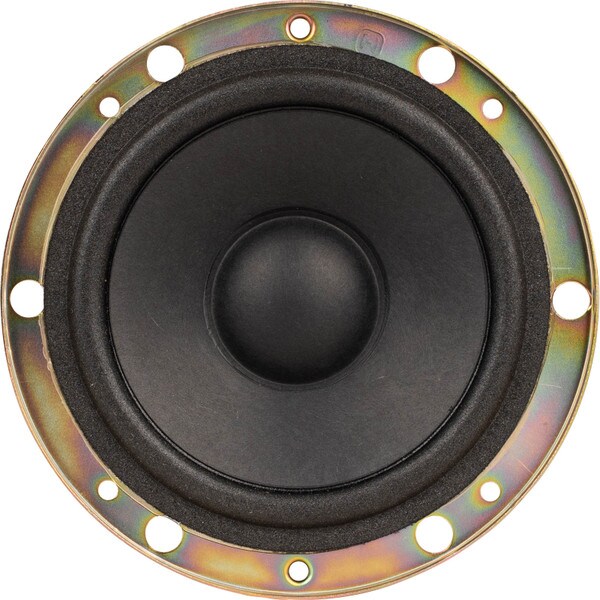

Sporting a paper cone and foam surround, the Panasonic EAS14PL327A6 6" woofer is a well-built, smooth sounding woofer that will work equally well in ported or sealed enclosures. A 1" diameter 4-layer copper voice coil handles ample power and a vented cone helps keep things cool under high power applications. A bucking magnet allows close use near older CRT screens or mechanical hard drives without negative effects.

Product Details

BrandFactory Buyouts
ModelEAS14PL316B6
Part Number299-4130
UPC848864072111
Unit of MeasureEach
Weight1.55

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter5.5
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance6Ω
Frequency Response50-4,000Hz
Sensitivity85.68dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)50.3Hz
DC Resistance (Re)4.845Ω
Voice Coil Inductance (Le)1.317mH
Mechanical Q (Qms)8.81
Electromagnetic Q (Qes)0.5403
Total Q (Qts)0.5091
Compliance Equivalent Volume (Vas)0.3583ft³
Diaphragm Mass Inc. Airload (Mms)12.66g
Maximum Linear Excursion (Xmax)2.25mm
Surface Area of Cone (Sd)95.22cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.125"
Baffle Cutout Diameter4.75"
Depth3.25"
# Mounting Holes12
