BUYOUT Panasonic 12P331A6 Bose Replacement Speaker 6 Ohm

Factory Buyouts
Part #299-212

BUYOUT Panasonic 12P331A6 Bose Replacement Speaker 6 Ohm

Factory Buyouts
Part #299-212
Model: ZEAS12P331A6

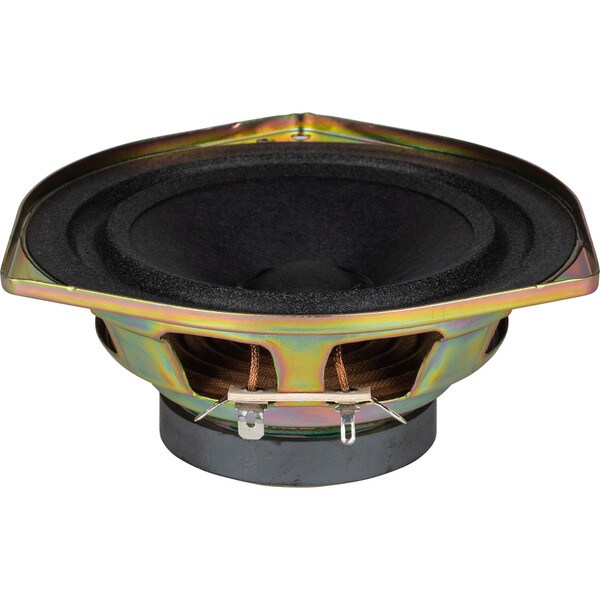

The Panasonic 12P331A6 Bose Replacement Speaker uses a paper cone and treated foam surround for natural audio reproduction. The Bose style frame and 6 ohm impedance means this is a great replacement or alternative for numerous designs.
Key Features
  • Paper cone and inverted foam surround for natural audio reproduction
  • 6 ohm impedance
  • Bose style frame
  • 3/4” copper voice coil
BUYOUT $4.88
Bulk Pricing
Quantity:Qty: 1-23 $4.88/ea
Quantity:Qty: 24-71 $4.34/ea
Quantity:Qty: 72+$4.15/ea
Order in the next 1 hr 53 min to ship today. Details

17307In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Panasonic 12P331A6 Bose Replacement Speaker 6 Ohm

The Panasonic 12P331A6 Bose Replacement Speaker is a great replacement option for 6 ohm Bose full-range speakers. With a bumped back plate for extended excursion ability and treated foam surround, this is designed to last for years. It’s small size and full range ability also make it a good choice for a cost effective speaker in a custom array system.

Product Details

BrandFactory Buyouts
ModelZEAS12P331A6
Part Number299-212
UPC848864072036
Unit of MeasureEach
Weight0.82

Product Specifications

Nominal Diameter4-1/2"
Bolt Circle Diameter5
Power Handling (RMS)10 Watts
Power Handling (MAX)20 Watts
Impedance6Ω
Frequency Response90-4,000Hz
Sensitivity84.08dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)94.11Hz
DC Resistance (Re)5.67Ω
Voice Coil Inductance (Le)0.2346mH
Mechanical Q (Qms)4.652
Electromagnetic Q (Qes)1.936
Total Q (Qts)1.367
Compliance Equivalent Volume (Vas)0.1358ft³
Diaphragm Mass Inc. Airload (Mms)4.045g
Maximum Linear Excursion (Xmax)1.25mm
Surface Area of Cone (Sd)62.21cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.25"
Baffle Cutout Diameter4.25"
Depth2.125"
# Mounting Holes3
