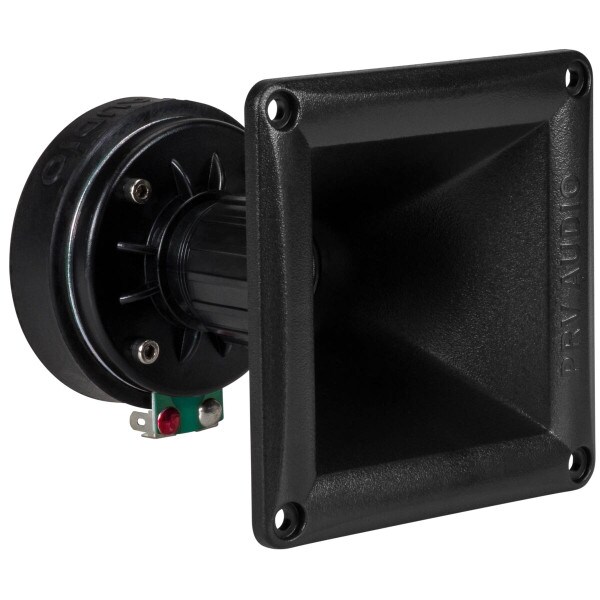

PRV Audio WG175Ph Horn Super Tweeter 8 Ohm

PRV Audio
Part #294-2808

PRV Audio WG175Ph Horn Super Tweeter 8 Ohm

PRV Audio
Part #294-2808
Model: WG175Ph

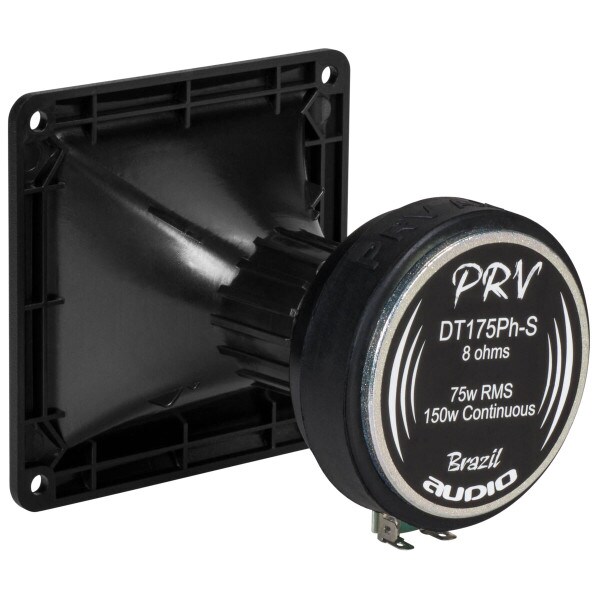

From PRV Audio, the WG175Ph pairs the popular DT175Ph-S 1" phenolic horn driver with a compact 45° x 45° horn creating a small tweeter capable of high output with natural response. Excellent for use in 2 or 3-way designs.
Key Features
  • Compact, lightweight design ideal for small, high output designs
  • Phenolic diaphragm provides natural and accurate response
  • Kapton voice coil former for reliability in rough conditions
  • 45° x 45° dispersion for even, space filling sound
Your Price: $23.91
MSRP: $29.89
Save $5.98 (20%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio WG175Ph Horn Super Tweeter 8 Ohm

PRV Audio's WG175Ph is a compact 8 ohm super tweeter designed for use in smaller 2-way and 3-way systems. The driver uses a 1" phenolic diaphragm mated to a Kapton former with CCAW (copper-clad aluminum wire) minimizing moving mass to provide smooth response at the highest maximum output. The 4.5" x 4.5" horn produces a controlled 45° x 45° dispersion pattern to reduce unwanted reflections while still delivering room filling sound. With a common footprint, this is an excellent tweeter for use as a replacement, or in compact 2-way or 3-way high output speaker systems.

Specifications: • Power handling: 75 watts RMS/150 watts max (conservative, with recommended crossover at 4,000 Hz) • Dispersion: 45° x 45° • VCdia: 1" • Impedance: 8 ohms • Frequency response: 1,500-18,000 Hz • SPL: 108 dB 1W/1M • Dimensions: 4.5" W x 4.5" H x 4.75" D • Cutout: 3.3" x 3.3".

Product Details

BrandPRV Audio
ModelWG175Ph
Part Number294-2808
UPC810075520019
Unit of MeasureEach
Weight2

Product Specifications

Diaphragm MaterialPhenolic
Power Handling (RMS)75 Watts
Impedance8Ω
