PRV Audio D290Py-B 1" Polyimide Horn Compression Driver 8 Ohm 2/3-Bolt

PRV Audio
Part #294-2833

PRV Audio D290Py-B 1" Polyimide Horn Compression Driver 8 Ohm 2/3-Bolt

PRV Audio
Part #294-2833
Model: D290Py-B
For crystal clear natural sound with accuracy, choose PRV Audio's D290Py-B 1" compression driver. Sonically similar to soft dome tweeters, the D290Py-B is at home in high-end monitors, high output home audio speakers, and any application that calls for a speaker with a smooth frequency response.
Key Features
  • Specially designed polyimide diaphragm for natural vocals
  • High energy motor for effortless 109 dB 2.83V/1m high output
  • Industry standard 2/3-bolt mounting with included hardware and screw-on adapter
Your Price: $69.91
+ FREE SHIPPING
MSRP: $87.39
Save $17.48 (20%)
Bulk Pricing
Order in the next 0 hr 40 min to ship today. Details

Only 1 In Stock

More due on 12/31/2024
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio D290Py-B 1" Polyimide Horn Compression Driver 8 Ohm 2/3-Bolt

PRV Audio's top-of-the-line D290Py-B polyimide 1" 2/3-bolt compression horn driver is designed to offer unsurpassed natural upper midrange and high frequency response, with accuracy not found in most manufacturer's stock PA speaker cabinets.

The specially designed polyimide diaphragm sounds very similar to the silk and textile dome tweeters used in high-end home audio speakers and studio monitors. PRV Audio combines this diaphragm with a high-energy motor for high output over the usable driver bandwidth for effortless, dynamic output.

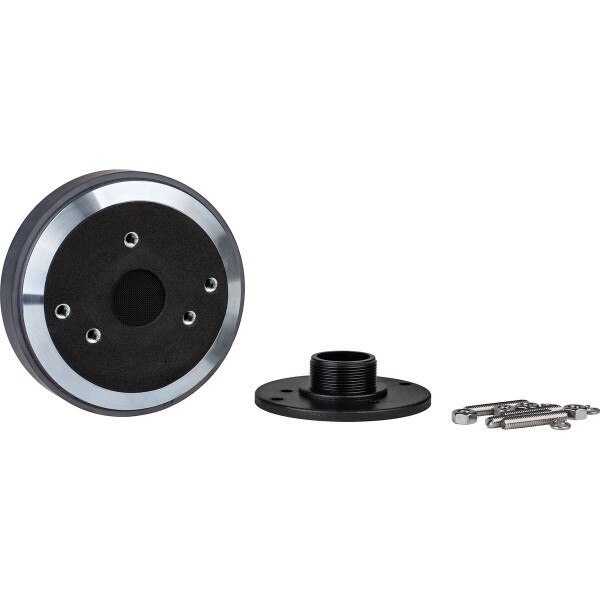

High power handling is accomplished through the use of a Kapton® former and a 1-3/4" diameter voice coil, for a 90 watt RMS power rating when used with a 1,500 Hz 12 dB/octave high pass crossover, making the D290Py-B a drop-in upgrade replacement horn driver for nearly any speaker cabinet with an industry standard 2 or 3-bolt horn. Spring-loaded wire terminals facilitate quick connection. Includes screw-on adapter.

Also available in a 1-3/8"-18 TPI model.

Specifications: • Power handling: 110 watts RMS with recommended crossover of 1,600 Hz, 12 dB/octave slope • VCdia: 3" • Impedance: 8 ohms • Frequency response: 1,600-17,000 Hz • SPL: 109 dB 2.83V/1m • Dimensions: 4.72" diameter x 2.4" depth • Bolt thread and pattern: M6 x 2 (spaced at 3"), M6 x 3 (spaced at 2.4") • Net weight: 4.72 lbs. See the Related Items section for the replacement diaphragm.

Product Details

BrandPRV Audio
ModelD290Py-B
Part Number294-2833
UPC799928733847
Unit of MeasureEach
Weight4.9

Product Specifications

Diaphragm MaterialKapton / Polyimide
Exit Diameter1"
Mounting Type2-Bolt/3-Bolt
Power Handling (RMS)90 Watts
Impedance8Ω
