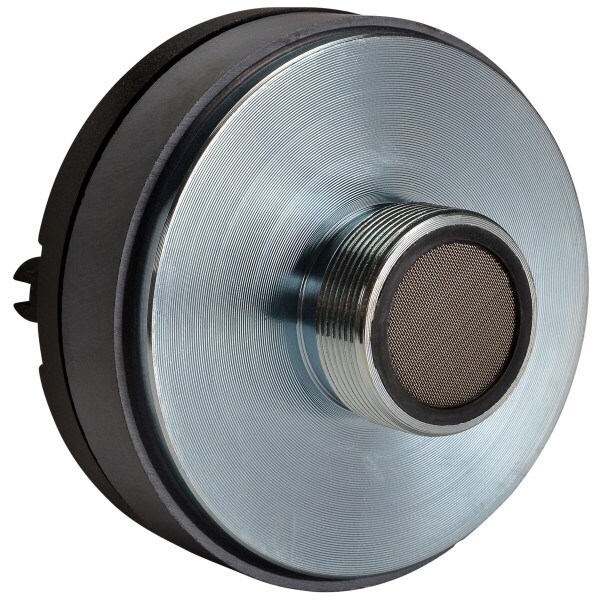

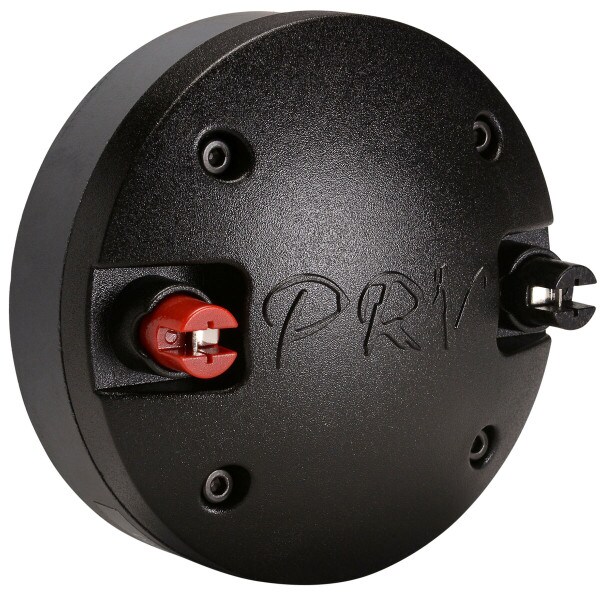

PRV Audio D230Ti-S 1" Titanium Horn Compression Driver 8 Ohm 1-3/8"-18 TPI

PRV Audio
Part #294-2822

PRV Audio D230Ti-S 1" Titanium Horn Compression Driver 8 Ohm 1-3/8"-18 TPI

PRV Audio
Part #294-2822
Model: D230Ti-S
PRV Audio's D230Ti-S 1" pure titanium horn driver is designed as superior low-cost replacement and upgrade for many PA speakers that use a standard 1-3/8"-18 TPI horn. Bring your old speakers back to life with cleaner, clearer sound using the D230Ti-S.
Key Features
  • Replaces and upgrades factory PA speaker 1-3/8"-18 TPI horn drivers
  • Pure titanium diaphragm for smooth, extended frequency response
  • High power handling combined with high 107 dB sensitivity
Your Price: $27.91
MSRP: $37.39
Save $9.48 (25%)
Bulk Pricing
Order in the next 12 hr 54 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio D230Ti-S 1" Titanium Horn Compression Driver 8 Ohm 1-3/8"-18 TPI

The D230Ti-S 1" compression driver from PRV Audio is designed for high output while remaining lightweight, clocking in at just over two pounds. A pure titanium diaphragm helps to provide smooth frequency response from 1,000 to 20,000 Hz, while a Kapton® former and 1.4" copper voice coil combine to offer a 30 watt RMS power handling.

Standard 1-3/8"-18 TPI threads make the D230Ti-S a great, easy replacement and upgrade option for many pro audio cabinets, where manufacturers typically use the cheapest component possible. This driver's high sensitivity translates into clearer, more effortless sound than ever before from your speakers.

If you are building your own speaker cabinets from scratch, the D230Ti-S works well with PRV Audio's 10W600 10" woofer, 12W700 12" woofer, and 15W700 15" woofer for two-way speaker designs when used with the PRV Audio 2DF2k 2,000 Hz two-way crossover. High output mobile audio enthusiasts choose this compression driver for its small size and high output.

Also available in a 2/3-bolt model.

Specifications: • Power handling: 30 watts RMS with recommended crossover of 2 kHz, 12 dB/octave slope • VCdia: 1.4" • Impedance: 8 ohms • Frequency response: 1,600-20,000 Hz • SPL: 107 dB 2.83V/1m • Dimensions: 3.54" diameter x 2.5" depth (with threads) • Net weight: 3.54 lbs. • Replacement diaphragm available (please see Related Items).


Product Details

BrandPRV Audio
ModelD230Ti-S
Part Number294-2822
UPC799928733892
Unit of MeasureEach
Weight2.1

Product Specifications

Diaphragm MaterialTitanium
Exit Diameter1"
Mounting Type1-3/8"-18 TPI
Power Handling (RMS)30 Watts
Impedance8Ω
