  • PRV Audio 8MB700FT-NDY-4 8" Forte Series Neodymium Speaker 4 Ohm

PRV Audio 8MB700FT-NDY-4 8" Forte Series Neodymium Speaker 4 Ohm

PRV Audio
Part #294-3410

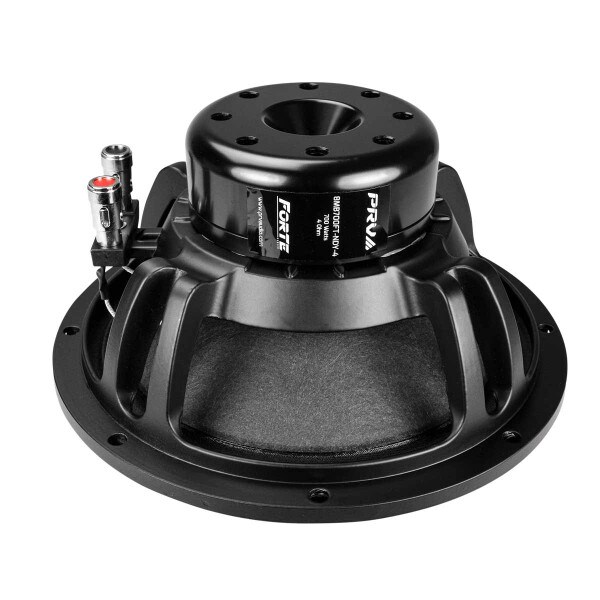

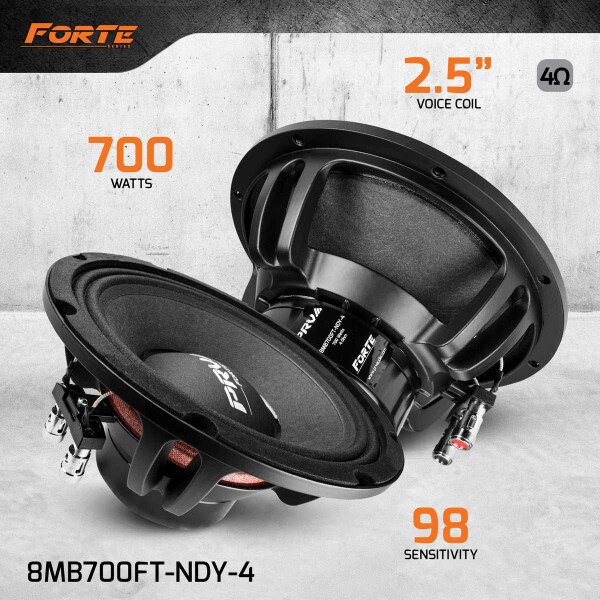

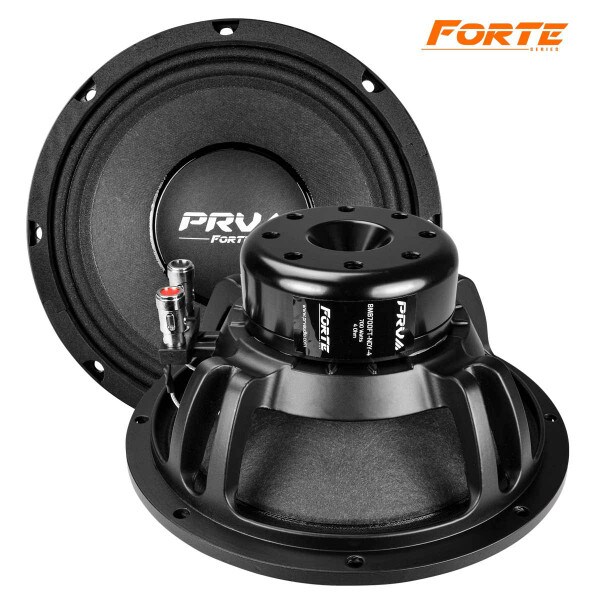

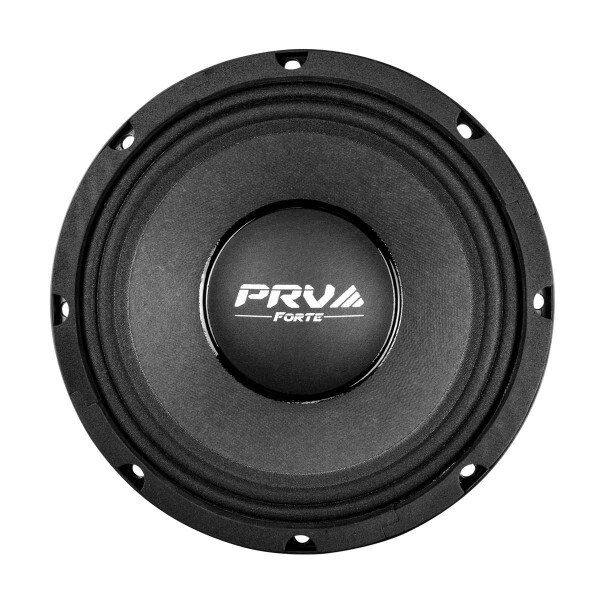

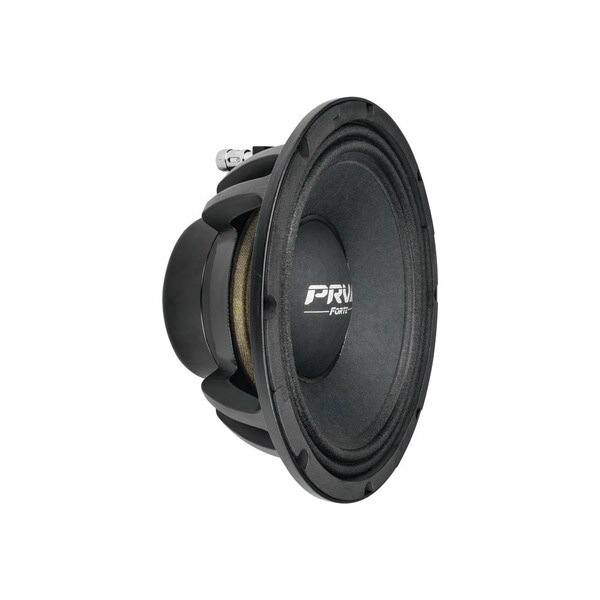

PRV Audio 8MB700FT-NDY-4 8" Forte Series Neodymium Speaker 4 Ohm

PRV Audio
Part #294-3410
Model: 8MB700FT-NDY-4

The PRV Audio 8MB700FT-NDY-4 from the Forte Series is a custom-engineered solution designed to provide enhanced power handling capabilities and reduced distortion. Its sizable voice coil is crafted to facilitate efficient heat dissipation and maintain the essential Bl factor, ensuring remarkable sensitivity even under high-powered conditions while minimizing distortion.

Key Features
  • 350 Watts RMS Power Handling, with a 98 dB Sensitivity, capable of generating very high output
  • Low inductance and extended frequency response with wide directivity
  • Rigid cast aluminum frame can withstand the use and abuse of pro and car audio
  • Natural paper cone and double-roll surround for smooth response
  • New Generation of Neodymium Magnet Structure
Your Price: $169.91
+ FREE SHIPPING
MSRP: $212.39
Save $42.48 (20%)
Bulk Pricing
Order in the next 1 hr 18 min to ship today. Details

14In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 8MB700FT-NDY-4 8" Forte Series Neodymium Speaker 4 Ohm

Introducing the 8MB700FT-NDY-4, a highly efficient 8-inch midbass engineered by PRV Audio. Its expansive frequency bandwidth and impressive 98 dB sensitivity rating render it an ideal partner for coupling with compression drivers within a 3-way system (employing a recommended 95 Hz, 12 dB/octave high pass filter).

Precision in midbass delivery is enhanced by the lower Qts, ensuring meticulous performance. An exceptional blend of a non-pressed cone with an impeccably smooth frequency response and an ingeniously designed surrounding ring enables significant displacement while minimizing distortion.

To achieve remarkable fidelity, the specialized composite cone incorporates non-pressed paper, curtailing break-up tendencies for seamless frequency response and reduced moving mass, ultimately elevating speaker efficiency.

The potent neodymium motor, thoughtfully optimized and vented, excels in cooling. Bolstered by a generous 2.5-inch voice coil, the speaker can confidently manage a robust 350 watts of power, effortlessly facilitated by its exceptional cooling system integrated into the motor.

With a noteworthy sensitivity rating of 98 dB 1W/1M, this midbass becomes a formidable source of output, promising an immersive audio experience of outstanding magnitude.


Product Details

BrandPRV Audio
Model8MB700FT-NDY-4
Part Number294-3410
UPC810075521917
Unit of MeasureEach
Weight4.7

Product Specifications

Nominal Diameter8"
Power Handling (RMS)700 Watts
Power Handling (MAX)1400 Watts
Impedance4Ω
Frequency Response70 to 5,600Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)59.6Hz
DC Resistance (Re)3.3Ω
Voice Coil Inductance (Le)0.266mH
Mechanical Q (Qms)3.81
Electromagnetic Q (Qes)0.24
Total Q (Qts)0.22
Compliance Equivalent Volume (Vas)0.881ft³
Mechanical Compliance of Suspension (Cms)0.288mm/N
BL Product (BL)11.3T·m
Diaphragm Mass Inc. Airload (Mms)24.67g
Maximum Linear Excursion (Xmax)3.75mm
Surface Area of Cone (Sd)249cm²

Materials of Construction

Cone MaterialPaper
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

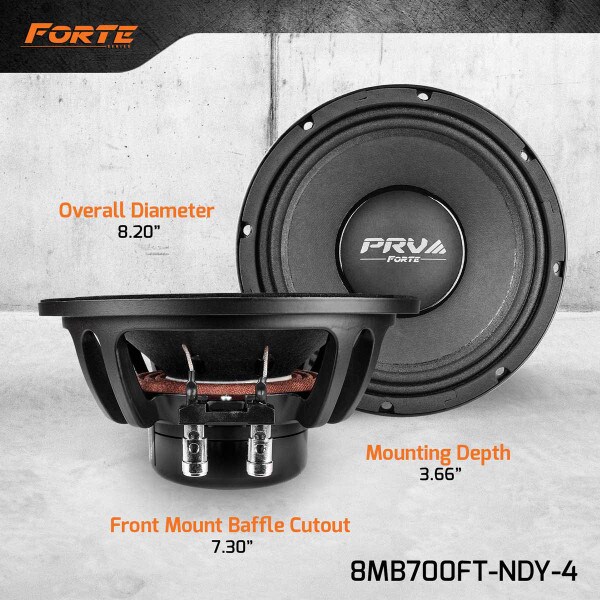

Mounting Information

Overall Outside Diameter8.20"
Baffle Cutout Diameter7.30"
Depth3.66"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume224.5ft³
Sealed F30.0614Hz
Vented Volume141.7ft³
Vented F30.133Hz
