  • PRV Audio 6MR500CF-NDY-4 6" Midrange Neodymium Speaker Pair 4 Ohm

PRV Audio 6MR500CF-NDY-4 6" Midrange Neodymium Speaker Pair 4 Ohm

PRV Audio
Part #294-3139

PRV Audio 6MR500CF-NDY-4 6" Midrange Neodymium Speaker Pair 4 Ohm

PRV Audio
Part #294-3139
Model: 6MR500CF-NDY-4
PRV Audio's 6MR500CF-NDY 6" midrange driver pair was designed for power sports applications, featuring a water-resistant design to ensure optimum performance taking into account the effects of the outdoor environment. The powerful neodymium motor and lightweight carbon fiber cone make this driver extremely efficient and capable of incredible SPL output. These drivers are sold in pairs.
Key Features
  • Water resistant carbon fiber cone and rubber surround to handle the outdoor environment
  • Low inductance for extended frequency response and minimal distortion
  • 96 dB and capable of handling 250 watts RMS for high output capability

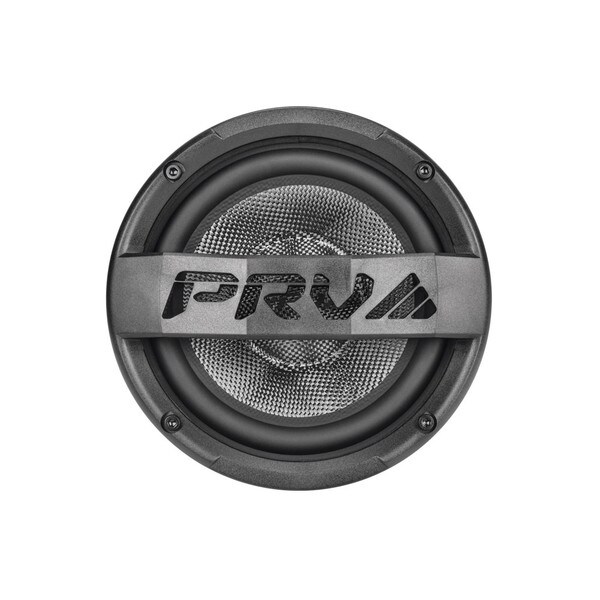

  • Includes rugged grills to protect the drivers cone without affecting frequency response
Your Price: $299.91
+ FREE SHIPPING
MSRP: $374.89
Save $74.98 (20%)
Bulk Pricing
Ships next business day. Details

7In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 6MR500CF-NDY-4 6" Midrange Neodymium Speaker Pair 4 Ohm

PRV Audio 6MR500CF-NDY-4 6" Midrange

Ideal for upgrading your sound system in your boat, UTV, 4-wheeler, or motorcycle

Ideal for upgrading your sound system in your boat, UTV, 4-wheeler, or motorcycle, PRV Audio's 6MR500CF-NDY 6" carbon fiber midrange speaker sets the new standard in vocal reproduction for outdoor applications. Constructed of high-end materials like a carbon fiber cone, high-temperature voice coil, and powerful neodymium motor assembly, this driver produces natural sound with remarkably low distortion.

Key Specs:

  • Nominal Diameter: 6"
  • Power Handling (RMS): 250W
  • Power Handling (MAX): 500W
  • Impedance: 4Ω
  • Frequency Response: 95-11,000 Hz
  • Voice Coil: 2"
  • Sensitivity:  96 dB 2.83V/1m
  • Magnet: Neodymium
  • Cone: Water Resistant Carbon Fiber

Download Spec Sheet


The tailored response of the 6MR500CF-NDY-4 comes from its exotic, yet supremely engineered, carbon fiber cone which delivers the signature PRV Audio combination of depth and accuracy on vocal reproduction. Beyond good looks, this cone is extremely light, surprisingly rigid, and provides excellent damping to keep narrow peaks under control, resulting in an incredibly natural yet accurate sound.

A rubber surround and large flat spider suspend the cone and keep it linear through the limits of excursion with minimal restriction, further improving dynamics and transients. The suspension design of this midrange features the single layer spider which connects to the coil former with premium stitched lead wires.

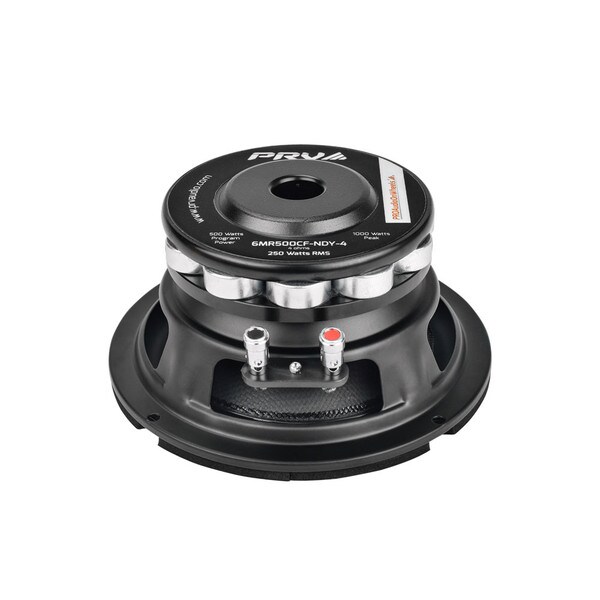

The cone is coupled to a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling. Driving the coil is a magnet that consists of high-power neodymium radial slugs that immerse the voice coil in a strong magnetic field. The bumped back plate, vented magnet system, vented pole piece, and high-temperature voice coil allow for high power handling while protecting this driver from extreme transient power peaks.

You can expect excellent off-axis and transient response from this water-resistant midrange for a great sound stage and realistic sound reproduction.



Built for loud, clear vocal performance in tight, compact spaces, PRV Audio's 6MR500CF-NDY-4 neodymium-powered carbon fiber midrange features a sensitivity of 96 dB (2.83V/1m) and weighs only 3.85 pounds. As always, PRV Audio is dedicated to delivering outstanding pro audio performance to fit all of your motorsports application.

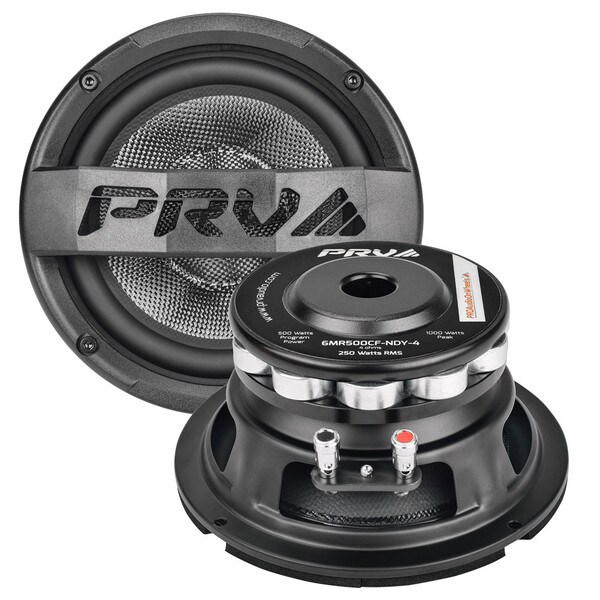

Note: The 6MR500CF-NDY-4 is only sold in pairs. Grills and mounting hardware is included.

Product Details

BrandPRV Audio
Model6MR500CF-NDY-4
Part Number294-3139
UPC619620087577
Unit of MeasurePairs
Weight9.2

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter6.25
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance4Ω
Frequency Response95 to 11,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)92.5Hz
DC Resistance (Re)3.5Ω
Voice Coil Inductance (Le)0.185mH
Mechanical Q (Qms)12.85
Electromagnetic Q (Qes)0.29
Total Q (Qts)0.28
Compliance Equivalent Volume (Vas)0.18ft³
Mechanical Compliance of Suspension (Cms)0.179mm/N
BL Product (BL)10.73T·m
Diaphragm Mass Inc. Airload (Mms)16.49g
Maximum Linear Excursion (Xmax)3.25mm
Surface Area of Cone (Sd)143cm²

Materials of Construction

Cone MaterialCarbon Fiber
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.55"
Baffle Cutout Diameter5.72"
Depth2.91"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Vented Volume0.35ft³
Vented F383.3Hz
