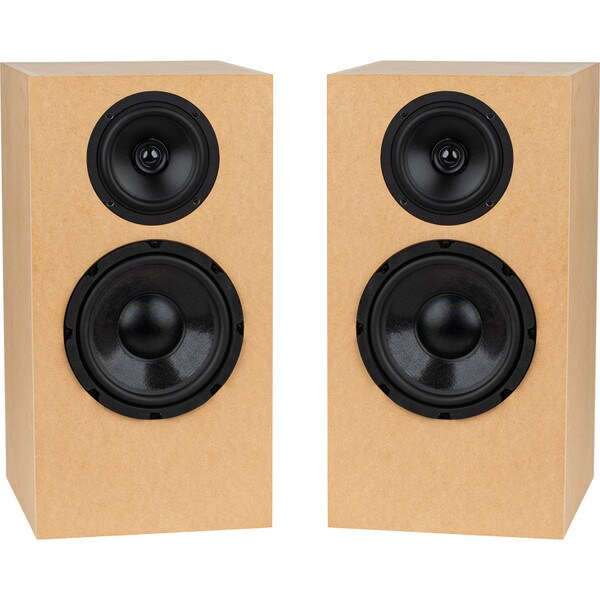

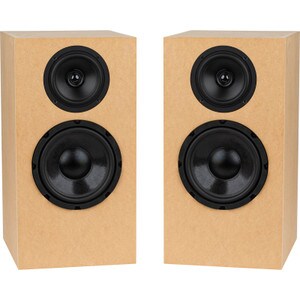

Orian 3-way High Output Bookshelf Speaker Kit Pair With Knock Down Enclosures

Parts Express
Part #300-7186

Orian 3-way High Output Bookshelf Speaker Kit Pair With Knock Down Enclosures

Parts Express
Part #300-7186
Model: Orian Kit Pair
The Orian Bookshelf Speaker will deliver big and spacious sound with powerful output capability. The 5-1/4” coaxial midrange/tweeter uses an open back enclosure to produce an uncolored and natural response while taking advantage of reflections for a wide enveloping soundstage. The high excursion 8” woofers pump out room shaking bass with extension into the lowest octaves. This kit includes everything you need to build a pair of high-output bookshelf speakers, including: knock-down cabinets, drivers, crossover components, damping material, wire, and screws.
Key Features
  • Unique open back midrange eliminates "boxy" coloration and uses reflected sound for wider soundstage
  • Coaxial midrange/tweeter drivers minimize interaction for more consistent on and off-axis response
  • 8" high excursion woofers produce powerful low frequency response even when driven to high SPL
  • Included printed circuit board makes crossover assembly easier than ever
  • ±3 dB from 35 to 20,000 Hz for natural full-range response without the need for a subwoofer

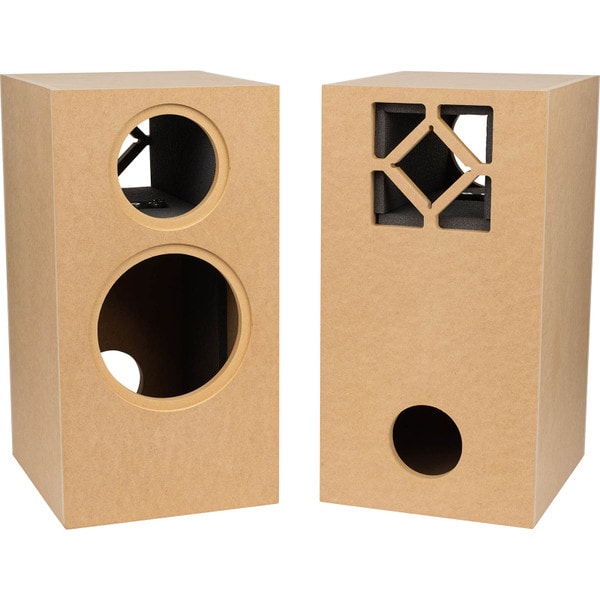

  • Precision CNC cut MDF cabinet panels make the enclosures easy to assemble with minimal tools
  • Includes everything required for open back or damped rear chamber configurations
Your Price: $674.98
+ FREE SHIPPING
MSRP: $959.98
Save $285.00 (30%)
Bulk Pricing
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Orian 3-way High Output Bookshelf Speaker Kit Pair With Knock Down Enclosures

Orian 3-Way High-Output Bookshelf Speaker Kit Pair With Knock Down Enclosures

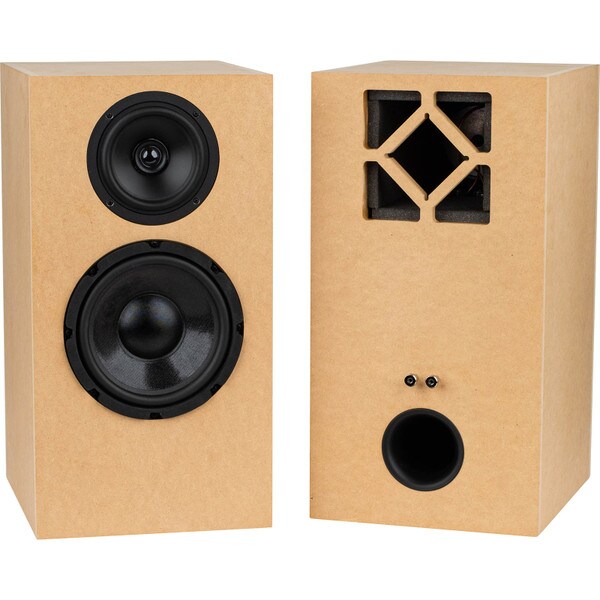

The Orian High Output Bookshelf Speaker Kit’s unique design delivers SPL levels you would normally only expect from larger tower speakers, while creating a spacious soundstage that will put you in the center of the performance. Utilizing an open back midrange enclosure, the Orian takes advantage of reflected sound to produce room filling output.


Features:

  • Unique open back midrange eliminates “boxy” coloration and uses reflected sound for wider soundstage
  • Coaxial midrange/tweeter drivers minimize interaction for more consistent on and off -axis response
  • 8" high excursion woofers produce powerful low frequency response even when driven to high SPL
  • Included printed circuit board makes crossover assembly easier than ever
  • ±3 dB from 35 to 20,000 Hz for natural full-range response without the need for a subwoofer
  • Precision CNC cut MDF cabinet panels make the enclosures easy to assemble with minimal tools
  • Includes everything required for open back or damped rear chamber configurations

Meet the Designer:

Chris Perez

Chris Perez's passion for superior audio kits is surpassed only by his love for imaginative outdoor light displays.

Customer Projects:

Read Audiohiloc's review of the Parts Express Orian Kit here:

https://www.audioholics.com/bookshelf-speaker-reviews/parts-express-orian-3-way

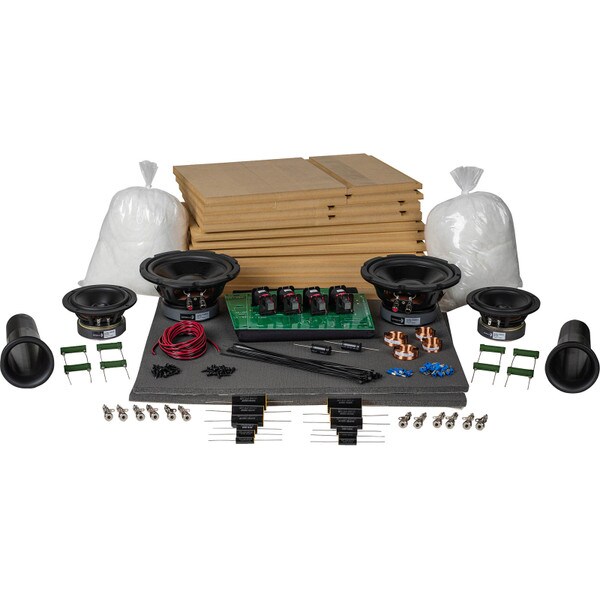

Kit Components:

Part #QTY.Description
999-3862Dayton Audio CX150-8 5-1/4” Coaxial Driver with 1" Silk Dome Tweeter
295-2002Dayton Audio DCS205-4 8” Classic Subwoofer 4 Ohm
027-4122Dayton Audio DMPC-1.5 1.5uF 250V Polypropylene Capacitor
027-4302Dayton Audio DMPC-12 12uF 250V Polypropylene Capacitor
027-4342Dayton Audio DMPC-18 18uF 250V Polypropylene Capacitor
027-4392Dayton Audio DMPC-27 27uF 250V Polypropylene Capacitor
027-4582Dayton Audio DFFC-0.47 0.47uF 400V By-Pass Capacitor
027-4162Dayton Audio DMPC-2.7 2.7uF 250V Polypropylene Capacitor
027-3622125uF 100V Electrolytic Non-Polarized Crossover Capacitor
257-0362Dayton Audio 0.50mH 20 AWG Air Core Inductor Crossover Coil
257-6584 Dayton Audio IC183 3.0mH 18 AWG Laminated Iron Core Inductor
257-0522 Dayton Audio 1.5mH 20 AWG Air Core Inductor Crossover Coil
007-306 DPR20-30.0 30 Ohm 20 Watt Precision Bifilar Resistor
007-402 DPR20-40.0 40 Ohm 20 Watt Precision Bifilar Resistor
-2 Orian (CX 3-way) Crossover Printed Circuit Board Precision CNC cut MDF Knock-down cabinet panels Wire, hardware and other components

Note:Crossover components may be substituted with parts of equal or higher quality depending on available inventory.


Specifications:

  • Power Handling: 150 watts RMS/300 watts max
  • Frequency response: ±3 dB from 37-20,000 Hz (±6 dB from 30- 20,000 Hz)
  • Impedance: 4 Ohm
  • Sensitivity: 83 dB 1W/1m
  • Dimensions: 21” H x 11” W x 13” D

Product Details

BrandParts Express
ModelOrian Kit Pair
Part Number300-7186
UPC848864071299
Weight59.87

Product Specifications

Cabinet Dimensions (HxWxD)21" x 11" x 13"
Cabinet OptionsUnfinished/Unassembled
ColorUnfinished
Configuration3-way
Input Rating4 ohm
Speaker Type3-Way
Woofer Diameter8"
