Morel TM4055-8 2" Midrange and 1-1/8" Tweeter Speaker Plate

13 Questions, 20 Answers or
Morel
Part #287-038

Morel TM4055-8 2" Midrange and 1-1/8" Tweeter Speaker Plate

Morel
Part #287-038
Model: TM4055-8
13 Questions, 20 Answers or

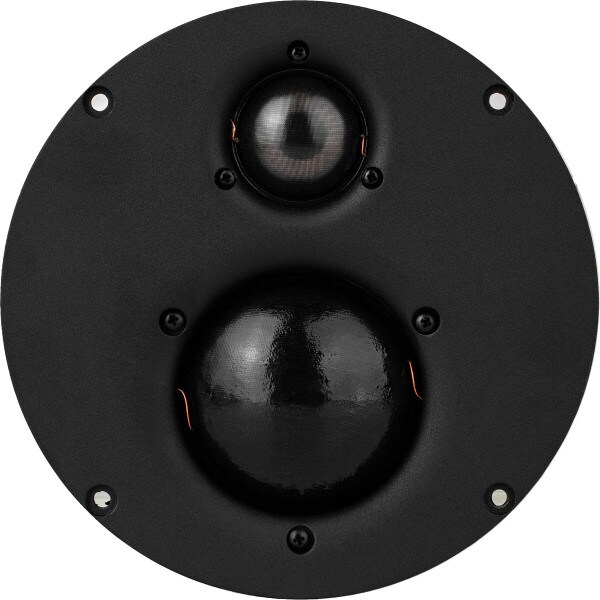

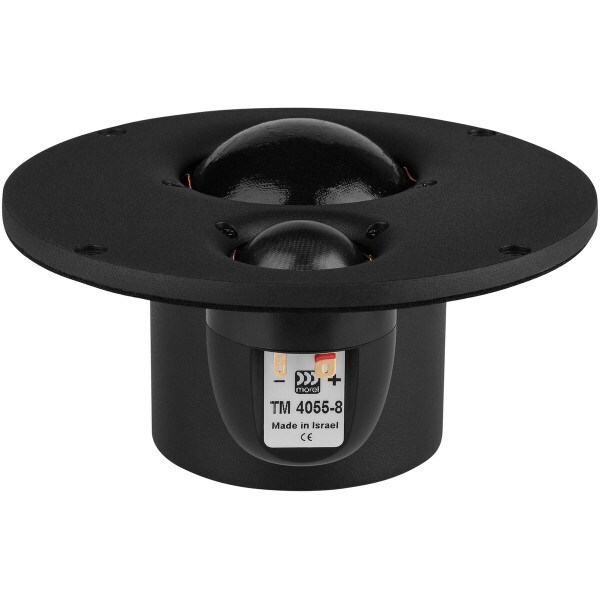

The Morel TM4055-8, lovingly referred to as the TweeMid, is an exquisite pairing of a 2" dome midrange, and a 1-1/8" dome tweeter on an easy to install plate. These drivers are designed to be paired in close proximity to each other, and offer a very flat summed response with excellent on and off axis response.
Key Features
  • Optimized proximity of tweeter and midrange
  • Excellent on and off-axis response
  • Easily allows for horizontal or vertical installation
  • Fits cut outs for Morel 5" woofers
  • Internally damped, aluminum rear chamber
  • 2.1" Acuflex™ hand coated soft dome midrange
Your Price: $242.00
+ FREE SHIPPING
MSRP: $309.99
Save $67.99 (22%)
Bulk Pricing

Back-Ordered

Estimated back in stock 12/6/2024
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel TM4055-8 2" Midrange and 1-1/8" Tweeter Speaker Plate

The Morel TM4055-8, lovingly referred to as the TweeMid, is an exquisite pairing of a 2" dome midrange, and a 1-1/8" dome tweeter on an easy to install plate. These drivers designed to be paired in close proximity to each other and offer a very flat summed response with excellent on and off axis response. The hand coated Acuflex soft dome midrange provides a fantastic blend of articulation and relatively low resonant frequency. The excellent on and off axis response makes choosing a mounting location less imperative than most drivers.

2" Midrange:

Specifications: • Power handling: 200 watts RMS/1000 watts max • VCdia: 2.1" • Le: 0.17 mH • Impedance: 8 ohms • Re: 6.5 ohms • Frequency response: 365-4,200 Hz • Fs: 365 Hz • SPL: 86.5 dB 2.83V/1m • Vas: 0.03 cu. ft. (0.08 liters) • Qms: 0.84 • Qes: 1.32 • Qts: 0.51 • Xmax: 1.0 mm

1-1/8" Tweeter:

Specifications: • Power handling: 120 watts RMS/1000 watts max • VCdia: 1" • Le: 0.07 mH @ 10 kHz • Impedance: 8 ohms • Re: 5.42 ohms • Frequency response: 640-20,000 Hz • Fs: 640 Hz • SPL: 86.5 dB 2.83V/1m • Qms: 1.28 • Qes: 1.55 • Qts: 0.70.

Product Details

BrandMorel
ModelTM4055-8
Part Number287-038
UPC848864056180
Unit of MeasureEach
Weight1.65

Product Specifications

Nominal Diameter2"
Bolt Circle Diameter5.31
Power Handling (RMS)200 Watts
Power Handling (MAX)1000 Watts
Impedance8Ω
Frequency Response365 to 20,000Hz
Sensitivity86.5dB 2.83V/1m
Voice Coil Diameter2.1"

Thiele-Small Parameters

Resonant Frequency (Fs)365Hz
DC Resistance (Re)6.5Ω
Voice Coil Inductance (Le)0.17mH
Mechanical Q (Qms)0.84
Electromagnetic Q (Qes)1.32
Total Q (Qts)0.51
Compliance Equivalent Volume (Vas)0.03ft³
Mechanical Compliance of Suspension (Cms)0.07mm/N
BL Product (BL)5.3T·m
Diaphragm Mass Inc. Airload (Mms)2.5g
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)28cm²

Materials of Construction

Cone MaterialSoft Dome
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.64"
Baffle Cutout Diameter4.76"
# Mounting Holes4
