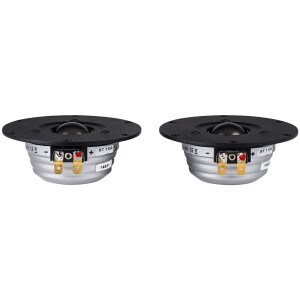

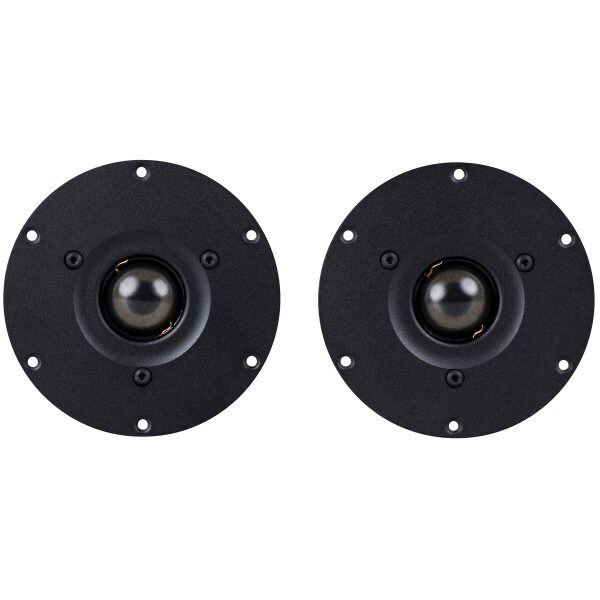

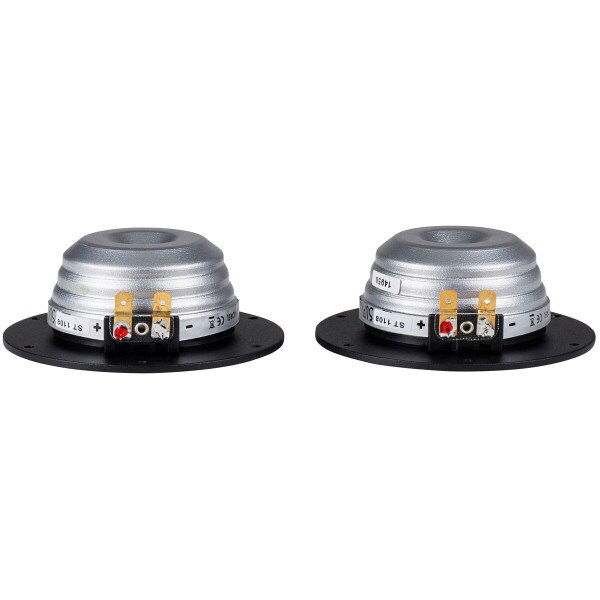

Morel ST 1108 Supreme 1-1/8" Soft Dome Tweeter Pair - Black Faceplate

Morel
Part #277-096

Morel ST 1108 Supreme 1-1/8" Soft Dome Tweeter Pair - Black Faceplate

Morel
Part #277-096
Model: ST 1108
Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance.
Key Features
  • Sold in factory matched pairs
  • 110 mm IDR™ Improved Dispersion Recess aluminum faceplate
  • Flat neodymium motor structure provides maximum flux
  • Hexatech™ voice coil for maximum BL product and power handling
  • Acuflex™ coated dome with the perfect blend of internal damping and rigidity
  • Precisely matched acoustic loading between the dome cavity and rear chamber
Your Price: $672.00
+ FREE SHIPPING
MSRP: $921.99
Save $249.99 (27%)
Bulk Pricing

Back-Ordered

Estimated back in stock 3/7/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details

Overview

Morel ST 1108 Supreme 1-1/8" Soft Dome Tweeter Pair - Black Faceplate

Innovative engineering and an advanced approach to acoustic construction are the reason for Supreme Series tweeters' superior high performance. Their underhung voice coils move in a significantly higher magnetic field and remain there at all times during operation. As a result, the Morel Supreme tweeters provide more linear excursion, eliminate intermodulation distortion, reduce power compression at high levels, and considerably improve low frequency reproduction.

Product Details

BrandMorel
ModelST 1108
Part Number277-096
UPC848864022802
Unit of MeasurePairs
Weight3

Product Specifications

Cone / Dome Diameter1.125"
Cutout Diameter2.95
Tweeter TypeSoft Dome
Power Handling (RMS)220 Watts
Impedance
Frequency Response1,400 to 22,000Hz
Sensitivity91.5dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)680Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)0.09mH

Mounting Information

Overall Outside Diameter4.33"
Depth1.46"
