  • Morel CAT 298 1-1/8" Soft Dome Tweeter

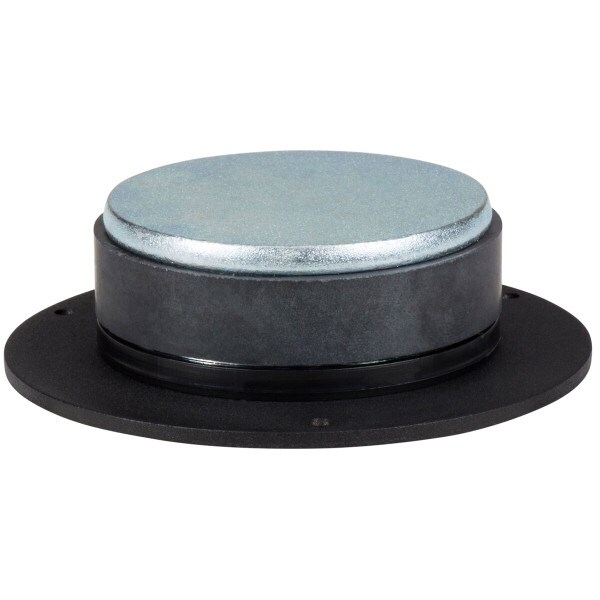

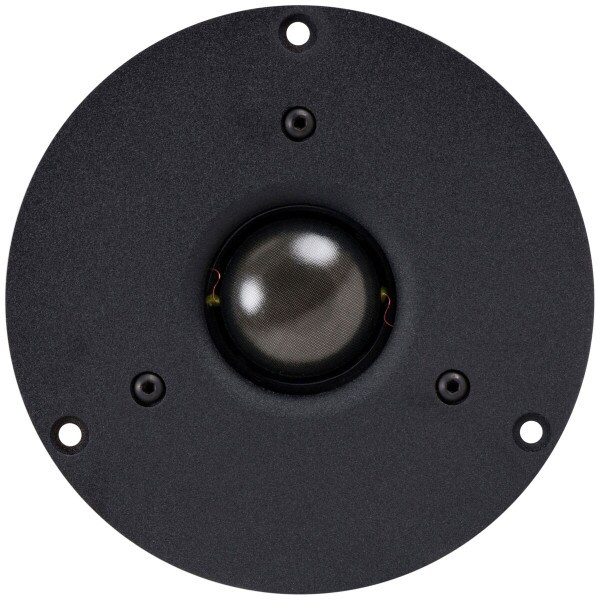

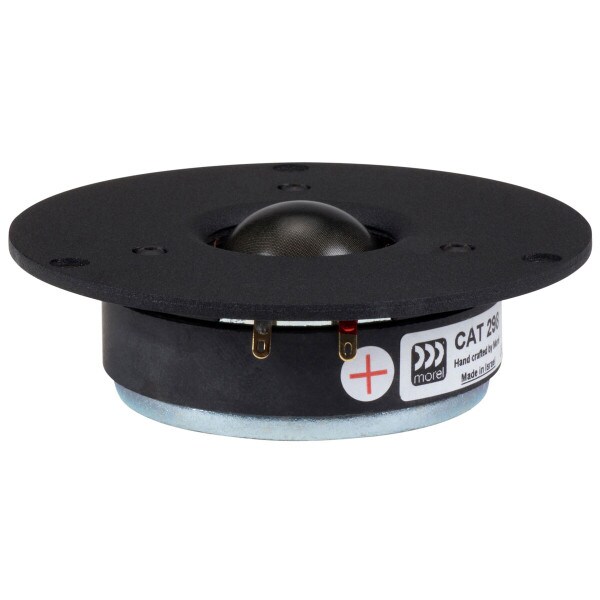

Morel CAT 298 1-1/8" Soft Dome Tweeter

Morel
Part #277-080

Morel CAT 298 1-1/8" Soft Dome Tweeter

Morel
Part #277-080
Model: CAT 298
An updated and more cost effective version of the famous MDT-29 and MDT-33, the CAT298 also features a treated 1-1/8" soft dome, ferrofluid cooling, and aluminum voice coil.
Key Features
  • 104 mm aluminum faceplate
  • Large diameter voice coil
  • Replaceable dome/coil assembly
  • Ferrofluid cooled
  • High power handling
  • Sturdy gold plated input tags
Your Price: $76.00
MSRP: $102.99
Save $26.99 (26%)
Bulk Pricing

Back-Ordered

Estimated back in stock 12/13/2024
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel CAT 298 1-1/8" Soft Dome Tweeter

An updated and more cost effective version of the famous MDT-29 and MDT-33, the CAT298 also features a treated 1-1/8" soft dome, ferrofluid cooling, and aluminum voice coil, but without the double magnet system and damped rear chamber. Very smooth on- and off-axis frequency response. Replacement diaphragm (277-012).

Product Details

BrandMorel
ModelCAT 298
Part Number277-080
UPC844632070747
Unit of MeasureEach
Weight1.45

Product Specifications

Cone / Dome Diameter1.125"
Cutout Diameter2.83
Tweeter TypeSoft Dome
Power Handling (RMS)80 Watts
Impedance8Ω
Frequency Response1,800 to 20,000Hz
Sensitivity90.8dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)900Hz
DC Resistance (Re)5.2Ω

Mounting Information

Overall Outside Diameter4.09"
Depth1.18"
