Mean Well MW SE-600-48 48V 12.5A 600W Regulated Power Supply AC Adapter

Mean Well
Part #320-317

Mean Well MW SE-600-48 48V 12.5A 600W Regulated Power Supply AC Adapter

Mean Well
Part #320-317
Model: SE-600-48
This large 48 Volt DC, 12.5 Amp regulated power supply is capable of supporting amplifiers with up to 600 watts of output. Adjustable 43 to 56 Volts DC output and switchable 90-264 Volts AC input. UL recognized design.
Key Features
  • Supplies up to 600W of power
  • Up to 88% efficient
  • Adjustable output of 43 to 56 VDC
  • UL recognized, regulated output with forced air cooling
  • World compatible 90 to 264 VAC input voltage
Your Price: $128.98
+ FREE SHIPPING
MSRP: $193.99
Save $65.01 (34%)
Bulk Pricing
Quantity:Qty: 1-3 $128.98/ea
Quantity:Qty: 4+$118.66/ea
Order in the next 1 hr 21 min to ship today. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

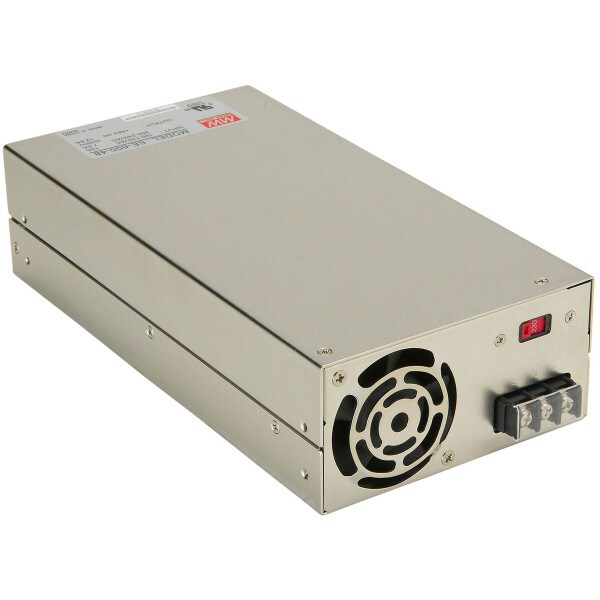

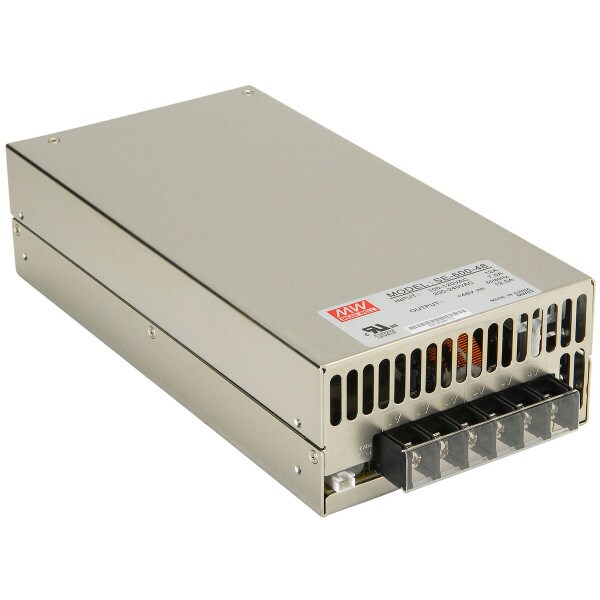

Mean Well MW SE-600-48 48V 12.5A 600W Regulated Power Supply AC Adapter

Large amplifiers require large power supplies, and they don't get much larger than this! With a regulated output of 48 Volts DC (which can be adjusted from 43 to 56 V), and current capacity of 12.5 amps, this power supply is the perfect partner for amplifier boards capable of up to 600 watts of output.

Voltage input can be switched for use with 110 or 240 VAC mains power. Overload, over voltage, and over temperature protection is built-in, shutting down the power supply to prevent damage and then restoring power upon recovery. Forced air cooling regulates temperature internally. Power supply cable and output cable included. UL recognized design.

Note: Minimum recommend power wire gauge is 16 AWG.

Specifications:
• Input power: Switchable between 90-132 VAC and 180-264 VAC, 47-63 Hz
• Current consumption: 12A @ 115 VAC, 7.5A @ 230 VAC
• Output power: 48 VDC, 12.5A
• Adjustable output voltage range: 43-56 V
• Efficiency: 88%
• Dimensions: 9.7" L x 5" W x 2.5" H

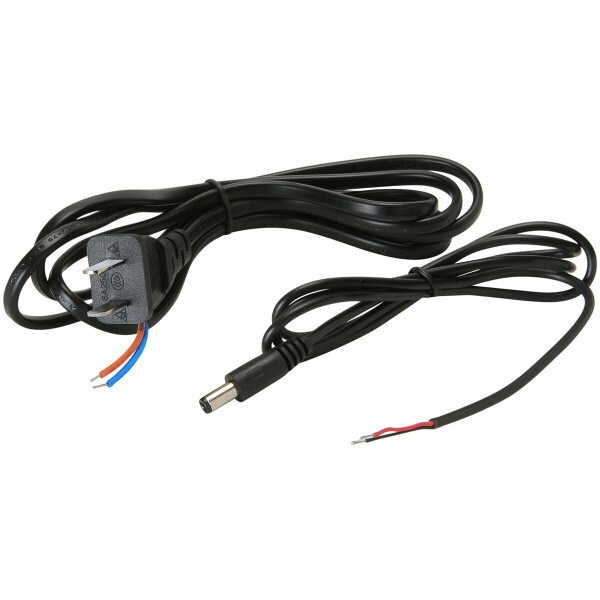

• Includes: 5 ft. AC cord and 3 ft. DC cord with 2.5 x 5.5 mm plug

Product Details

BrandMean Well
ModelSE-600-48
Part Number320-317
UPC844632096747
Unit of MeasureEach
Weight5

Product Specifications

DC Output Voltage48V
Input Voltage110/220 VAC
