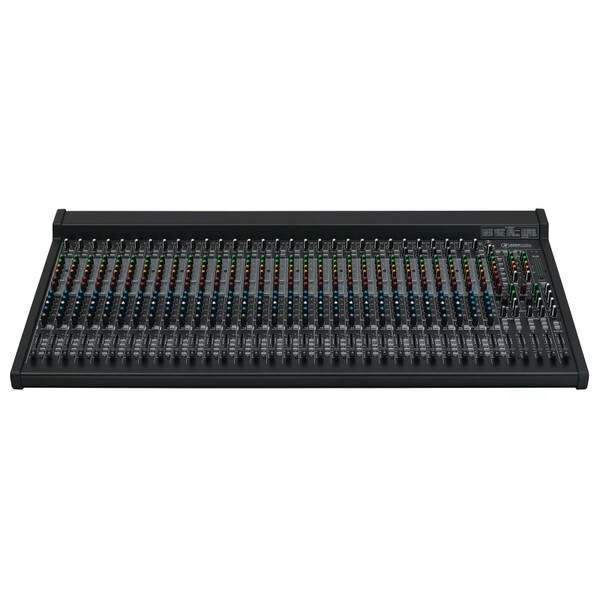

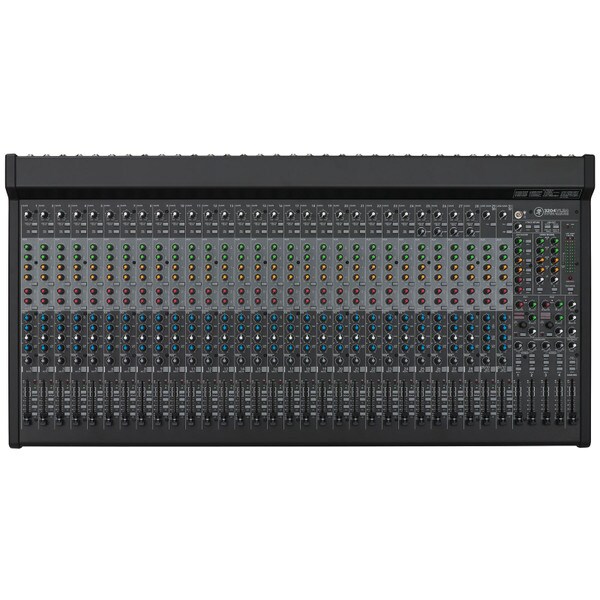

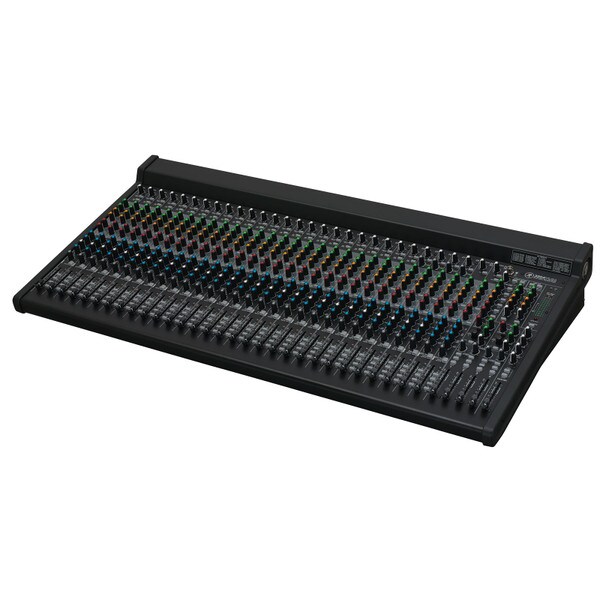

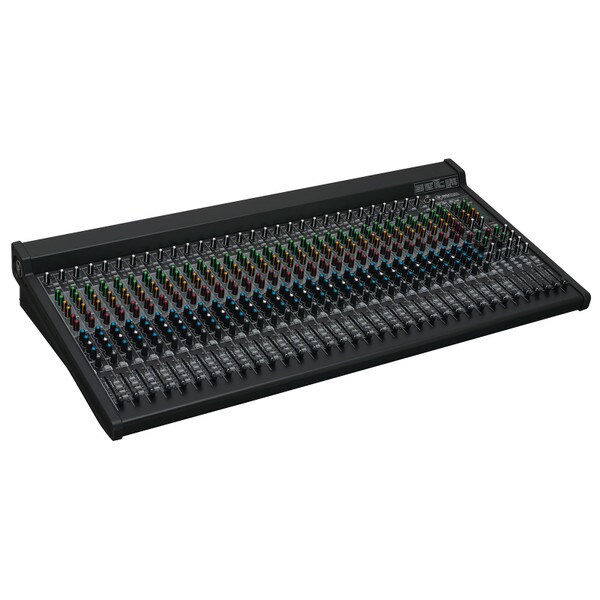

Mackie 3204VLZ4 32-Channel 4-Bus FX Mixer with USB The 32-channel 3204VLZ4 features the proven performance of Mackie's Onyx mic preamps in a high-headroom/low-noise 4-bus design with a feature set perfect for live sound. The 3204VLZ4 features dual 32-bit RMFX+ effects processors each with 24 effects including tap delay. Plus, compression on dedicated channels and subgroups allows for simple, sweet dynamic control. There’s even 4x2 USB connectivity for flexible recording of the show. And, of course, Mackie’s legendary "Built-Like-A-Tank" construction delivers years of reliable use under the most strenuous conditions. The 3204VLZ4 is the premium compact FX mixer solution for anybody serious about performance in a design that’s flexible, rugged and professional.
Features:
• 32-channel 4-bus mixer featuring Mackie signature high-headroom/low-noise design
• 28 boutique-quality Onyx mic preamps
• Ultra-wide 60 dB gain range
• 128.5 dB dynamic range
• +22 dBu line input handling
• Extended frequency response
• Distortion under 0.0007% (20 Hz - 50 kHz)
• Improved RF rejection perfect for broadcast applications
• Phantom power for condenser mics
• Dedicated inline channel compression for critical inputs (ch. 25-28)
• Level, pan, solo and overload/mute LEDs on each channel
• 3-band EQ with sweepable midrange
• 18 dB/oct 100 Hz low-cut filter on mic input channels
• 4 subgroups featuring dedicated inline compressors for total dynamic control
• 6 aux sends with inserts, pre/post fader and internal/external FX send options
• 2 stereo returns and 4 group outs with inserts
• Dual 32-bit RMFX+™ processors featuring 24 "Gig Ready" reverbs, choruses and tap delay for live applications
• Integrated 4x2 24-bit USB interface
• Stream subgroups or master L/R to your PC or Mac for recording
• Use your favorite plug-in live via auxes 5/6
• Convenient stereo return to mains for music playback or return to channel to implement EQ, auxes and more
• PFL/AFL solo modes
• 60mm long-wearing log-taper faders
• High-resolution 12-segment stereo meters
• Sealed rotary control resist dust and grime
• "Built-Like-A-Tank" rugged steel chassis with powder-coat finish
• High-visibility, high-contrast controls deliver convenient "at-a-glance" visual feedback
Specifications:
• Type: Analog
• Channels: 32
• Inputs (mic): 28, Talkback Mic

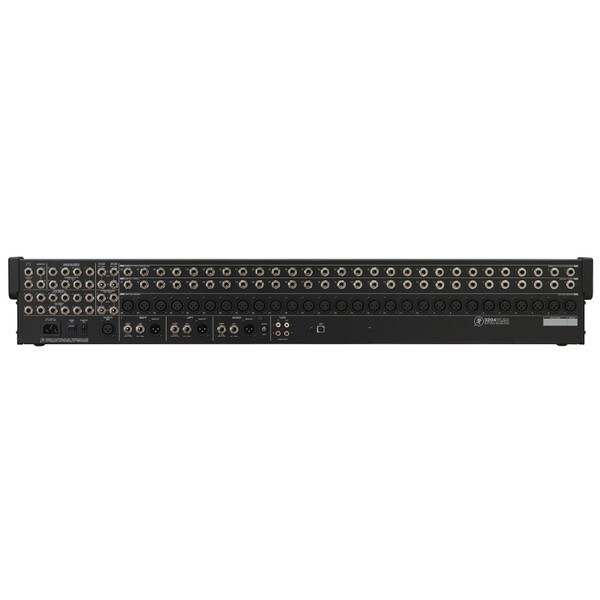

• Inputs (line): TRS x 32, RCA x 2
• Outputs (main): XLR x 3, TRS x 3 (Left / Right / Mono)
• Outputs (other): (Subgroup) TRS x 4, (Monitor) TRS x 3 (L/R/M), RCA x 2
• Channel Inserts: Channels 1-28, Subgroups 1-4, Main L/R/M
• Aux sends: Pre x 2, Pre/Post x 2, Post/FX x 2
• Send/ Return: (Send) TRS x 6, (Insert) TRS x 6, (Return Stereo) TRS x 4
• Headphones: 1/4" x 1
• EQ: 3-band sweepable mid (8 0Hz, 100 Hz - 8 kHz, 12 kHz) w/ low cut filter (100 Hz)
• Compression: Channels 25-28, Subgroups 1-4
• Effects: Dual stereo processors w/ 24 effects
• Phantom power: yes
• Digital Connectivity: USB 2.0 (4 In, 2 Out)
• Dimensions: 38" W x 19.1" D x 6" H
• Weight: 39 lbs.
