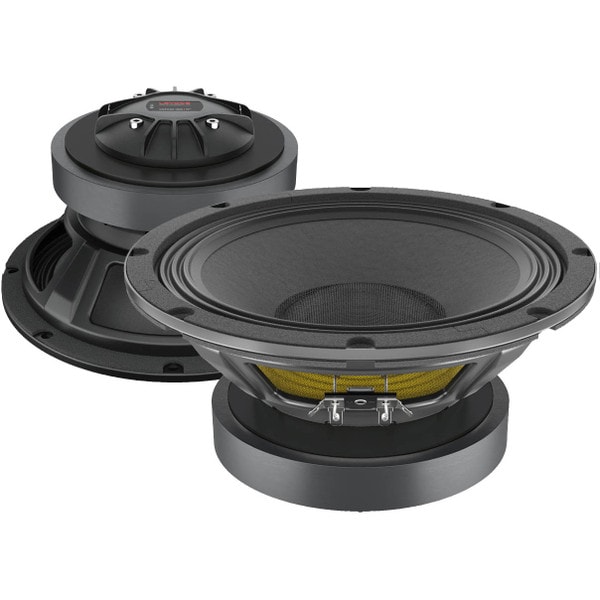

Lavoce CSF082.00K 8" Coaxial Woofer

Lavoce
Part #293-794

Lavoce CSF082.00K 8" Coaxial Woofer

Lavoce
Part #293-794
Model: CSF082.00K

Featuring an 8" cone woofer with an integrated 1" tweeter, the CSF082.00K combines the best of both worlds to provide a harmonious balance between lows, mids, and highs. Experience a seamless transition between frequencies, allowing every note to resonate with exceptional accuracy and naturalness.

Key Features
  • High 96dB sensitivity means this requires minimal power
  • 400 watt program power handling for incredible output from a small driver
Your Price: $169.00
+ FREE SHIPPING
MSRP: $252.24
Save $83.24 (33%)
Bulk Pricing
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Lavoce CSF082.00K 8" Coaxial Woofer

Prepare to be captivated by the CSF082.00K's remarkable performance. With its robust construction and premium materials, this coaxial woofer is built to withstand the test of time while delivering a powerful and immersive sound. Whether you're a music enthusiast or a professional audio engineer, this speaker is a game-changer.

The CSF082.00K is more than just a speaker – it's a masterpiece of engineering. Equipped with advanced technologies, including high-quality voice coils and a precisely engineered magnetic circuit, this woofer ensures optimal performance across the entire frequency range.

Installation is a breeze with the CSF082.00K's user-friendly design. Its compact size allows for easy integration into any speaker system or custom enclosure, making it a versatile choice for car audio installations, home theaters, and professional sound setups. Get creative and elevate your audio experience to new heights.

The Lavoce CSF082.00K 8" Coax is not just a speaker - it's a masterpiece of sound reproduction. Elevate your listening experience and bring your music to life like never before. Immerse yourself in crystal-clear audio and let the powerful bass reverberate through your soul. With the CSF082.00K, every beat is felt, every note is heard, and every moment becomes unforgettable.

Unleash the power of sound with the Lavoce CSF082.00K 8" Coaxial Woofer. Upgrade your audio system today and discover a whole new world of sonic excellence.

Product Details

BrandLavoce
ModelCSF082.00K
Part Number293-794
UPC848864072708
Unit of MeasureEach
Weight7.75

Product Specifications

Nominal Diameter8"
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance
Frequency Response75 to 20,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)76Hz
DC Resistance (Re)5.7Ω
Voice Coil Inductance (Le)0.48mH
Mechanical Q (Qms)3.5
Electromagnetic Q (Qes)0.39
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)0.6ft³
Mechanical Compliance of Suspension (Cms)0.25mm/N
BL Product (BL)11T·m
Maximum Linear Excursion (Xmax)5.3mm
Surface Area of Cone (Sd)217cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.23"
Baffle Cutout Diameter7.30"
Depth4.5"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.26ft³
Sealed F3173Hz
Vented Volume0.75ft³
Vented F368.8Hz
