CLEARANCE Parts Express Speaker L-Pad Attenuator 50W Mono 1" Shaft 8 Ohm

Parts Express
Part #260-255

CLEARANCE Parts Express Speaker L-Pad Attenuator 50W Mono 1" Shaft 8 Ohm

Parts Express
Part #260-255
L-pads adjust the relative volume of drivers connected to them by placing added resistance in series and parallel, keeping impedance a constant 8 ohm load. This L-pad is rated at 50 watts RMS, is designed to be used with 8 ohm loads, features a 1" shaft length, and comes with mounting hardware, faceplate, and knob.
Key Features
  • Easy level adjustment without changing impedance
  • Great for speaker design tweaking
  • Maintains 8 ohm impedance
  • Mounting hardware included

Overview

Parts Express Speaker L-Pad Attenuator 50W Mono 1" Shaft 8 Ohm

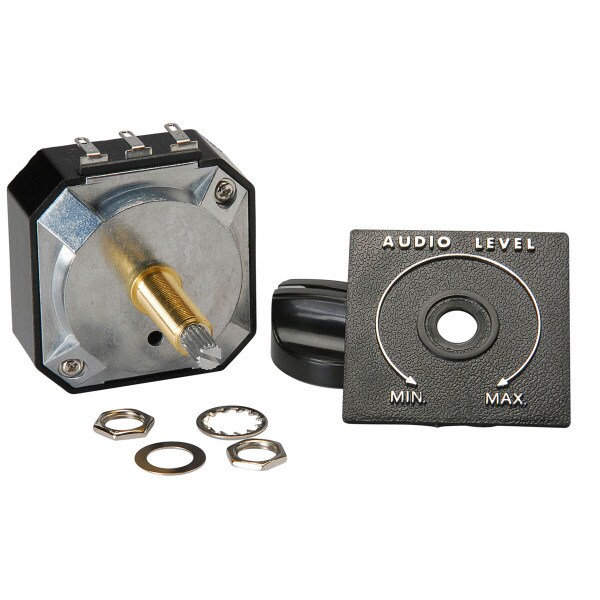

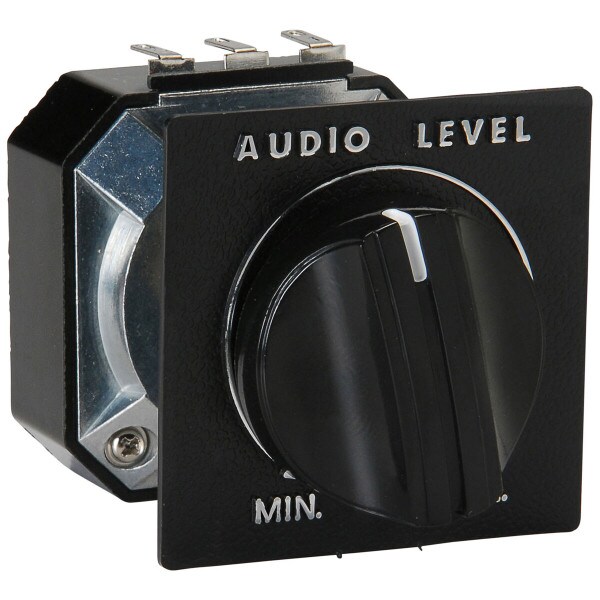

L-pads adjust the relative volume of drivers connected to them by placing added resistance in series. At the same time, a counter-resistance is placed in parallel with the driver to maintain a constant impedance which allows the original crossover design to be used. L-pads are to be placed in between the amplifier and speaker, or in between the crossover and driver. This particular L-pad is rated at 50 watts RMS, is designed to be used with 8 ohm loads, features a 1" shaft length with 2" square body, and comes with mounting hardware, faceplate, and volume control knob.

L-Pad Instruction Diagram

Product Details

BrandParts Express
Part Number260-255
UPC844632017032
Unit of MeasureEach
Weight0.2838
