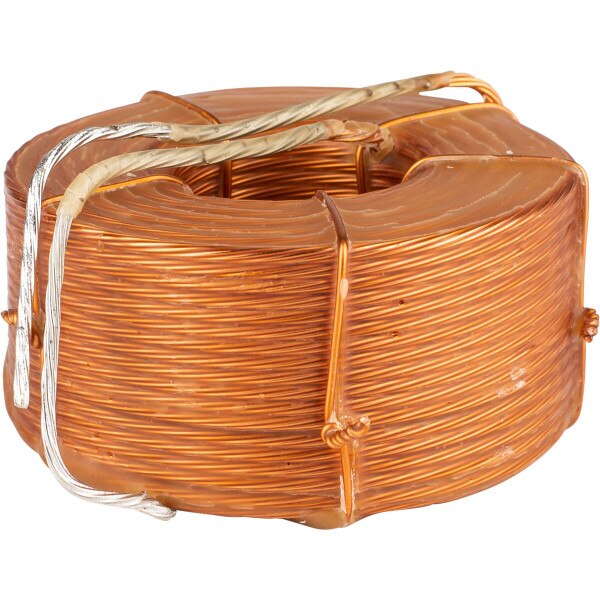

Jantzen Audio 1.30mH 15 AWG Litz Wire Air Core Inductor
Overview
Jantzen Audio's Litz Wire Wax Coil inductors are a true innovation in audio grade inductors. Constructed of 7 strands of 0.5 mm ETP copper, these inductors produce lower skin and proximity effect than equivalent sized coils wound using solid conductors. To hold everything in place, each of these inductors is impregnated with Jantzen Audio's proprietary polymolecular paraffin wax eliminating the possibility of mechanical distortion and any microphonic effects.
Jantzen Audio's part #: 000-L-0130
Specifications: • Inductance: 1.30 mH • Wire gauge: 15 AWG (7 x 0.5 mm conductors) • DC Resistance: 0.41 ohms • Power handling: 400 watts RMS • Tolerance: ± 3.0% • Dimensions: 30 mm H x 65 mm Dia.
