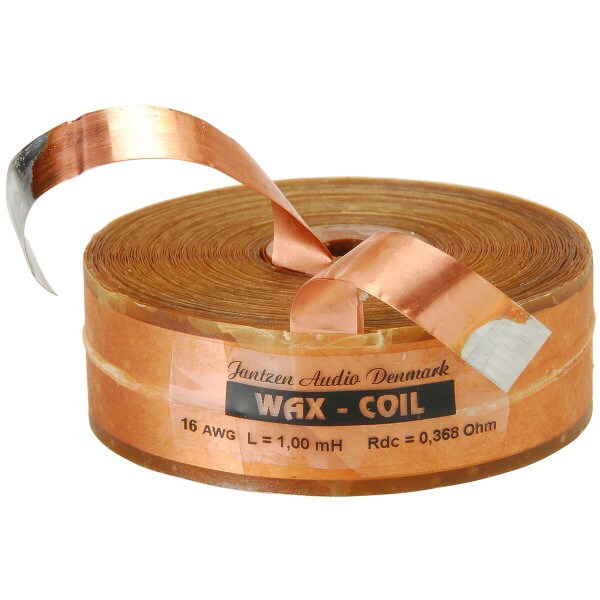

Jantzen Audio 1.0mH 16 AWG Copper Foil Wax Coil Crossover Coil
Overview
The 99.9998% pure copper foil used in Jantzen Audio's Cross Coil Series inductors is the basis for the Wax Coil. Insulated with 60 micron special-quality paper, the foil is precision-wound tightly and impregnated with Jantzen Audio's proprietary polymolecular paraffin wax. This meticulous process eliminates air bubbles that can occur from the use of conventional materials and methods.
Upon curing, the coil becomes completely dense, solid, and incredibly hard, which eliminates unwanted mechanical resonation and guarantees product consistency. After manufacture each coil is tested individually with an Audiomatica CLIO electro-acoustic measurement system. Jantzen Audio p/n 000-8630.
Specifications: • Tolerance: ± 2.0% • Inductance: 1.00 mH • Wire gauge: 16 AWG • DC resistance: 0.368 ohms • Dimensions H. x dia. (mm): 72 x 27 • Power handling: 350 watts RMS for 16 gauge, 500 watts RMS for 14 gauge and 650 watts RMS for 12 gauge.
