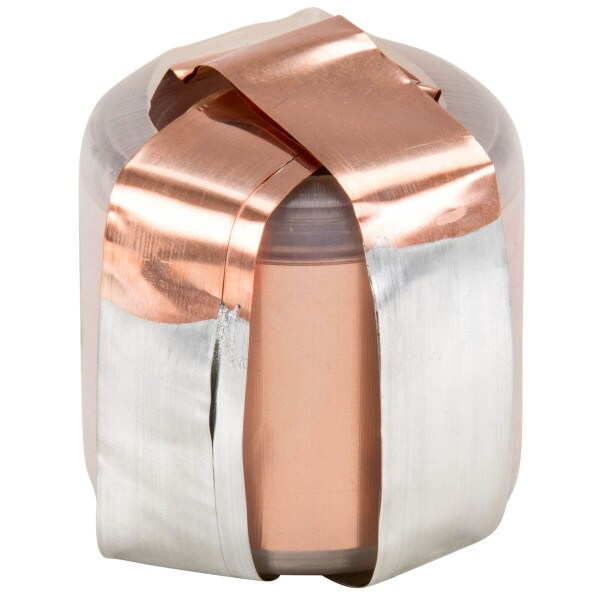

Jantzen Audio 0.11mH 14 AWG Copper Foil Inductor Crossover Coil
Overview
The Jantzen Audio Cross-Coils are premium-quality, audiophile-grade copper foil inductors. They feature 99.99% pure copper foil windings separated by an extremely thin layer of polypropylene film and tightly wrapped around a hardwood core, resulting in very low magnetoshrinkage factor and virtually zero FM distortion. The foil approach outperforms conventional round-wire inductors by providing over 12 times the surface area through which high-frequency electrons can travel, minimizing skin-effect problems and providing consistently low power-distortion figures. Very close to the "ideal inductor" in all respects, every coil goes through a specially developed Jantzen Audio anti-oxidizing treatment and measurement procedure prior to packaging. Jantzen Audio p/n 000-7283.
Specifications: • Tolerance: ± 3.0% • Inductance: 0.11 mH • Wire gauge: 14 AWG • DC resistance: 0.08 Ohms • Dimensions: 1.69" x 1.50" • Power handling: 350 watts RMS for 16 gauge, 500 watts RMS for 14 gauge and 650 watts RMS for 12 gauge.
