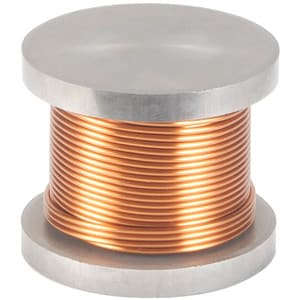

Jantzen Audio 3.3mH 15 AWG P-Core Inductor Crossover Coil
Overview
Jantzen Audio P-Core Series Inductors feature a Permite (ferrous powder) material within the core, which creates significantly lower hysteresis before saturation occurs when compared to ferrite cores. The P-Core Series also features extremely low DCR values and a high power handling capability of 400 watts RMS. Jantzen Audio p/n 000-5229.
Specifications: • Tolerance: ± 5.0% • Inductance: 3.30 mH • Wire gauge: 15 AWG • DC resistance: 0.17 Ohms • Dimensions: 2.16" x 1.80" • Power handling: 400 watts RMS.
