Overview

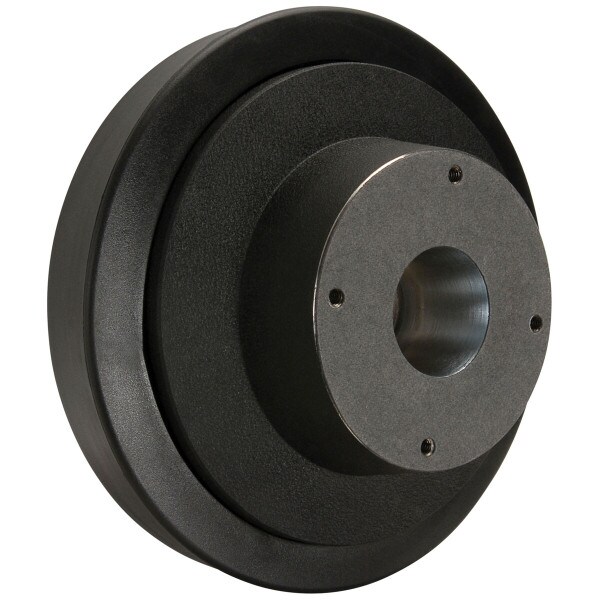

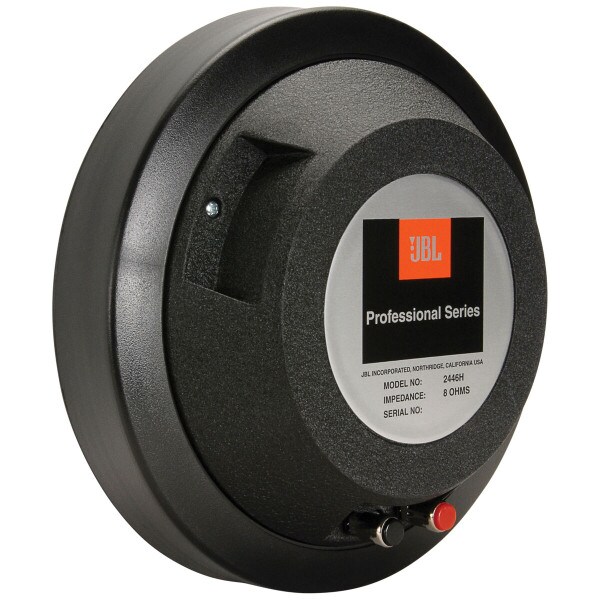

The 2446H is a professional large format compression driver using the newly-developed Coherent Wave™ phasing plug design, high temperature voice coil for extended high power handling capacity and 4" pure titanium diaphragm. Standard 4-hole mounting pattern, 2" exit. Ideal for use with JBL 2382A horn.
Specifications: • 100 watts continuous above 500 Hz, 150 watts continuous above 1 kHz • VCdia: 4" • Frequency range: 500-20,000 Hz • Sensitivity: 111 dB • Dimensions: 9-1/4" dia. x 5-1/4" depth.
