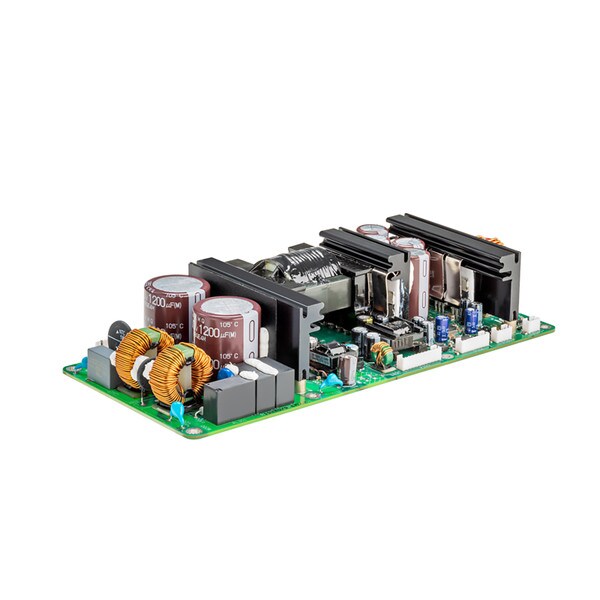

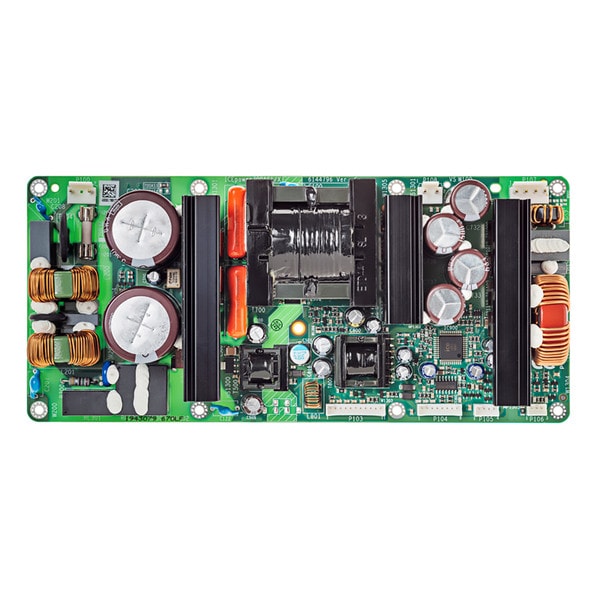

NEW ICEpower 700AS1 Amplifier with Integrated Power Supply 1 x 700W

ICEpower
Part #326-115

NEW ICEpower 700AS1 Amplifier with Integrated Power Supply 1 x 700W

ICEpower
Part #326-115
Model: 700AS2

The 700AS1 is a cutting-edge audio amplifier that brings together the power of an efficient resonant LLC converter and the high-quality performance of a ICEpower class D amplifier. With a total power output of 1 x 700 W, this amplifier is designed to deliver exceptional audio quality while maintaining efficiency. You'll find ICEpower modules used in many prestigious audio brands.

Key Features
  • Class D amplifier and international compatible AC power supply built into one board for cost savings and convenience
  • It's so efficient that it doesn't need a noisy fan to keep it from over heating
  • Built-in circuits for shorts, over-current, and thermal protection
  • High current output stages, designed to comfortably drive any speaker combined load from 2.5 ohms and up
  • 4g vibration rating in all directions makes it perfect for traveling musicians

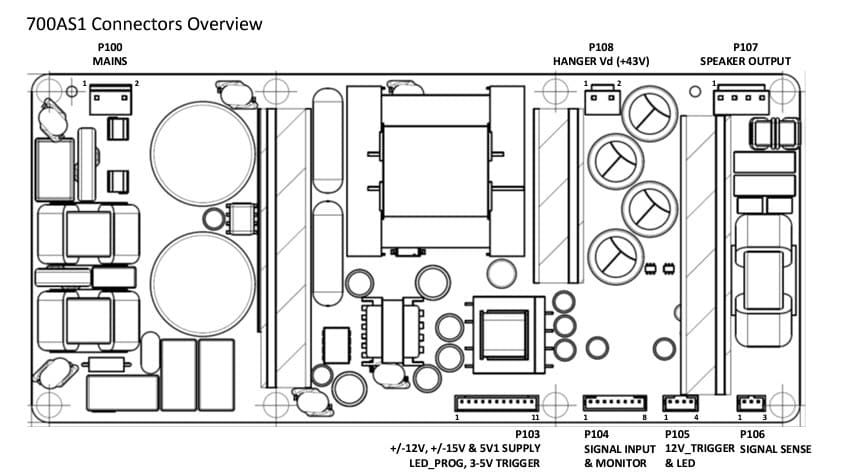

  • Power input and audio sockets for quick installation with ICEpower wiring harnesses (sold separately)
  • Separate power output options for adding additional preamp boards or ICEpower 300A1
NEW $269.98
+ FREE SHIPPING
Bulk Pricing
Order in the next 9 hr 33 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

ICEpower 700AS1 Amplifier with Integrated Power Supply 1 x 700W

All-In-One Fanless AMP & Power Supply Board

The 700AS1 sets a new industry benchmark in audio performance, efficiency, and power density, made possible by adapting the very latest ICEpower technological advances. Its mini size foot print, 1 x 700W, and fanless design creates limitless possibilities for a large active subwoofer that you'll hear and feel. With the optional wiring harness bundle, sold separately, create bass amplifiers, subwoofers, stereo home automation and hi-fi amplifiers as well as industrial applications. Add a Bluetooth receiver board (sold separately) for wireless audio projects. The rugged construction keeps the music playing for years even when moving from place-to-place. There are endless possibilities using this compact, combination power supply 1 x 700W amp board for your next audio project.

>Furthermore, you'll find ICEpower class D amplifier boards used in pro-audio components and are renowned for their exceptional sound quality and efficiency. They provide a clean and accurate audio reproduction, delivering every detail of your music with precision. Whether you're listening to soft acoustic melodies or rocking out to high-energy beats, the 700AS1 will faithfully reproduce the sound, ensuring an immersive audio experience.

ICEpower power supply amp boards are only available in the USA from Parts Express. Parts Express ships out each order the same day if placed before 4 pm EST M-F. This makes it easier than ever to acquire ICEpower amp modules for your projects, and continental USA DIYs and OEMs save money by eliminating international shipping cost.

Note: For best performance us ICEpower 700AS1 wiring harnesses (sold separately).



Specifications: • Power output: 1 x 650W RMS @ 4 ohms 1% THD+N, 20-20,000 Hz • Frequency response: 20-20,000 Hz • Dynamic range: 117 dB • Total efficiency: 84% @ 1 x 700W, 4 ohm • Regulated auxiliary power supply: +/-15V @ 500 mA • Selectable input voltage: 115/230 VAC 50/60 Hz • Maximum output current limit: 30A • Dimensions: 8.66" W x 3.7440" D x 1.58" H (220 x 95 x 40 mm) from the top of the PC board.

Product Details

BrandICEpower
Model700AS2
Part Number326-115
UPC848864077222
Unit of MeasureEach
Weight2.01

Product Specifications

Board Type1 Channel Mono Amp
Power (RMS/Channel 8 ohms)251 - 500 Watts
