ICEpower 1200AS2 ICEedge Based Class D Amplifier Module With Built-In Power Supply 2 x 1200W

ICEpower
Part #326-117

ICEpower 1200AS2 ICEedge Based Class D Amplifier Module With Built-In Power Supply 2 x 1200W

ICEpower
Part #326-117
Model: 1200A S2

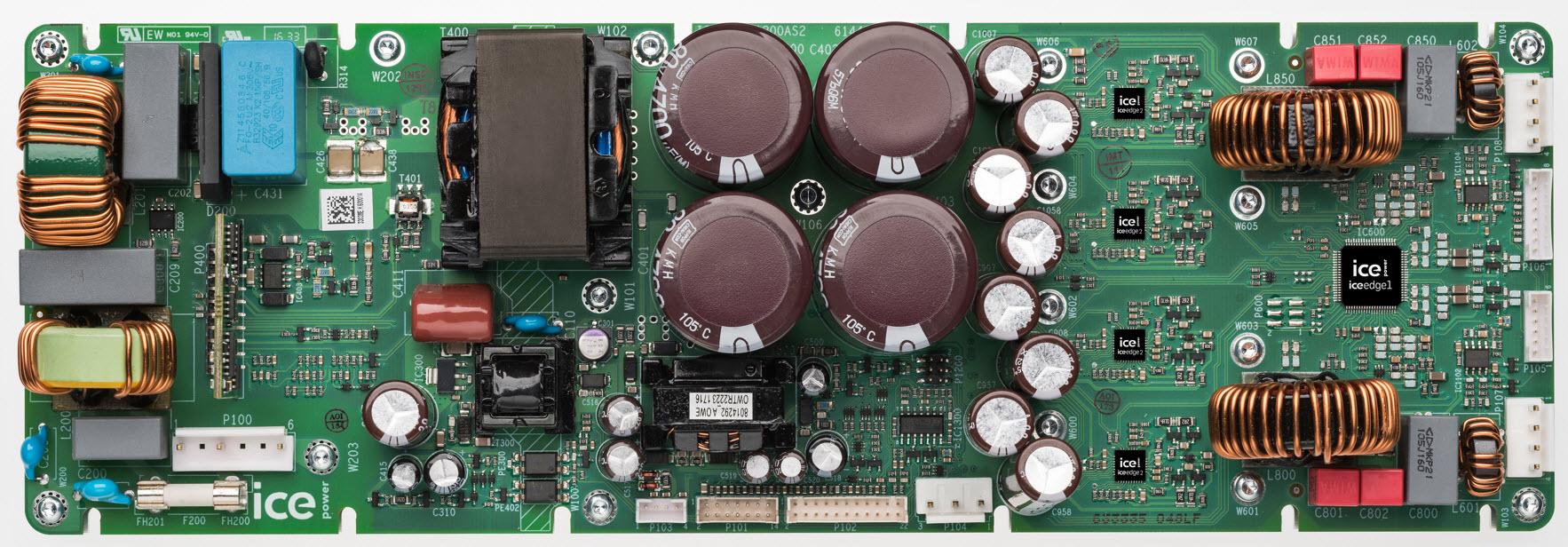

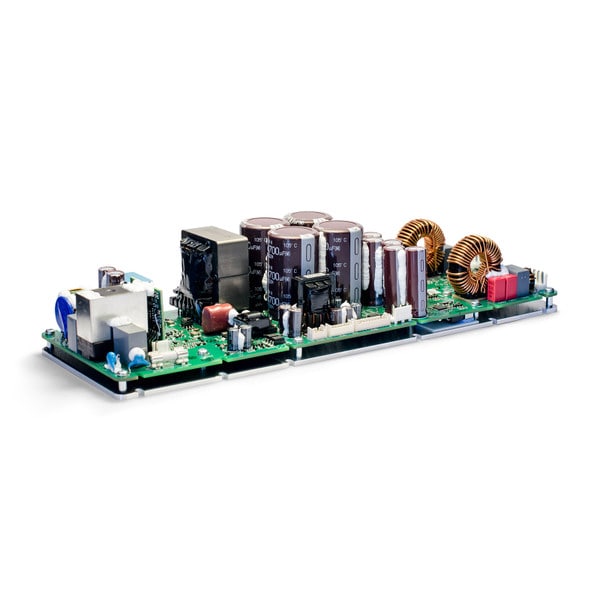

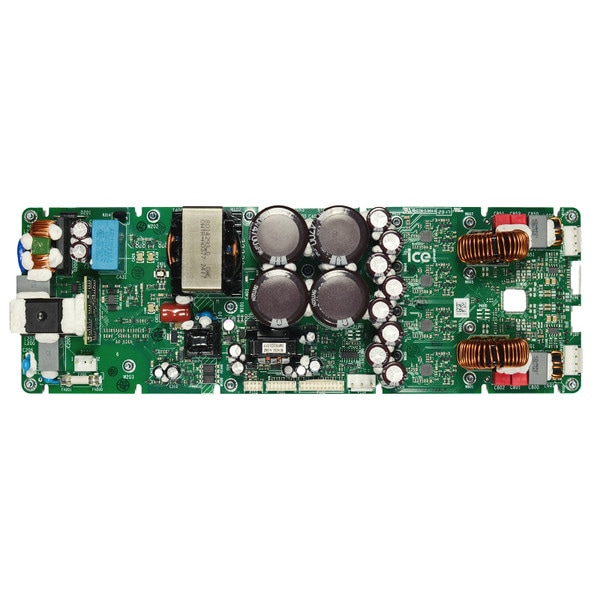

The 1200AS2 is a cutting-edge audio amplifier that brings together the power of an efficient resonant PFC converter and the high-quality performance of an ICEedge based class D amplifier. With a total power output of 2 x 1200 W, this amplifier is designed to deliver exceptional audio quality while maintaining high efficiency.
Key Features
  • ICEedge Class D amplifier and international compatible AC power supply built into one board for cost savings
  • It's so efficient that it doesn't need a noisy fan to keep its high wattage performance from over heating
  • Built-in circuits for shorts, over-current, and thermal protection
  • High current output stages, designed to comfortably drive any speaker combined load from 2.7 ohms and up
  • 2.1g vibration and 40g shock rating in multiple directions makes it perfect for traveling musicians

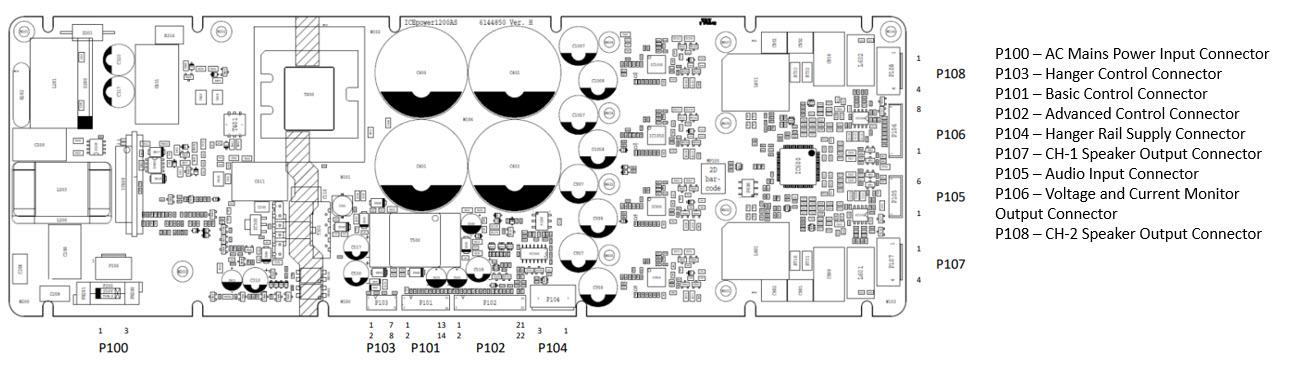

  • Power input and audio sockets for quick installation with ICEpower wiring harnesses (sold separately)
  • Separate power output options for adding additional preamp boards or ICEpower 300A1
Your Price: $369.98
+ FREE SHIPPING
Bulk Pricing

Out of Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

ICEpower 1200AS2 ICEedge Based Class D Amplifier Module With Built-In Power Supply 2 x 1200W

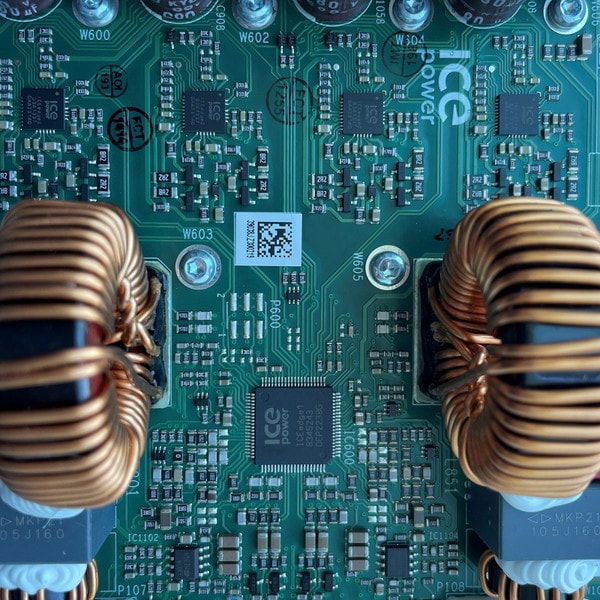

ICEedge Technology Delivers More Wattage with Less Heat

 ICEpower supplies superior audio solutions based on world class technologies and competences within class D amplifiers. ICEedge technology class D chips have advanced the ICEpower amplifier modules to new heights. ICEedge Chips have been added to help ICEpower engineers design even higher wattage amplifier modules that run without cooling fans. With this technology engineers are now able to monitor temperature, current, and voltage output which results in more efficient amplifier boards that produce more wattage output, with less distortion, and less heat.

The 1200AS2 sets a new industry benchmark in audio performance, efficiency, and power density, made possible by adapting the very latest ICEedge technological advances. This enables the 1200AS2 to produce 2 x 1200W, and still have a fanless design and small footprint to add into a large active subwoofer project that you'll hear and feel. Its advanced ICEedge thermal management system ensures that whatever audio project you build, will remain cool even during extended periods of high-power operation.

Onboard Lightweight Power Supply

 Who needs a large, heavy transformer to carry around? What sets the 1200AS2 apart is its built-in efficient resonant PFC converter, which reduces power losses and ensures that more of the energy is used for producing sound, rather than being wasted as heat. This lightweight power supply not only enhances the overall performance of the amplifier but also increases its reliability and lifespan especially when you have ICEedge technology added to the amplifier board.

Furthermore, you'll be finding more ICEedge class D amplifier boards in pro-audio components, because ICEpower is known for their exceptional sound quality and efficiency. ICEedge provides a clean and accurate audio reproduction, delivering every detail of your music with precision. Whether you're listening to soft acoustic melodies or rocking out to high-energy beats, the 1200AS2 will faithfully reproduce the sound, ensuring an immersive audio experience.

Built to Travel

In addition to its impressive power capabilities, the 1200AS2 also features a sturdy 2.1g vibration and 40g shock rating making it a versatile choice for professional traveling musicians. The rugged construction keeps the music playing for years even when moving from place-to-place.

There are endless possibilities using this compact, combination power supply 2 x 1200W amp board for your next audio project. With the optional wiring harness bundle (sold separately) create self-powered PA speakers, active 2- or 3-way studio monitors, stereo audio amplifiers, subwoofer amplifiers, powered subwoofers, or multi-channel rack amplifiers.

So, if you're looking for an amplifier board that combines power, efficiency, and outstanding sound quality, the 1200AS2 is the perfect choice. With its ability to handle low impedances and deliver a solid 1200W per channel, you can unleash the true potential of your high-power audio wishes and enjoy a truly immersive listening experience. Use the 1200AS2 in next your audio DIY project today and elevate your music to new heights. ICEpower power supply amp boards are only available in the USA from Parts Express. Parts Express ships out each order the same day if placed before 4 pm EST M-F. This makes it easier than ever to acquire ICEpower amp modules for your projects, and continental USA DIYs and OEMs save money by eliminating international shipping cost.



Specifications: • Power output: 1 x 1200W RMS @ 4 ohms 1% THD+N, 1kHz • Frequency response: 20-20,000 Hz • Dynamic range: 123 dB • Total efficiency: 80% @ 1200W • Regulated auxiliary power supply: +/-15V @ 500 mA • Selectable input voltage: 115/230 VAC 50/60 Hz • Maximum output current limit: 38A • Dimensions: 12" W x 4" D x 2.5" H (300 x 100 x 63 mm).

Product Details

BrandICEpower
Model1200A S2
Part Number326-117
UPC848864077581
Unit of MeasureEach
Weight2.96

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)501+ Watts
