Hitmaker MT Studio Monitor Speaker Kit with Knock-Down Cabinet

Parts Express
Part #300-7116

Hitmaker MT Studio Monitor Speaker Kit with Knock-Down Cabinet

Parts Express
Part #300-7116
Model: Hitmaker
The Hitmaker 2-way studio monitor kit will deliver the full, balanced, and effortless sound of high-end nearfield monitors for a fraction of the price. Designed by Paul Carmody, this kit includes almost everything you need to build a single high end studio monitor, including: a knock-down cabinet, drivers, crossover components, and damping material.
Key Features
  • Remarkably flat response, ±3 dB from 45-20,000 Hz
  • The Hitmaker delivers an incredible level of detail with precise imaging
  • CNC cut MDF cabinet panels make the enclosure easy to assemble with minimal tools
  • Designed and fine-tuned by expert designer Paul Carmody
Your Price: $134.98
+ FREE SHIPPING
MSRP: $206.95
Save $71.97 (35%)
Bulk Pricing
Order in the next 0 hr 49 min to ship today. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

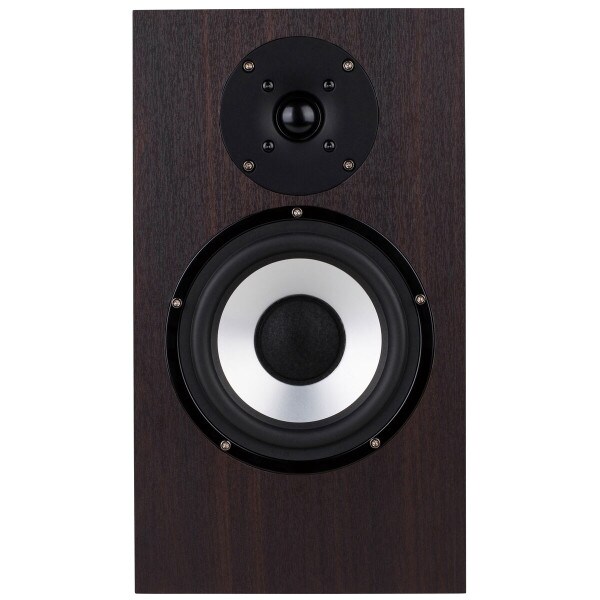

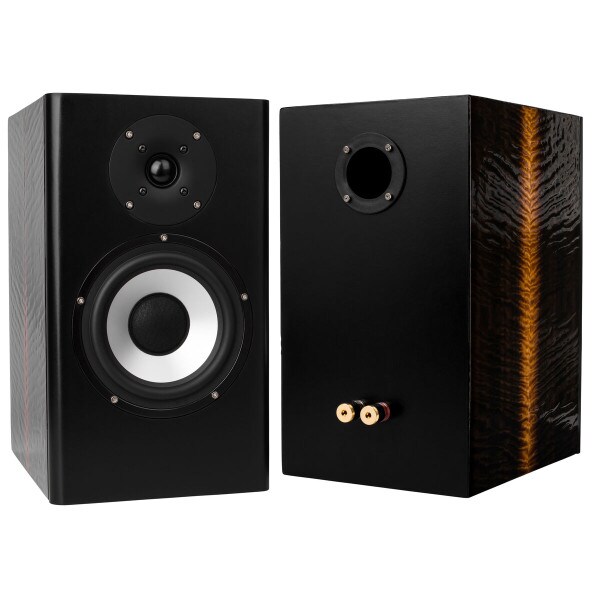

Hitmaker MT Studio Monitor Speaker Kit with Knock-Down Cabinet

Hitmaker MT Studio Monitor Speaker Kit with Knock-Down Cabinet

Paul Carmody designed the Hitmakers as a straightforward DIY speaker that any home recording studio owner can assemble and expect great results. The Hitmakers have just enough resolution and detail for critical listening without becoming fatiguing. Imaging is precise for such a small speaker and the soundstage allows for natural placement of sounds. In addition, the bass extension is deeper than what you get from most nearfield monitors, which might come in handy for some musicians and producers.

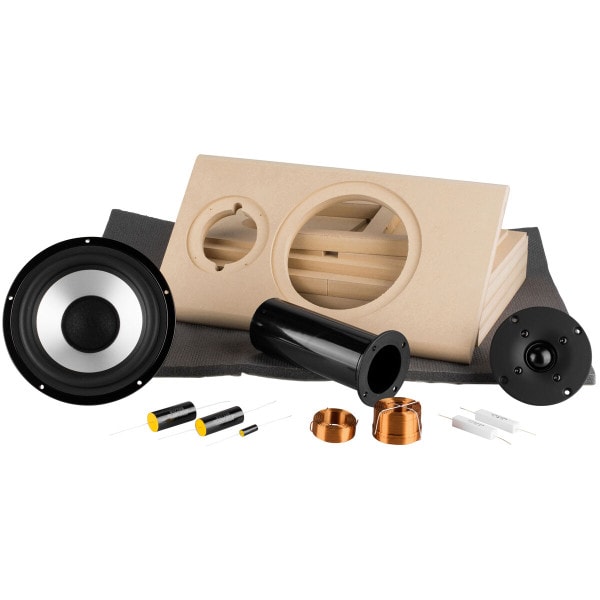

 This kit includes nearly everything you need to build a top-notch speaker in no time flat, including: a knock-down cabinet, drivers, port, damping material, and crossover components.

Features:

  • Remarkably flat response, ±3 dB from 45-20,000 Hz
  • The Hitmaker delivers an incredible level of detail with precise imaging
  • Simple instruction manual makes anybody a speaker builder instantly
  • CNC cut MDF cabinet panels make the enclosure easy to assemble with minimal tools
  • Designed and fine-tuned by expert designer Paul Carmody

Customer Comments:

"Assembly was super easy... Speakers sound amazing and have plenty of bass for near field listening or small rooms." - Chris O ⋆⋆⋆⋆⋆
" These Hitmaker MT speaker kits are a lot of fun to build and they sound great!" - John L  ⋆⋆⋆⋆⋆
" Great design for the price. Quality sound!" - Harrydeo B ⋆⋆⋆⋆⋆
" Fantastic speaker. Balanced, strong, detailed, neutral. Sit close, turn them up and experience what the producer intended." - Allan Hoy J  ⋆⋆⋆⋆⋆

Customer Projects:

About the Driver

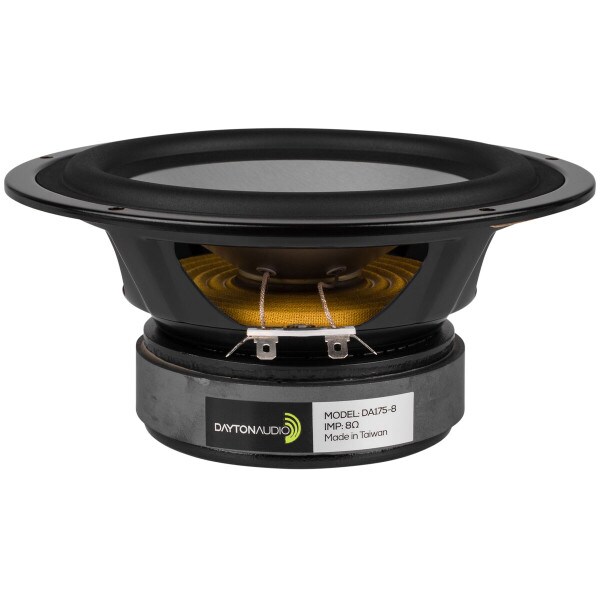

Paul chose the drivers for the Hitmaker due to their low distortion and accurate response. The Dayton Audio DA175-8 7" aluminum cone woofer handles the lower octaves, delivering surprising bass response with incredible accuracy.

About the Tweeters

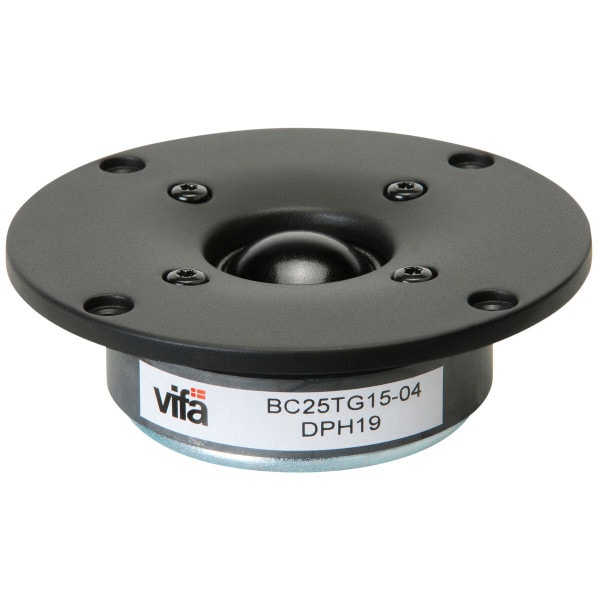

For the top few octaves this kit uses the Peerless by Tymphany BC25TG15-04 1" silk dome tweeter, which is both accurate and detailed without being harsh.

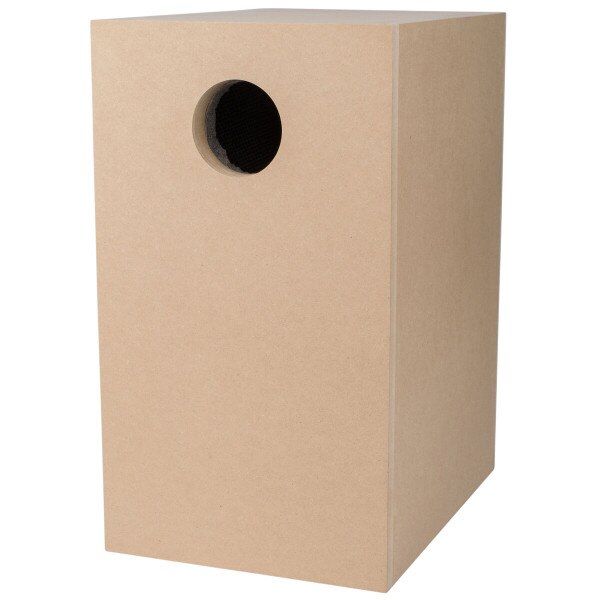

About the Cabinet

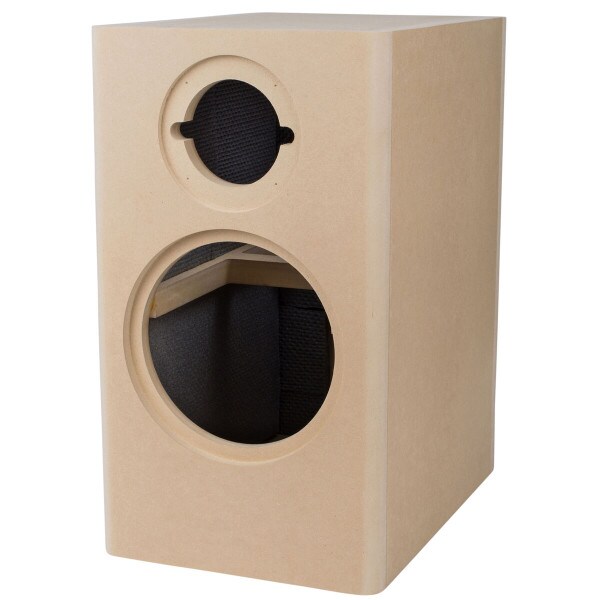

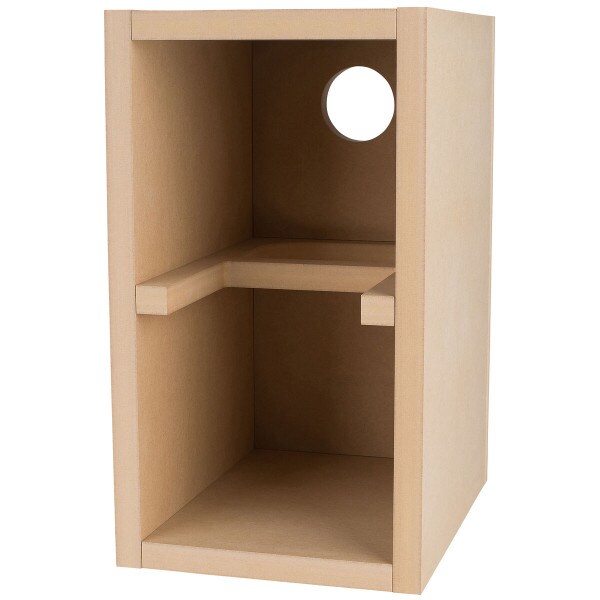

The solid 3/4" MDF enclosure panels are all CNC milled to tight tolerances ensuring easy assembly. The finished enclosure includes a center brace tying all sides together minimizing cabinet resonances. Recesses for flush mounting the drivers and the opening for the port are pre-cut making assembly a snap.

Kit Components:

Part #QTY.Description
027-4241Dayton Audio DMPC-6.8 6.8uF 250V Polypropylene Capacitor
027-4021Dayton Audio DMPC-0.22 0.22uF 250V Polypropylene Capacitor
027-4261Dayton Audio DMPC-8.2 8.2uF 250V Polypropylene Capacitor
255-2241Jantzen Audio 0.40mH 18 AWG Air Core Inductor Crossover Coil
255-2661Jantzen Audio 2.0mH 18 AWG Air Core Inductor Crossover Coil
004-81Dayton Audio DNR-8.0 8 Ohm 10W Precision Audio Grade Resistor
004-2.41Dayton Audio DNR-2.4 2.4 Ohm 10W Precision Audio Grade Resistor
264-10401Peerless by Tymphany BC25TG15-04 1" Silk Dome Tweeter
295-3351Dayton Audio DA175-8 7" Aluminum Cone Woofer
260-3871Speaker Cabinet Port Tube 2" ID Adjustable
260-5201Sonic Barrier 1/2" Acoustic Foam w/PSA 18" x 24"
-1Hitmaker Bookshelf Speaker Knock-Down Cabinet

Note: Screws, binding posts, and speaker wire are not included. This kit includes parts to build a single speaker.

Specifications:

  • Power Handling: 70 watts RMS/140 watts max
  • Frequency response: 45-20,000 Hz
  • Impedance: 8 Ohm
  • Sensitivity: 82 dB 1W/1m
  • Dimensions: 15" H x 8-1/2" W x 11-3/4" D

Product Details

BrandParts Express
ModelHitmaker
Part Number300-7116
UPC848864034690
Weight21.6

Product Specifications

Cabinet Dimensions (HxWxD)15" x 8.5" x 11.75
Cabinet OptionsUnfinished/Unassembled
ColorUnfinished
Configuration2-way
Input Rating8 ohm
Speaker TypeBookshelf
Woofer Diameter7"
