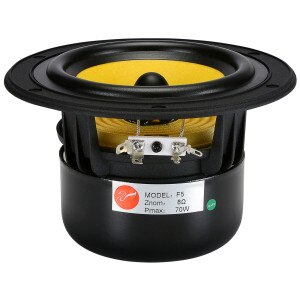

HiVi F5 5" Bass/Midrange

HiVi
Part #297-435

HiVi F5 5" Bass/Midrange

HiVi
Part #297-435
Model: F5
The design of the HiVi F5 has been optimized for dynamic bass reproduction in small vented systems as well as for midrange clarity and accuracy.
Key Features
  • Light and extremely rigid cone made from Kevlar/paper composite
  • High loss rubber surround
  • Shielded double magnet motor structure
  • High power handling Kapton former voice coil
  • High-density aluminum die-cast basket
  • Central phase plug
Your Price: $28.98
MSRP: $43.99
Save $15.01 (34%)
Bulk Pricing
Quantity:Qty: 1-3 $28.98/ea
Quantity:Qty: 4-9 $26.08/ea
Quantity:Qty: 10+$24.63/ea
Order in the next 5 hr 3 min to ship today. Details

34In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

HiVi F5 5" Bass/Midrange

The design of the HiVi F5 has been optimized for dynamic bass reproduction in small vented systems as well as for midrange clarity and accuracy. Its cone weighs less, is more rigid, and has an improved damping factor. The driver utilizes a central phase plug to avoid air compression and internal air volume resonance, as well as improving frequency response and dispersion. The Kapton former voice coil and highly compliant spider contribute to the linear operation of the driver at high power levels. A massive aluminum die-cast basket has been developed to minimize structural resonances, and the shielded magnet structure allows the F5 to be incorporated easily into audio/video applications. The driver will perform superbly in a small box as a bass-midrange unit, especially when a subwoofer is employed. Recommended crossover frequency region for a two-way system design is 2-4 kHz.

Product Details

BrandHiVi
ModelF5
Part Number297-435
UPC844632021299
Unit of MeasureEach
Weight3.31

Product Specifications

Nominal Diameter5"
Power Handling (RMS)35 Watts
Power Handling (MAX)70 Watts
Impedance8Ω
Frequency Response45 to 5,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)52Hz
DC Resistance (Re)6.5Ω
Voice Coil Inductance (Le)0.49mH
Mechanical Q (Qms)4.31
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)0.32ft³
Mechanical Compliance of Suspension (Cms)0.83mm/N
Diaphragm Mass Inc. Airload (Mms)11.5g
Maximum Linear Excursion (Xmax)2.7mm
Surface Area of Cone (Sd)79cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialRubber
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.06"
Baffle Cutout Diameter4.5"
Depth3.84"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.11ft³
Sealed F388.2Hz
Vented Volume0.2ft³
Vented F352.3Hz
