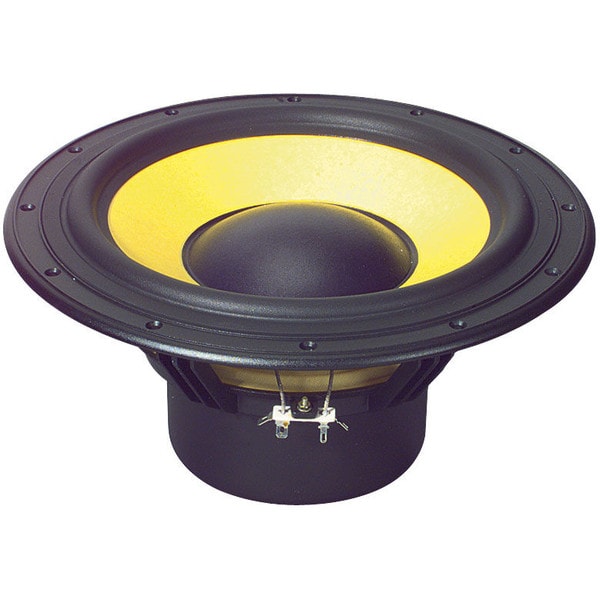

HiVi F10 10" Woofer

HiVi
Part #297-450

HiVi F10 10" Woofer

HiVi
Part #297-450
Model: F10
The HiVi F10's design has been optimized for dynamic low bass performance in a compact or medium size vented enclosure.
Key Features
  • Light and extremely rigid cone made from Kevlar/paper composite
  • High loss rubber surround
  • High power handling polyimide former voice coil
  • Long-throw motor system with extended linear excursion capability
  • High-density aluminum die-cast basket
Your Price: $124.98
+ FREE SHIPPING
MSRP: $163.99
Save $39.01 (24%)
Bulk Pricing
Quantity:Qty: 1-3 $124.98/ea
Quantity:Qty: 4-9 $118.73/ea
Quantity:Qty: 10+$112.48/ea
Order in the next 14 hr 34 min to ship today. Details

Only 4 In Stock

More due any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

HiVi F10 10" Woofer

The HiVi F10's design has been optimized for dynamic low bass performance in a compact or medium size vented enclosure. The F10 utilizes a newly developed matrix of Kevlar and paper fibers. The cone weighs less, is more rigid, and has an improved damping factor. It keeps distortion very low through the woofer's wide frequency and power range. The driver has a vented pole piece to avoid air compression and ensure maximum power handling. The long-throw design provides clean and articulate bass performance at high volumes. A massive aluminum die-cast basket has been developed to minimize structural resonances. Recommended crossover frequency, 300Hz.

Product Details

BrandHiVi
ModelF10
Part Number297-450
UPC844632021329
Unit of MeasureEach
Weight10.14

Product Specifications

Nominal Diameter10"
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance8Ω
Frequency Response28 to 3000Hz
Sensitivity89dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)28Hz
DC Resistance (Re)6.5Ω
Mechanical Q (Qms)5.12
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)2.78ft³
Mechanical Compliance of Suspension (Cms)0.42mm/N
BL Product (BL)16.2T·m
Diaphragm Mass Inc. Airload (Mms)72.6g
Maximum Linear Excursion (Xmax)6mm
Surface Area of Cone (Sd)363cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialRubber
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter11.26"
Baffle Cutout Diameter9.29"
Depth4.41"
# Mounting Holes12

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.78ft³
Sealed F350.8Hz
Vented Volume1.25ft³
Vented F333Hz
