HiVi C6.5 6-1/2" Reinforced Paper Cone Woofer

2 Questions, 2 Answers or
HiVi
Part #297-474

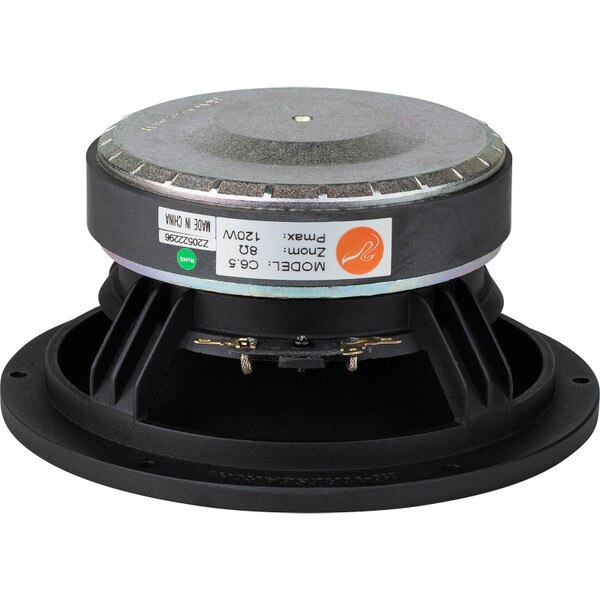

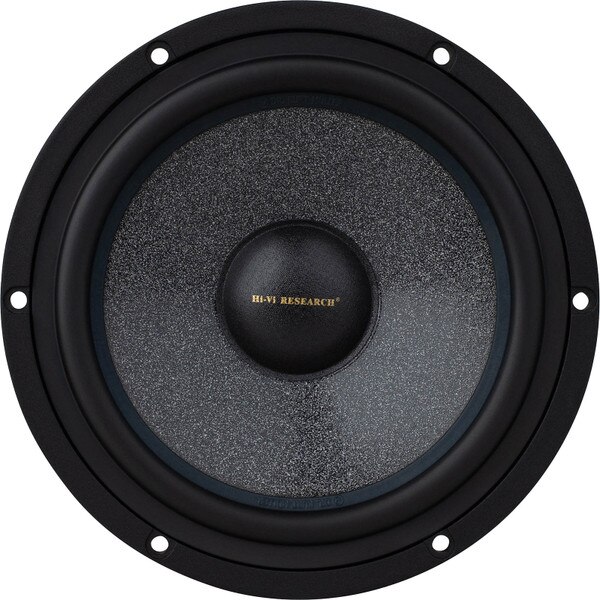

HiVi C6.5 6-1/2" Reinforced Paper Cone Woofer

HiVi
Part #297-474
Model: C6.5
2 Questions, 2 Answers or

The HiVi C6.5 is a 6.5-inch mid-bass speaker engineered for high-fidelity audio systems. It combines premium materials with advanced magnetic design to deliver clean, accurate low-frequency response. Ideal for two-way or three-way systems, it provides smooth performance and exceptional clarity.

Key Features
  • German paper-fiber blend diaphragm for precise, natural sound​
  • High-loss rubber surround absorbs excess vibrations, enhancing clarity​
  • Symmetrical magnetic field technology reduces distortion at high outputs​
  • High-density aluminum frame eliminates harmful resonances, ensuring durability​
  • High-temperature aluminum voice coil supports high-quality bass reproduction​
Your Price: $59.98
MSRP: $129.99
Save $70.01 (54%)
Bulk Pricing
Order in the next 1 hr 33 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

HiVi C6.5 6-1/2" Reinforced Paper Cone Woofer

HiVi C6.5 6-1/2" Reinforced Paper Cone Woofer

The Swan C6.5 mid-bass speaker unit is meticulously engineered to provide audiophiles with exceptional sound quality. Its diaphragm, crafted from a German-imported paper and fiber blend with a marbled surface treatment, ensures natural and accurate sound reproduction. The inclusion of a fatigue-resistant, high-loss natural rubber surround effectively absorbs unwanted vibrations, resulting in clearer audio output.

To minimize distortion during high sound pressure levels, the speaker utilizes HiVi's symmetrical magnetic field (SMD) technology, offering a powerful and linear drive source. The high-density aluminum frame, designed through finite element precision computer simulations, eliminates harmful resonances, contributing to the speaker's structural integrity and longevity. Additionally, the high-power, high-temperature AL voice coil skeleton ensures consistent and high-quality bass performance.

Ideal for use as a low-frequency driver in two-way bass-reflex systems or as a midrange unit in three-way systems, the Swan C6.5 combines advanced materials and innovative design to deliver dynamic and vibrant audio.

Product Details

BrandHiVi
ModelC6.5
Part Number297-474
UPC848864070575
Unit of MeasureEach
Weight5.3

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)60 Watts
Power Handling (MAX)120 Watts
Impedance8Ω
Sensitivity88dB 2.83V/1m
Voice Coil Diameter0.98"

Thiele-Small Parameters

Resonant Frequency (Fs)53Hz
DC Resistance (Re)6.5Ω
Mechanical Q (Qms)2.12
Electromagnetic Q (Qes)0.47
Total Q (Qts)0.38
Compliance Equivalent Volume (Vas)0.47ft³
BL Product (BL)9.09T·m
Diaphragm Mass Inc. Airload (Mms)17.5g
Maximum Linear Excursion (Xmax)4mm

Materials of Construction

Cone MaterialPaper
Voice Coil Wire MaterialAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.85"
Baffle Cutout Diameter5.83"
Depth3.03"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.15ft³
Sealed F3108.4Hz
Vented Volume0.625ft³
Vented F348.5Hz
