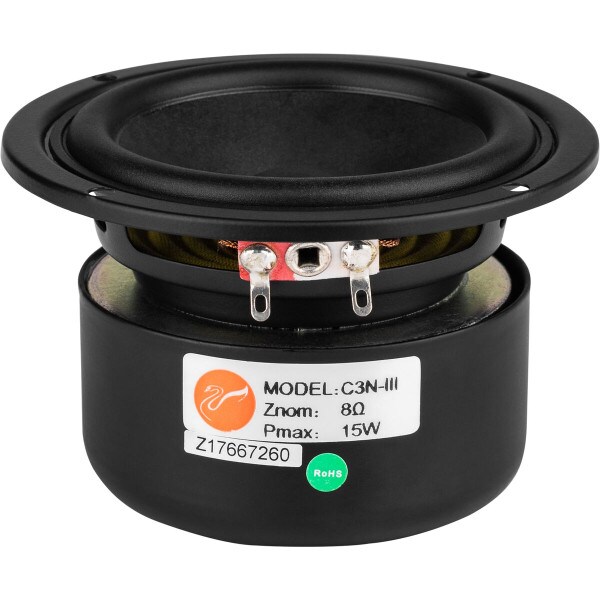

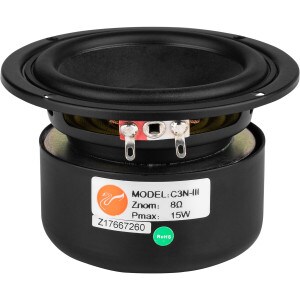

HiVi C3N-III 3" Paper Cone Full-Range Driver

HiVi
Part #297-714

HiVi C3N-III 3" Paper Cone Full-Range Driver

HiVi
Part #297-714
Model: C3N-III
The HiVi C3N-III is a 3" fullrange driver that features a paper cone and a magnetically shielded motor structure.
Key Features

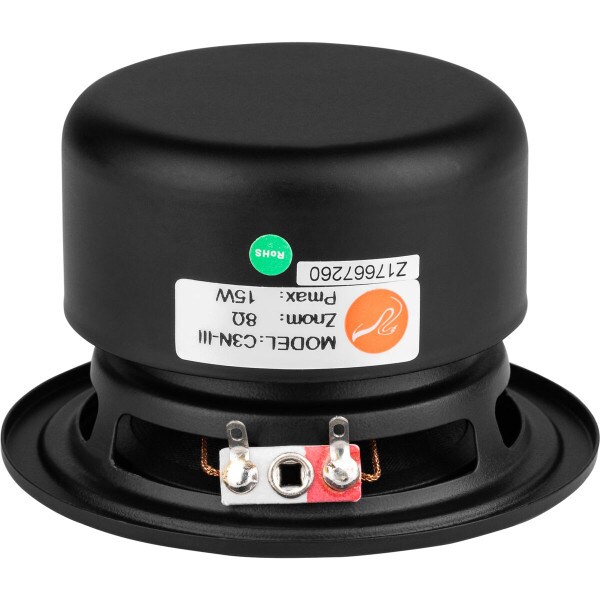

  • Shielded magnet structure

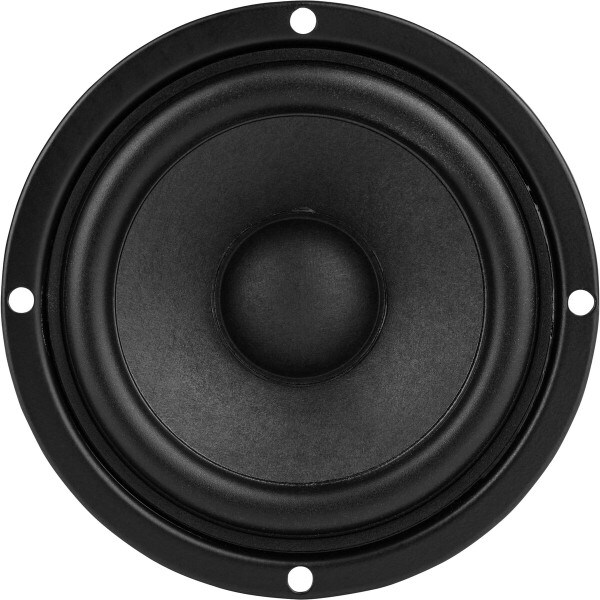

  • Natural paper cone
  • Ideal for small sealed enclosures
  • Common size stamped steel frame
Your Price: $9.49
MSRP: $12.99
Save $3.50 (27%)
Bulk Pricing
Quantity:Qty: 1-3 $9.49/ea
Quantity:Qty: 4+$9.02/ea
Ships next business day. Details

33In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

HiVi C3N-III 3" Paper Cone Full-Range Driver

HiVi's C3N-III is a magnetically shielded 3" paper cone driver. This driver is best used in a small sealed enclosure, and can be used in magnetically sensitive areas.

The ideal frequency bandwidth for this driver would be 100 Hz to 10,000 Hz.

Product Details

BrandHiVi
ModelC3N-III
Part Number297-714
UPC848864055404
Unit of MeasureEach
Weight1.25

Product Specifications

Nominal Diameter3"
Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance8Ω
Frequency Response130 to 15,000Hz
Sensitivity84dB 2.83V/1m
Voice Coil Diameter0.79"

Thiele-Small Parameters

Resonant Frequency (Fs)130Hz
DC Resistance (Re)6.5Ω
Mechanical Q (Qms)3.86
Electromagnetic Q (Qes)1.27
Total Q (Qts)0.96
Compliance Equivalent Volume (Vas)0.03ft³
Mechanical Compliance of Suspension (Cms)0.729mm/N
BL Product (BL)2.98T·m
Diaphragm Mass Inc. Airload (Mms)2.057g
Maximum Linear Excursion (Xmax)2.55mm
Surface Area of Cone (Sd)0.003cm²

Materials of Construction

Cone MaterialPaper
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.55"
Baffle Cutout Diameter2.65"
Depth2.05"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.06ft³
Sealed F3125.4Hz
Vented Volume0.12ft³
Vented F394.8Hz
