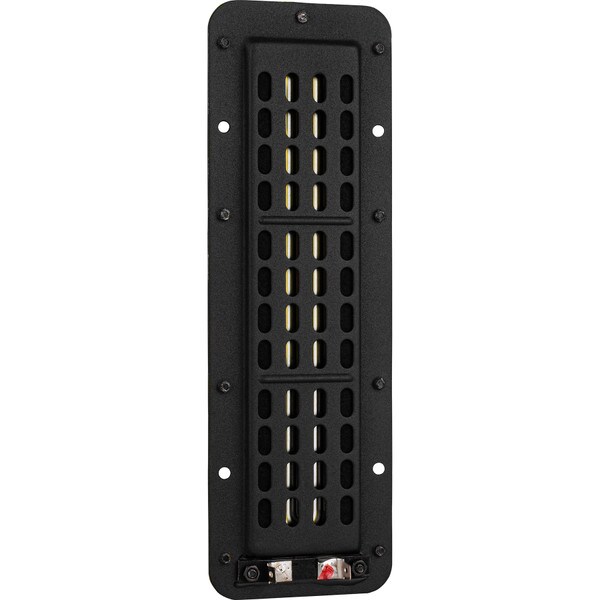

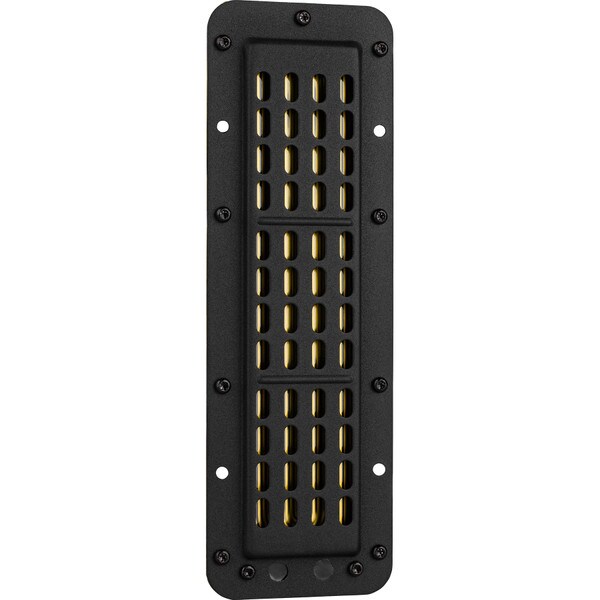

GRS PT6816-8 8" Planar Slim Tweeter 8 Ohm

GRS
Part #272-128

GRS PT6816-8 8" Planar Slim Tweeter 8 Ohm

GRS
Part #272-128
Model: PT6816-8
Capable of delivering wide bandwidth with low distortion, the GRS PT6816-8 open back planar driver has the ability to perform well from upper midrange to the highest frequencies. With an extremely lightweight diaphragm and a neodymium motor system, this driver is capable of excellent transient response with amazing dynamics. The open back construction produces true dipole radiation which is ideal for use in open baffle designs. With a narrow footprint and minimal flange, the PT6816-8 is also ideal for line array use.
Key Features
  • Extremely low mass diaphragm provides excellent transient response and accuracy
  • Narrow design to deliver excellent off axis consistency
  • Multiple neodymium magnets in push pull arrangement for incredible control and low distortion
  • Open back delivers true dipole radiation making this driver ideal for open baffle line array designs
  • Linear impedance simplifies crossover design
  • Shallow mounting depth for use in low profile designs
  • Custom mounting faceplate available
Similar items that may interest you:
Your Price: $49.98
+ FREE SHIPPING
MSRP: $71.99
Save $22.01 (31%)
Bulk Pricing
Quantity:Qty: 1-3 $49.98/ea
Quantity:Qty: 4+$44.98/ea
Ships next business day. Details

In Stock

Free Shipping available on orders over $49.00 in the US. Details

Overview

GRS PT6816-8 8" Planar Slim Tweeter 8 Ohm

GRS PT6816-8 8" Planar Slim Tweeter 8 Ohm

Designed to deliver high efficiency with extremely smooth response.

With wide dispersion capabilities and minimal mounting flange, the PT6816-8 is an excellent choice for use in high output line arrays. The open-back design gives this tweeter true dipole radiation making it the perfect choice for use in open baffle speaker designs.


Key Specs:


  • Tweeter Type: Planar Magnetic
  • Power Handling (RMS): 35 Watts
  • Power Handling (MAX): 70 Watts
  • Impedance:
  • Frequency Response: 500 - 20,000 Hz
  • Sensitivity: 94dB 2.83V/1m
  • Diaphragm Material: Polyethylene Naphthalate

Full SpecificationsManual

Frequency Response & Impedance

Thanks to a lightweight damped polyimide diaphragm that is driven by 18 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and wide bandwidth. The almost linear 6.4 ohm impedance makes crossover design simple and minimizes the number of components required to achieve your required roll off.

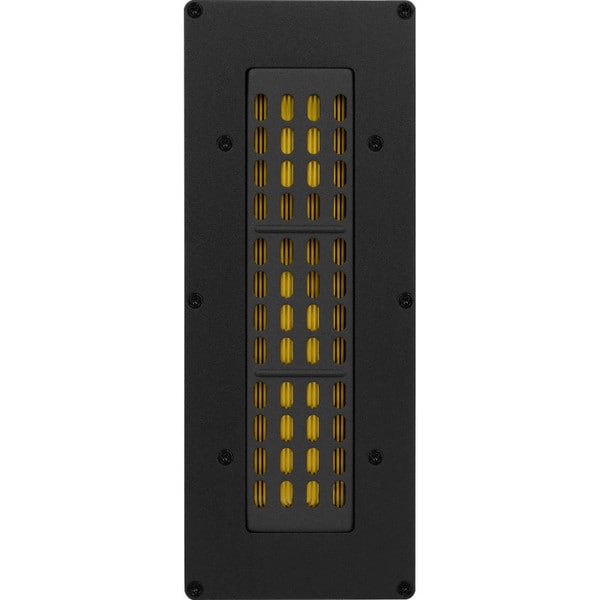

Optional Faceplate Available

Add the final touches to any build that uses the PT6816-8 with the optional faceplate! When the tweeter is attached to the faceplate, the resulting shape is easier to flush mount into your speaker baffle, creating a clean aesthetic and reducing diffraction.

Buy Now!

Shop all GRS Planar Tweeters and Faceplates

GRS Planar Tweeters provide great transients, and frequency response at the fantastic value you expect from GRS



GRS PT2522-4

Nominal Impedance: 4ohm
Frequency Response: 1800-20kHz
Buy Now

GRS PT6825-8

Nominal Impedance: 8ohm
Frequency Response: 250-20kHz
Buy Now

GRS PT6816-8

Nominal Impedance: 8ohm
Frequency Response: 320-20kHz
Buy Now

GRS PT5010-8

Nominal Impedance: 8ohm
Frequency Response: 200-8kHz
Buy Now


GRS PT2522-FP Face Plate for PT2522-4 and PT2522C-4

Buy Now

GRS PT6825-FP Face Plate for PT6825-8 Planar Tweeter

Buy Now

GRS PT6816-FP Face Plate for PT6816-8 Planar Tweeter

Buy Now

GRS PT5010-FP Face Plate for PT5010-8 Planar Tweeter

Buy Now





Product Details

BrandGRS
ModelPT6816-8
Part Number272-128
UPC848864061245
Unit of MeasureEach
Weight0.8

Product Specifications

Cutout Diameter6.89" x 1.65
Tweeter TypePlanar
Power Handling (RMS)30 Watts
Impedance
Frequency Response320 to 20,000Hz
Sensitivity94dB 2.83V/1m

Thiele-Small Parameters

DC Resistance (Re)6.4Ω
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)6.19
Total Q (Qts)4.57

Mounting Information

Overall Outside Diameter7.875" x 2.56"
Depth0.47"
