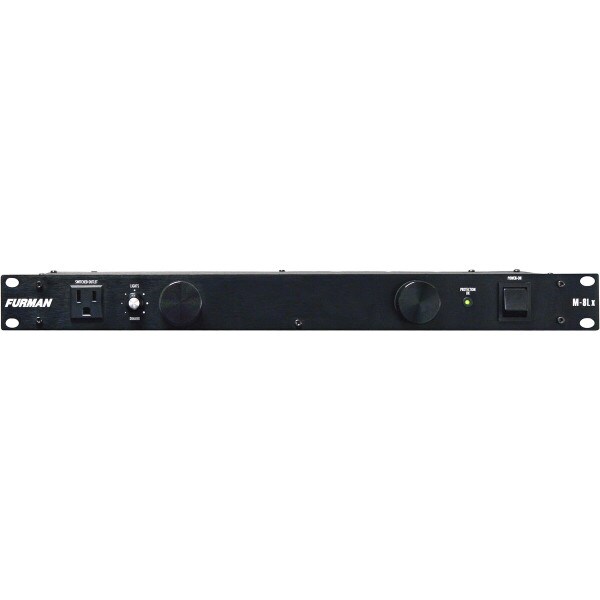

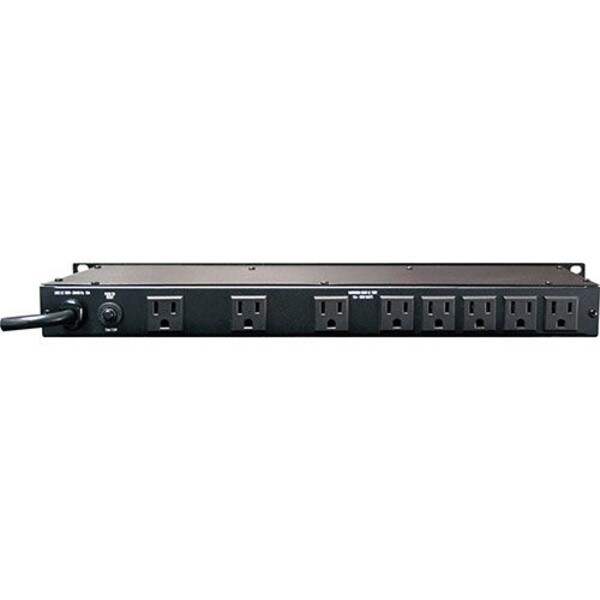

Furman M-8Lx Power Conditioner with Lights 15AA Merit Series Power Conditioner is the perfect low-cost AC power solution for any rack mount system. Install an M-8Lx into the top slot of your rack, and the eight switched outlets in the rear panel will power up and protect all your equipment up to a 15-amp load. The M-8Lx features two slide out, swiveling light fixtures to provide discreet illumination of your equipment on stages, in studios, and in other dark places. A dimmer knob lets you adjust the lamp brightness to just the right level.
Specifications: • Maximum output current: 15 amps • Line cord: 6 ft., captive, 14 AWG, with 3-conductor Edison plug • Lamps: two 120V incandescent bulbs, 4 watts each • Operating voltage: 120 VAC, 60 Hz • Spike protection mode: Line to neutral • Energy dissipation: 170 joules • Peak impulse current: 12,000 amps • Maximum continuous operating voltage: 130 VAC RMS • Let-through voltage (@ 125 amps, 8/20uS waveform): 400 volts • Noise attenuation: Transverse mode: >23 dB, 200 kHz to 10 MHz • Dimensions: 1.75" H x 19" W x 7.5" D • Weight: 5.5 lbs. • Three-year limited manufacturer's warranty.
Applications
Instrument Rigs
You've got a rack for your effects, preamps, tuner...You're going to plug that into the wall? One big spike and your rig is up in smoke. Furman's standard level surge/spike protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With Furman's standard level RFI/EMI filtration, you'll get a quieter tone without pops, crackles, and the local radio station coming out of your amp. Plus, dual pull-out lamps let you see your rack without turning the house lights on.
Recording
Can't track down where that noise is coming from? Your mix sounding flat? With Furman's standard level RFI/EMI filtration you'll lower the noise floor caused by the dirty AC power coming into your console or DAW. Furman's standard level surge and spike protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and nine total outlets, it's enough to power your whole home studio.
DJ Equipment
Bars, clubs and other event venues have some of the worst power out there-from air compressors turning on and off to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Furman's standard level protection and filtration keeps the bad stuff out. The dual pull-out front panel lights also let you discreetly see your board and gear without distracting from the show on the dance floor.
Pro Audio
When you're out there gigging, you never know what kind of power you're going to get. The wear and tear on mobile rigs eventually takes it toll - that's why it's smart to plug into Furman's standard level protection and RFI/EMI filtration. It keeps your equipment safe and sounding clean. Whether you're setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.
