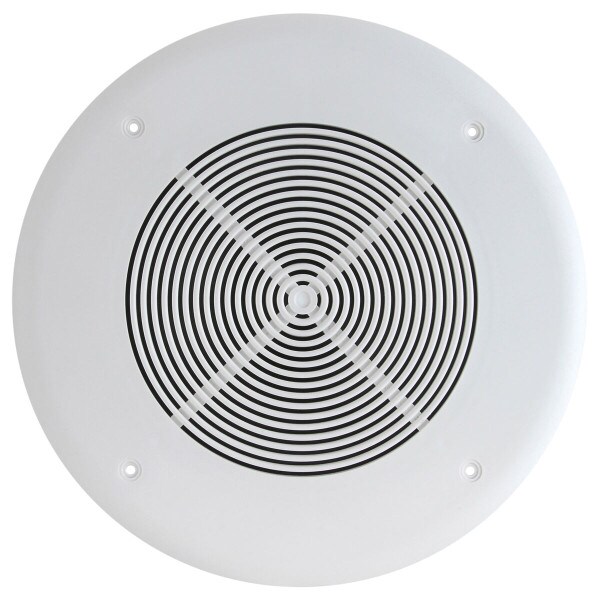

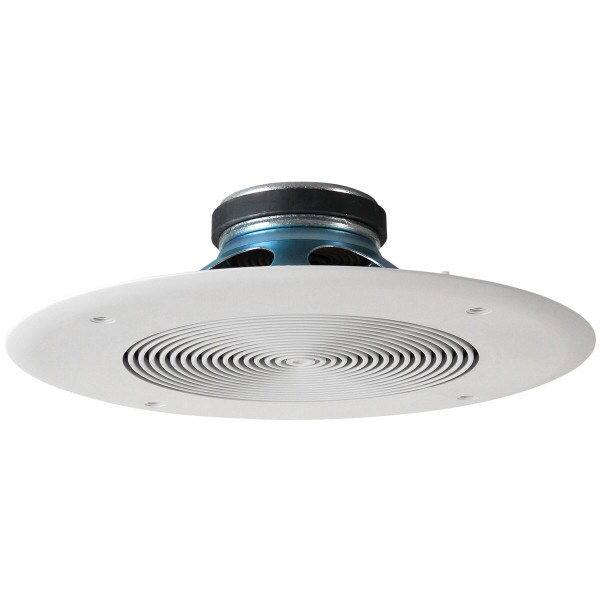

Factory assembled and pre-tested to pass the highest quality standards. Compact 11" diameter is less conspicuous than comparable models. The SDT4-CR8 utilizes a molded polystyrene grill with a non-glare ceiling white texture. It has an impedance of 8 ohms and is rated at 15 watts. The SDT4-CR8 is fitted with a 25/70 volt transformer.

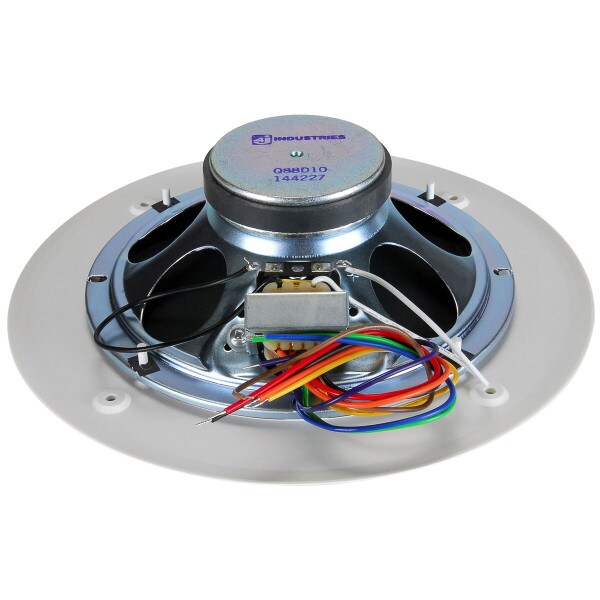

Speaker Model #Q88D10 | Transformer Model T427 | ||
| Size & Style | 8" Round | Power Rating | 4 Watts |
| Magnet Weight & Type | 10 oz. Ceramic | Primary Voltage | 25 & 70 |
| Speaker Type | Dual Cone | Insertion Loss @ 1 KHz | 0.9 dB |
| Power Rating | 25 Watts | Frequency Response | 80-20,000 Hz |
| Sensitivity | 100 dB | Primary Taps | 4, 2, 1, 1/2 Watts |
| Response | 30-19,000 Hz | Primary Leads | 6" Color Coded |
| Impedance | 8 Ohms | Secondary Impedance | 8 Ohms |
| Coil Diameter | 1" | Secondary Leads | 6" Color Coded |
| Depth | 2-7/8" | Mounting Centers | 2" |
| Weight | 2.1 Lbs. | Weight | 0.42 Lbs. |
Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
Product Details | |
|---|---|
| Brand | Fourjay Industries |
| Model | SDT4-CR8 |
| Part Number | 300-350 |
| UPC | 844632007552 |
| Unit of Measure | Each |
| Weight | 4.1778 |
Product Specifications | |
|---|---|
| Input Rating | 8 ohm|70V|25V |
| Mounting Style | In-ceiling |
| Woofer Diameter | 8" |
