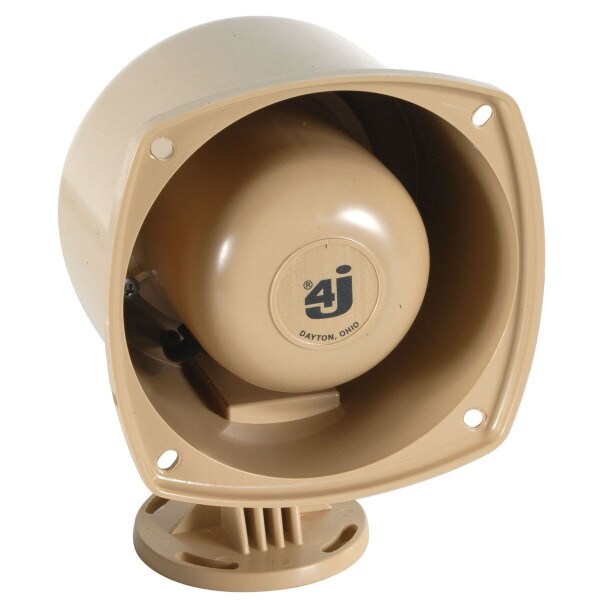

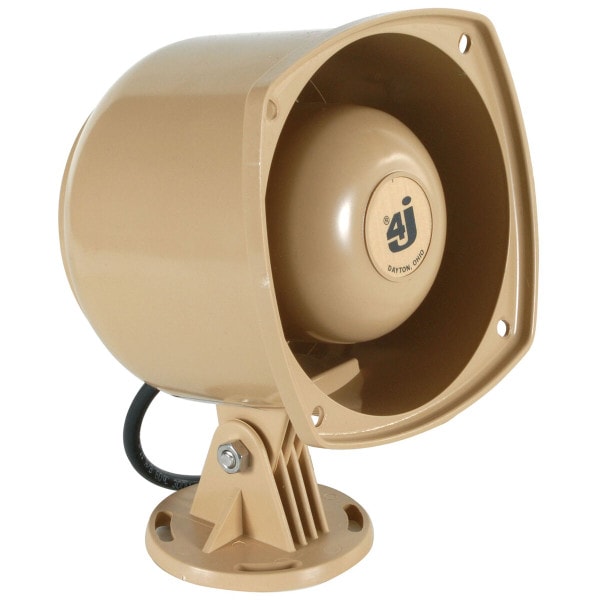

Designed for paging and music in moderately noisy environments, the Little Big Horn provides pleasing voice projection and high speech intelligibility. Constructed of impact & UV resistant ABS and stainless steel fasteners, it is weather and corrosion resistant while the reflex driver uses a moisture resistant diaphragm. The adjustable mounting base will attach to a 3" electrical box or it may be recess mounted; the hole locations are provided on the flange. Tan in color. Made in the USA.
Specifications: • Rated input: 70.7V line • Power taps: 6, 3, 1 & 1/2 watts • Frequency range: 400-5,000 Hz • Sensitivity: 97 dB • Mfg. #306/70-T • Dimensions: 5-1/2" W x 5-1/2" H x 4-1/2" D (excluding mounting base).
Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
Product Details | |
|---|---|
| Brand | Fourjay Industries |
| Model | 306/70-T |
| Part Number | 300-064 |
| UPC | 844632007323 |
| Unit of Measure | Each |
| Weight | 1.75 |
Product Specifications | |
|---|---|
| Speaker Type | PA Horn Speaker |
