  • Fourjay 132-TD 25/70V Re-Entrant Horn Speaker

Fourjay 132-TD 25/70V Re-Entrant Horn Speaker

Fourjay 132-TD 25/70V Re-Entrant Horn Speaker

Fourjay Industries
Part #300-069
Model: 132-TD
Designed for noise penetration and clear speech intelligibility, the 132-TD is used in high-noise areas and outdoor locations where you need exceptionally high output and long-throw coverage. It also boasts excellent sensitivity as a microphone in talk-back systems.
Your Price: $145.98
+ FREE SHIPPING
MSRP: $188.99
Save $43.01 (23%)
Bulk Pricing
Quantity:Qty: 1-5 $145.98/ea
Quantity:Qty: 6+$138.68/ea
Order in the next 4 hr 24 min to ship today. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Fourjay 132-TD 25/70V Re-Entrant Horn Speaker

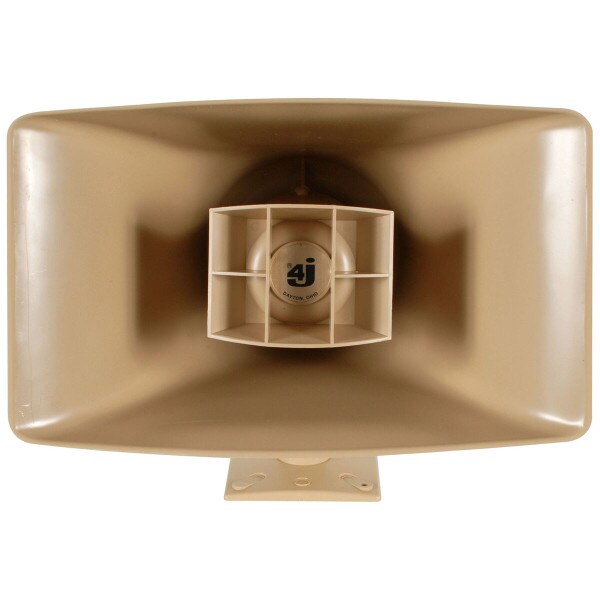

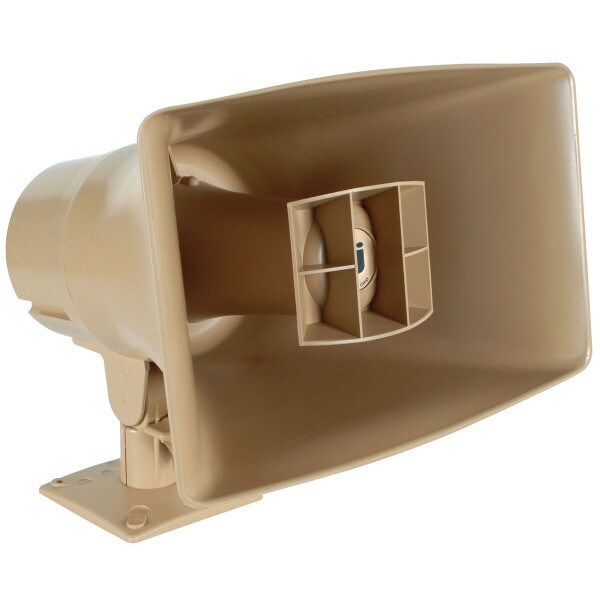

Designed for noise penetration and clear speech intelligibility, the 132-TD is used in high-noise areas and outdoor locations where you need exceptionally high output and long-throw coverage. It also boasts excellent sensitivity as a microphone in talk-back systems. It is conservatively rated at 32 watts continuous duty while the diffuser suppresses on-axis hot spot and improves dispersion. Weather and corrosion resistant construction uses stainless steel fasteners and engineering grade UV resistant thermoplastics. Unique mounting design offers quick, easy assembly and adjustment. Includes 18-2, black jacketed, 3 ft. cable for fast "hard wiring" and good weatherability. Made in the U.S.A.

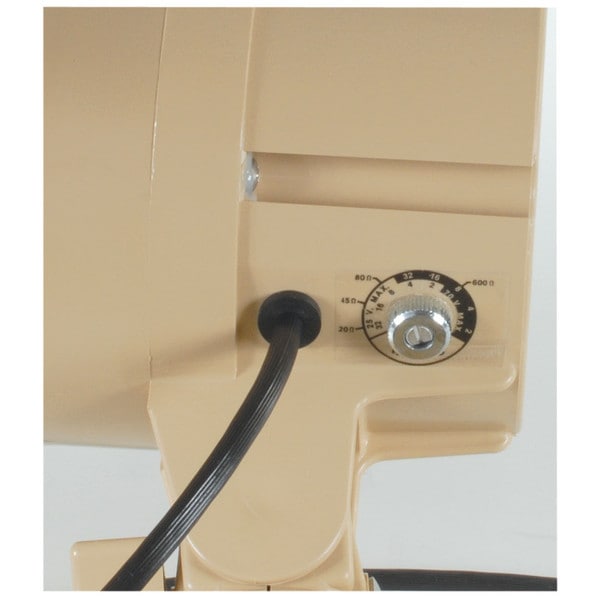

Specifications: • Input: 25V or 70.7V line • Power taps: 32, 16, 8, 4 & 2 watts • Frequency range: 600- 4,500 Hz (±3 dB) • SPL: 110 dB 1W/1m.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Product Details

BrandFourjay Industries
Model132-TD
Part Number300-069
UPC844632007354
Unit of MeasureEach
Weight4.5

Product Specifications

Speaker TypePA Horn Speaker
