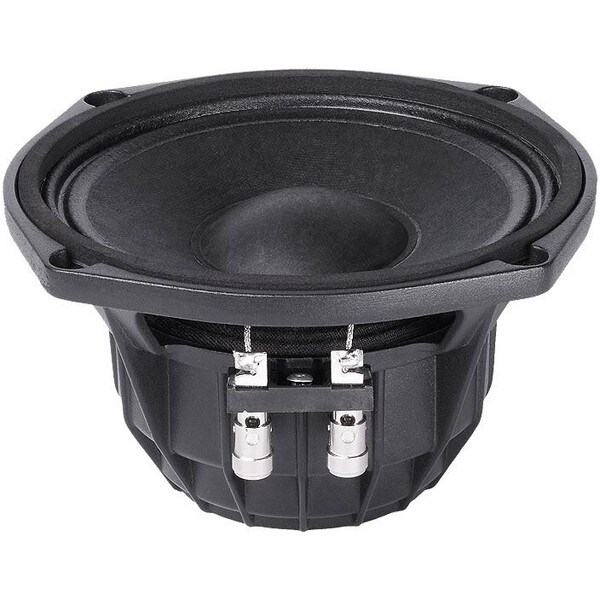

FaitalPRO M5N8-80 5" Neodymium Professional Midrange 12 Ohm

6 Questions, 16 Answers or
FaitalPRO
Part #294-1143

FaitalPRO M5N8-80 5" Neodymium Professional Midrange 12 Ohm

FaitalPRO
Part #294-1143
Model: M5N8-80
6 Questions, 16 Answers or
For high output, high fidelity applications, choose FaitalPRO's M5N8-80 5" professional midrange. A 99 dB sensitivity allows it to be combined with most professional audio woofers and compression drivers for the ultimate multi-way speaker.
Key Features
  • Unique 12 ohm impedance for special applications
  • High energy, shelf-shielded neodymium magnet
  • M-Roll surround and treated paper cone
  • Cast aluminum frame
  • High 99 dB sensitivity
Your Price: $149.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 9 hr 33 min to ship today. Details

Only 1 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO M5N8-80 5" Neodymium Professional Midrange 12 Ohm

FaitalPRO's neodymium-powered M5N8-80 5" midrange driver is built, first and foremost, for extremely high output. An average sensitivity of 99 dB (at 1W/1m) from 500 to 6,000 Hz makes it the ideal choice for midrange duties in a high output, multi-way professional audio loudspeaker.

For outstanding longevity, an M-Roll surround is attached to the treated-paper cone. All of the soft parts, and magnet, are held in-place by the extremely rigid cast-aluminum basket. Not only does the neodymium motor offer outstanding BL product, it also acts as a self-shielded magnet which protects electronically sensitive equipment. Made in Italy.

Product Details

BrandFaitalPRO
ModelM5N8-80
Part Number294-1143
UPC848864011066
Unit of MeasureEach
Weight2.2

Product Specifications

Nominal Diameter5"
Bolt Circle Diameter5.47
Power Handling (RMS)80 Watts
Power Handling (MAX)160 Watts
Impedance12Ω
Frequency Response180 to 8,000Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter1.26"

Thiele-Small Parameters

Resonant Frequency (Fs)180Hz
DC Resistance (Re)7.2Ω
Voice Coil Inductance (Le)0.15mH
Mechanical Q (Qms)2.7
Electromagnetic Q (Qes)0.54
Total Q (Qts)0.45
Compliance Equivalent Volume (Vas)0.04ft³
Mechanical Compliance of Suspension (Cms)0.09mm/N
BL Product (BL)11.3T·m
Diaphragm Mass Inc. Airload (Mms)8.2g
Maximum Linear Excursion (Xmax)2.75mm
Surface Area of Cone (Sd)94.2cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.02" across the mounting tabs, 5.51"
Baffle Cutout Diameter5"
Depth3.16"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.05ft³
Sealed F3326.6Hz
Vented Volume0.08ft³
Vented F3150.8Hz
