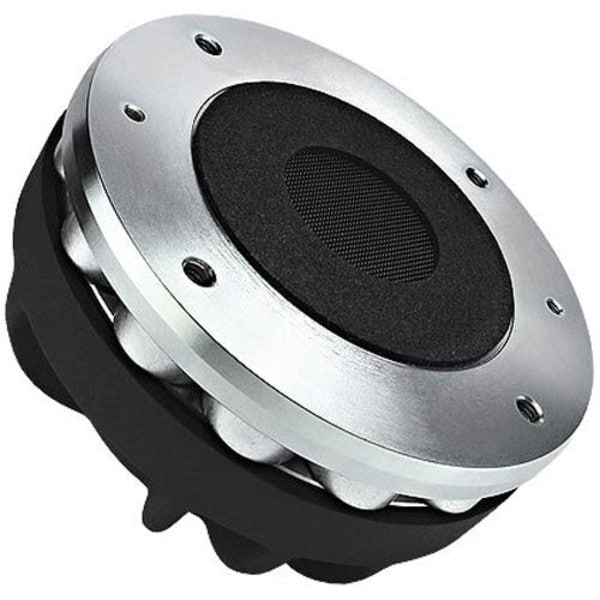

FaitalPRO HF146 1.4" Neodymium Compression Horn Driver 8 Ohm 4-Bolt

FaitalPRO
Part #294-1023

FaitalPRO HF146 1.4" Neodymium Compression Horn Driver 8 Ohm 4-Bolt

FaitalPRO
Part #294-1023
Model: HF146
For a smooth sounding compression driver with broad range and high output, choose FaitalPRO's HF146 1.4" compression driver. A radial neodymium slug motor focuses magnet flux into the gap while keeping driver weight below 5 pounds.
Key Features
  • Neo radial motor design for light weight and high output
  • Ketone polymer dome diaphragm for smooth output
  • Large voice coil for high power handling
  • Wide band 700 Hz to 18,000 Hz frequency response
  • Made in Italy
Your Price: $305.00
+ FREE SHIPPING
Bulk Pricing
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

FaitalPRO HF146 1.4" Neodymium Compression Horn Driver 8 Ohm 4-Bolt

FailtalPRO's HF146 1.4" compression horn driver uses a radial neodymium slug motor design to pack as much BL product into the voice coil gap as possible. When combined with the ketone polymer dome diaphragm, the HF146 produces smooth, neutral sound over a broad range (from 700 to 18,000 Hz).

The high energy motor is also response for output up to 111 dB with only one watt of input power, with a 109 dB average sensitivity, while keeping the total weight of the driver under five pounds. Built with an annular phase plug. Made in Italy.

Specifications: • Power handling: 40 watts RMS (above 650 Hz), 80 watts RMS (above 900 Hz) with recommended crossover of 900 Hz, 12 dB/octave slope  • VCdia: 2.56" • Impedance: 8 ohms • Frequency response: 700-18,000 Hz • SPL: 109 dB 1W/1m • Dimensions: 4.84" diameter x 2.50" depth • Bolt pattern: 4 x M6 • Weight: 4.41 lbs.

Product Details

BrandFaitalPRO
ModelHF146
Part Number294-1023
UPC848864011424
Unit of MeasureEach
Weight5

Product Specifications

Diaphragm MaterialPoly / Mylar
Exit Diameter1.4"
Mounting Type4-Bolt
Power Handling (RMS)80 Watts
Impedance
