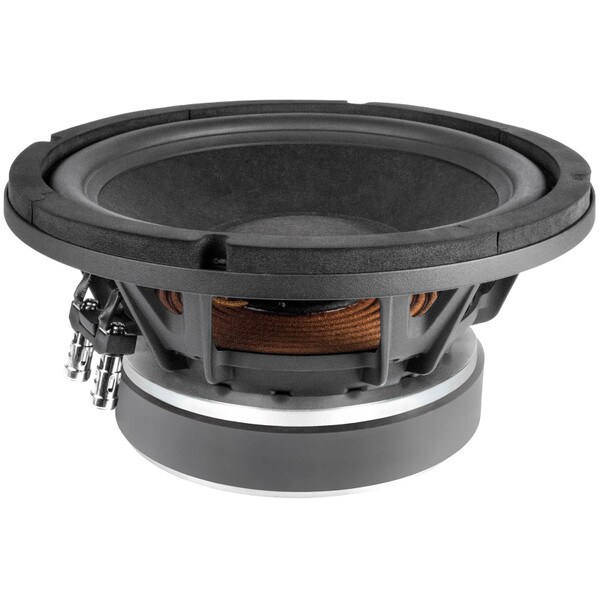

NEW FaitalPRO 10RS430 10" Professional Woofer 8 Ohm

1 Question, 1 Answer or
FaitalPRO
Part #294-1338

NEW FaitalPRO 10RS430 10" Professional Woofer 8 Ohm

FaitalPRO
Part #294-1338
Model: 10RS430
1 Question, 1 Answer or

With great efficiency and high excursion capability, Faital Pro's 10RS430 10" professional subwoofer is perfect for use in extremely small portable subwoofer systems. The large ferrite motor and proprietary frame design allows enough clearance for over 36 mm of peak to peak excursion without issue, ensuring reliable performance even when driven to its limits.

Key Features
  • Massive ferrite motor with extensive venting for powerful output and low compression
  • 2.5" voice coil with fiberglass former to handle up to 300 watts RMS
  • Long lasting rubber surround and large spider keeps excursion liner
  • Designed specifically for excellent low frequency output from small enclosures
NEW $279.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 5 hr 41 min to ship today. Details

3In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 10RS430 10" Professional Woofer 8 Ohm

The 10RS430 10" professional subwoofer is designed to produce powerful bass output from compact enclosure designs. This driver uses a massive heat resistant ferrite motor with venting through the pole piece and frame to deliver high output with minimal power compression, even when driven to it's limits for long periods. With a 2.5" voice coil wound on a fiberglass former, the 10RS430 can handle up to 400 watts RMS with issues.

Thanks to a bumped back plate, there is ample room for high excursion, and the long voice coil gives this driver an Xmax of over 13 mm for maximum air displacement. A half roll rubber surround and large diameter flat spider keeps the cone excursion linear. The rigid frame is constructed of cast aluminum and designed to take the beating that the professional sound environment is known for. Faital Pro's 10RS430 is a great choice for use in any subwoofer designs where you need high output capability but size is a concern, such as compact DJ systems, portable PA's, and even car audio systems.

Product Details

BrandFaitalPRO
Model10RS430
Part Number294-1338
UPC848864074702
Unit of MeasureEach
Weight15.25

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.69
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance8Ω
Frequency Response30 to 2500Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter0.237"

Thiele-Small Parameters

Resonant Frequency (Fs)32Hz
DC Resistance (Re)6.8Ω
Voice Coil Inductance (Le)0.78mH
Mechanical Q (Qms)10
Electromagnetic Q (Qes)0.29
Total Q (Qts)0.28
Compliance Equivalent Volume (Vas)2.09ft³
Mechanical Compliance of Suspension (Cms)0.36mm/N
BL Product (BL)18T·m
Diaphragm Mass Inc. Airload (Mms)69g
Maximum Linear Excursion (Xmax)13.57mm
Surface Area of Cone (Sd)344cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.28"
Baffle Cutout Diameter9.06"
Depth5.35"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.505ft³
Sealed F3103.1Hz
Vented Volume0.563ft³
Vented F358.86Hz
