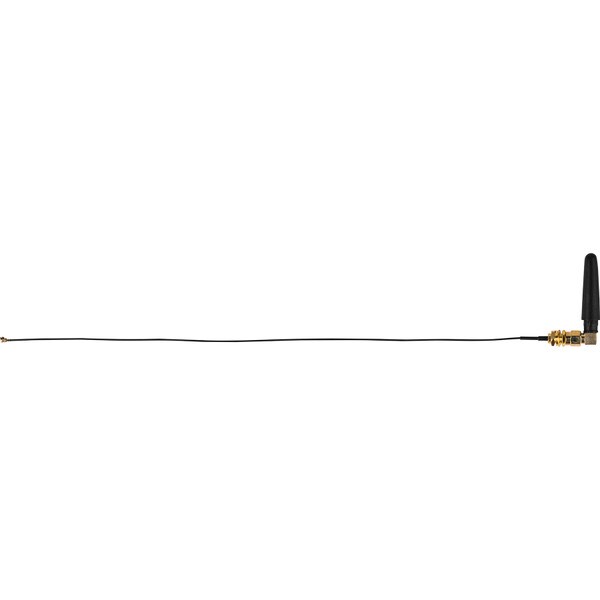

Replace a broken or missing Bluetooth of Wi-Fi antenna with this Bluetooth antenna kit. The 2" right angle rubber antenna fits into SMA male prong antenna sockets on most audio amplifiers, dongles, and other wireless transmit/receive devices.
This kit is the answer for those Bluetooth or Wi-Fi projects that require a metal enclosure. Metal enclosures work great for blocking out or keeping in RF interference. Start by drilling a small 1/4" hole for the gold plated SMA socket into the metal enclosure and use the included hardware to secure the socket. Next, snap the IPEX compatible connector at the end 11.8" pigtail into the IPEX socket on the PC board. This kit also comes with a 3.5" pigtail for smaller projects. If the PC board doesn't have this connector, cut the connector off the pigtail and solder it directly to the antenna terminal trace. Screw the rubber antenna into the SMA socket and you now have Bluetooth or Wi-Fi receive/transmit capability even though your board is surrounded by metal.
Specifications: • Antenna connector: SMA • Two pigtails: 11.8" (300 mm) and 3.5" with IPEX center female socket • Material: Gold plated brass • Cable ohms: 50 • Mounting hole required: 1/4" • Mounting thickness: Up to 1/4" • Rubber antenna: 2" right angle with center female socket.
