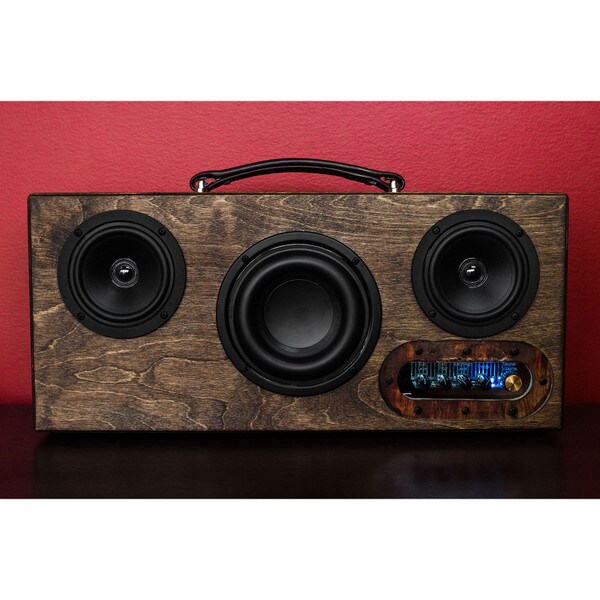

Executive Portable Bluetooth Speaker Kit without BatteriesThe modern design of the Executive Bluetooth speaker has the look of a sleek tabletop speaker, but the battery power gives you the freedom to take you music with you anywhere. With excellent looks, powerful output capability, and refined sound the Executive Bluetooth speaker is an unbeatable package

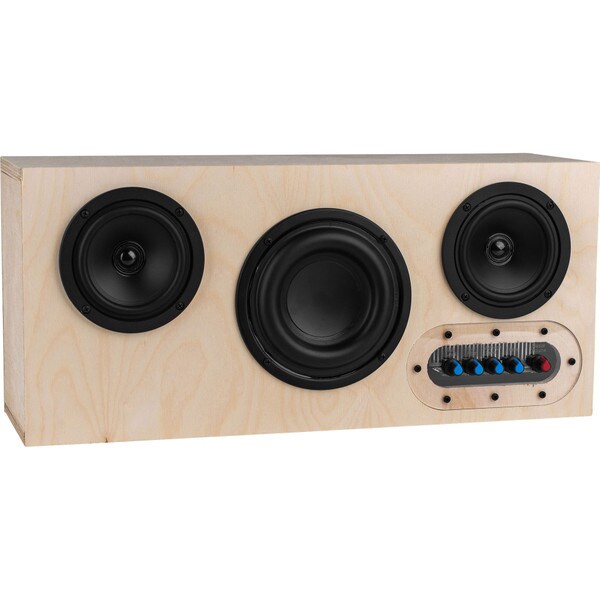

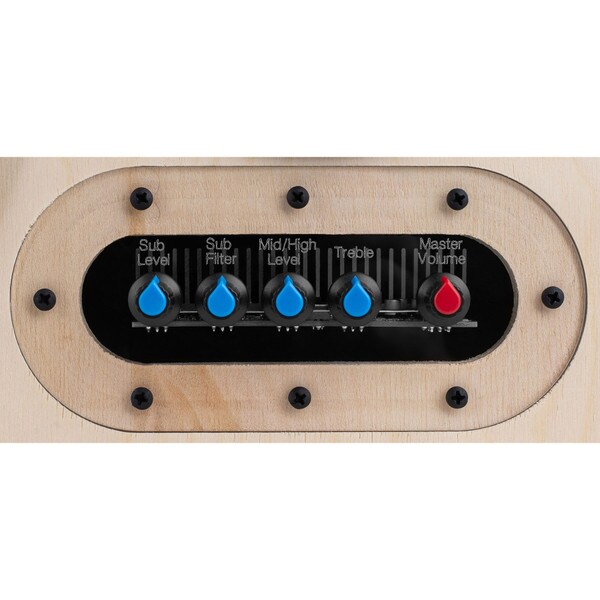

The Executive speaker kit is a battery powered portable Bluetooth speaker with sleek and modern looks that delivers sound quality that will make any audiophile happy. The powerful 2.1 design delivers high output with smooth and accurate response that will present a wider soundstage than you expect from such a compact system. The simple on-board controls allow you to tune the sound to fit the environment and even control your media player directly from the Executive speaker. A 4" coaxial driver with a 3/4" silk tweeter on each of the stereo channels produce extremely smooth response on and off-axis with nearly perfect phase response. For the low end, one of the highest excursion 5-1/4" subwoofers available is matched with an 8" passive radiator to deliver accurate deep bass response with power and authority.

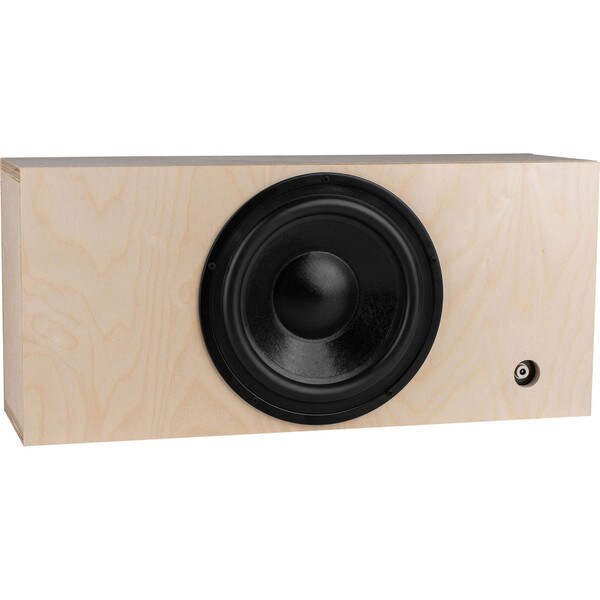

Equipped with incredible cutting edge drivers, you can be sure that the Executive speaker is capable of outstanding performance for an unbeatable value. Dayton Audio's CX120-8 4" coaxial driver, with a 3/4" silk dome tweeter, handles the midrange and high frequency duties. Poly cone driven by a 1" voice coil delivers a natural laid-back response with extreme control and low distortion. The 3/4" silk dome tweeter produces natural but crisp response and is co-axially mounted inside the woofer's voice coil for near perfect phase and time alignment. The bottom octaves are handled by the famous Tang Band W5-1138SMF 5-1/4" subwoofer paired up with a Dayton Audio DS215-PR 8" Passive Radiator. One of the highest excursion 5-1/4" subwoofers available, the W5-1138SMF looks great and will dispense bass like you would never expect from a design this small. The passive radiator design allows the enclosure to be incredibly compact with extremely low tuning, which keeps excursion under control and allows powerful output to under 40 Hz. All of this is powered by the TPS3116D2 Class D 2.1 Bluetooth 4.0 Amplifier Board, which is capable of 200 watts RMS of output. Thanks to the available power and excellent set of features, this amplifier makes the Executive a potent and flexible portable system.

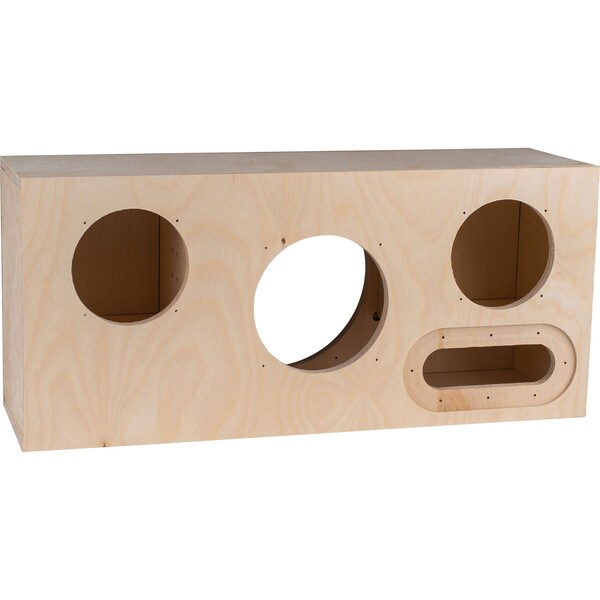

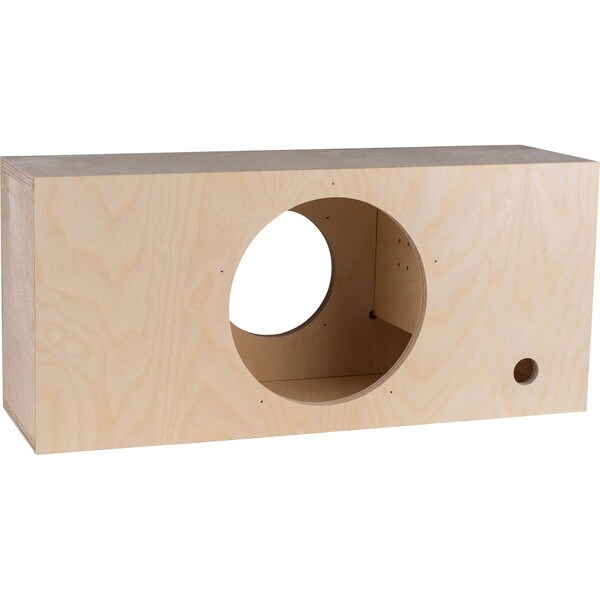

The enclosure for the Executive is designed to be easy to assemble and extremely rugged. Made from 1/2" thick high quality Baltic birch plywood, this box can take a beating and is much more moisture resistant MDF. The panels have all been precision cut with dadoes and rabbets for every piece making assembly a snap. The clean lines and modern look makes finishing simple and leaves plenty of room for customizing, allowing you to make the Executive speaker fit into any decor.

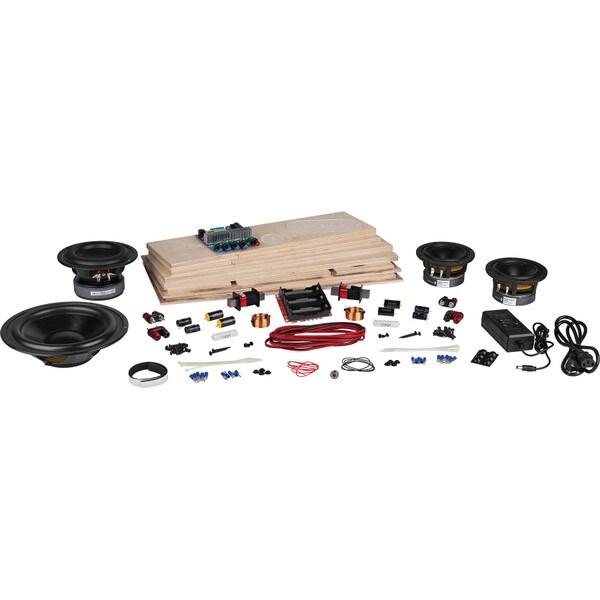

This kit includes nearly everything you need to build a high end portable Bluetooth speaker in no time flat, including: a knock-down enclosure, drivers, crossover components, amplifier, batteries, wire, hardware, and connectors.
Note: Batteries not included. This version of the Executive requires 3 x 18650 Li-Ion batteries for proper operation. To purchase the Executive with batteries included, see part number 300-7164.
This kit includes parts to build a single speaker system
Specifications:
• Power: 2 x 50 watts RMS + 1 x 100 watts RMS
• Midrange/Tweeter: 2 x CX120-8 4" coaxial driver
• Subwoofer: 1 x W5-1138SMF 5-1/4" high excursion subwoofer
• Frequency response: 35 – 20,000 Hz
• Battery time: 8 – 10 hours at moderate volume (with 3 x 2,600 mAh batteries)
• Bluetooth version: 4.0
• Dimensions: 9" H x 20" W x 6" D
Note: Crossover components may be substituted with parts of equal or higher quality depending on available inventory.
