  • EAS8P324A6 3-1/2" Square Frame Paper Cone Speaker 8 Ohm

BUYOUT EAS8P324A6 3-1/2" Square Frame Paper Cone Speaker 8 Ohm

Factory Buyouts
Part #299-4132

BUYOUT EAS8P324A6 3-1/2" Square Frame Paper Cone Speaker 8 Ohm

Factory Buyouts
Part #299-4132
Model: EAS8P324A6

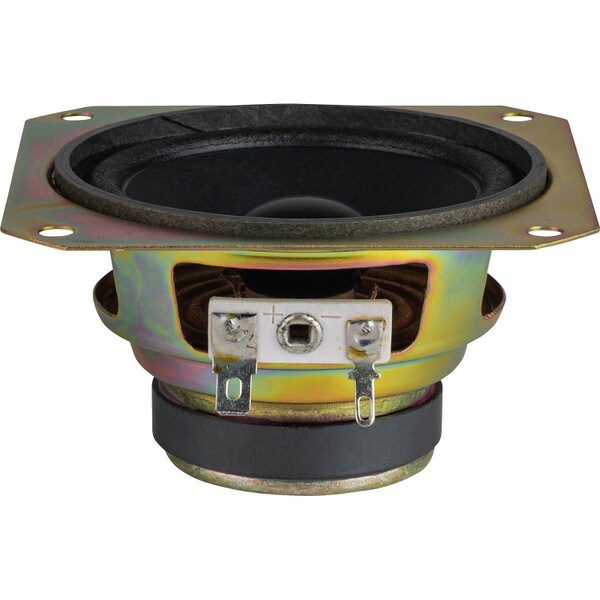

The EAS8P324A6 3-1/2" Square Frame Paper Cone Speaker uses a paper cone and cloth surround for uncolored audio. The square frame makes this a great contender for use in line arrays.
Key Features
  • Paper cone and cloth surround for clean, uncolored audio performance
  • Stylish square frame makes mounting easy
  • 7mm high voice coil wind increases excursion capability
BUYOUT $2.98
Bulk Pricing
Quantity:Qty: 1-19 $2.98/ea
Quantity:Qty: 20-49 $2.48/ea
Quantity:Qty: 50+$1.98/ea
Ships next business day. Details

6973In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

EAS8P324A6 3-1/2" Square Frame Paper Cone Speaker 8 Ohm

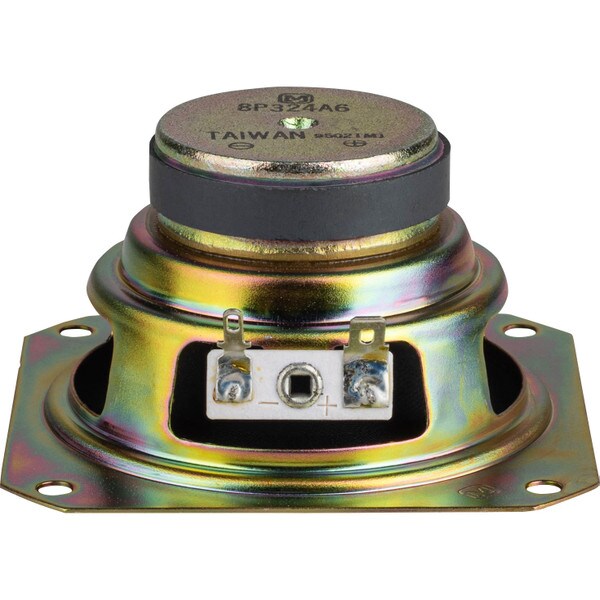

The EAS8P324A6 3-1/2" Square Frame Paper Cone Speaker uses a paper cone and cloth surround for clean, uncolored audio. The square frame and 8 ohm impedance makes this a great contender for use in line arrays. A strong ferrite magnet and extended wind length allow for unhindered excursion from the 5/8" diameter voice coil. A paper former keeps Mms light helping increase sensitivity.

Product Details

BrandFactory Buyouts
ModelEAS8P324A6
Part Number299-4132
UPC848864072135
Unit of MeasureEach
Weight0.4

Product Specifications

Nominal Diameter3-1/2"
Bolt Circle Diameter3.9375
Power Handling (RMS)10 Watts
Power Handling (MAX)20 Watts
Impedance8Ω
Frequency Response200 - 8,000Hz
Sensitivity81.5dB 2.83V/1m
Voice Coil Diameter0.625"

Thiele-Small Parameters

Resonant Frequency (Fs)196.4Hz
DC Resistance (Re)5.651Ω
Voice Coil Inductance (Le)0.1881mH
Mechanical Q (Qms)4.605
Electromagnetic Q (Qes)3.375
Total Q (Qts)1.948
Compliance Equivalent Volume (Vas)0.014ft³
Diaphragm Mass Inc. Airload (Mms)1.82g
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)28.27cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.5"
Baffle Cutout Diameter3.125"
Depth1.75"
# Mounting Holes4
