BUYOUT EAS57PD93A 2-3/4" Full-Range Speaker 4 Ohm

1 Question, 1 Answer or
Factory Buyouts
Part #299-4266

BUYOUT EAS57PD93A 2-3/4" Full-Range Speaker 4 Ohm

Factory Buyouts
Part #299-4266
Model: EAS57PD93A
1 Question, 1 Answer or

The EAS57PD93A 2-3/4" Full-Range Speaker is a solid, well-built mini-speaker designed to take a beating.

Key Features
  • 3/4" diameter 4-layer voice coil
  • Paper cone and inverted cloth surround for clear intelligibility
  • Overside magnet and extended pole piece for a symmetric Bl field
BUYOUT $3.98
MSRP: $9.99
Save $6.01 (60%)
Bulk Pricing
Quantity:Qty: 1-9 $3.98/ea
Quantity:Qty: 10-19 $3.48/ea
Quantity:Qty: 20+$2.98/ea
Order in the next 2 hr 55 min to ship today. Details

4833In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

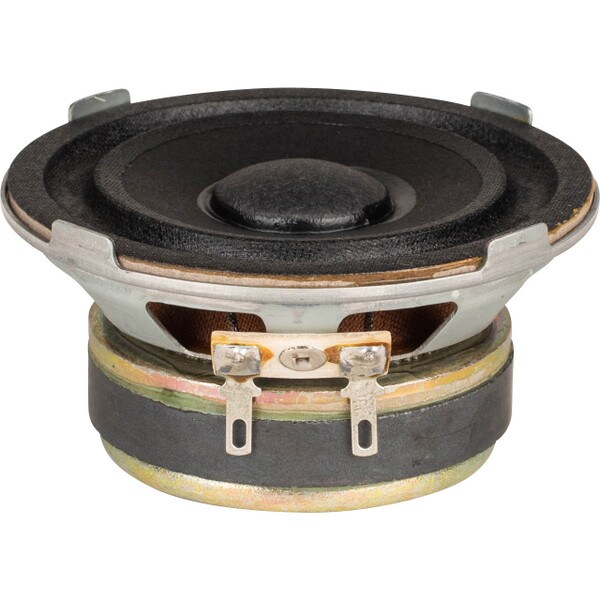

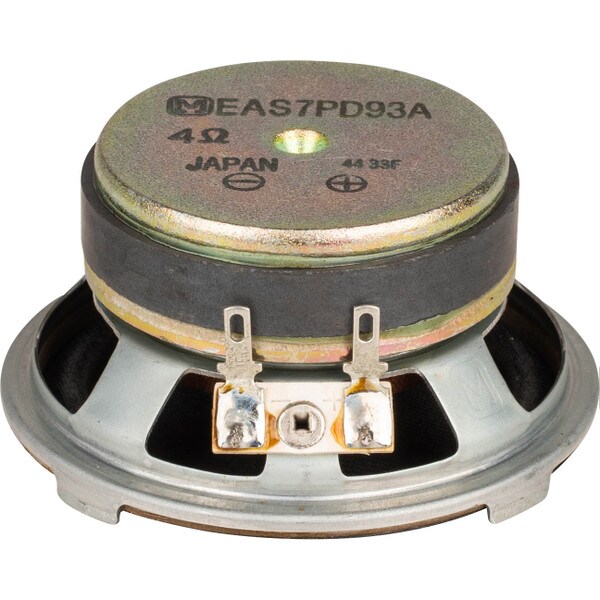

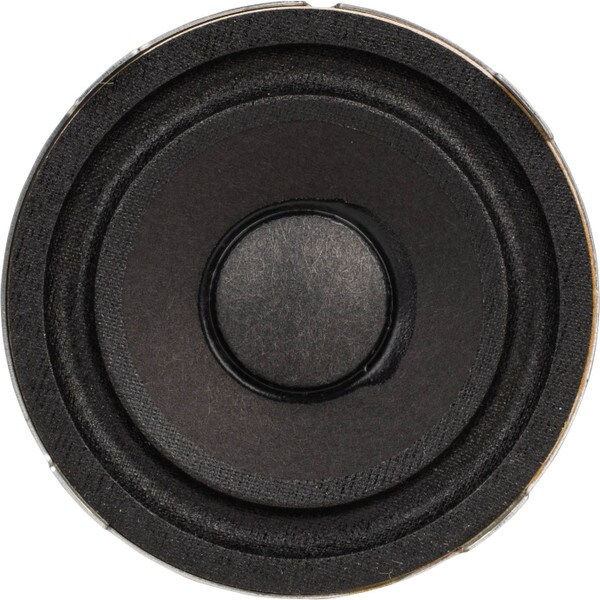

EAS57PD93A 2-3/4" Full-Range Speaker 4 Ohm

The EAS57PD93A 2-3/4" Full-Range Speaker is a solid, well-built mini-speaker designed to take a beating. A 0.5mm thick steel frame, oversize ferrite magnet and 4-layer voice coil make for a small speaker with a huge point to prove. When used as a dedicated midrange or high-passed full-range, this mini-speaker will surprise you with its output capability.

Product Details

BrandFactory Buyouts
ModelEAS57PD93A
Part Number299-4266
UPC848864073781
Unit of MeasureEach
Weight0.5

Product Specifications

Nominal Diameter2-7/8"
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance4Ω
Frequency Response200 to 15,000Hz
Sensitivity80.57dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)213Hz
DC Resistance (Re)3.485Ω
Voice Coil Inductance (Le)0.4593mH
Mechanical Q (Qms)9.44
Electromagnetic Q (Qes)1.923
Total Q (Qts)1.597
Compliance Equivalent Volume (Vas)0.005ft³
Diaphragm Mass Inc. Airload (Mms)2.743g
Maximum Linear Excursion (Xmax)1.5mm
Surface Area of Cone (Sd)22.65cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter2.75"
Baffle Cutout Diameter2.5"
Depth1.25"
