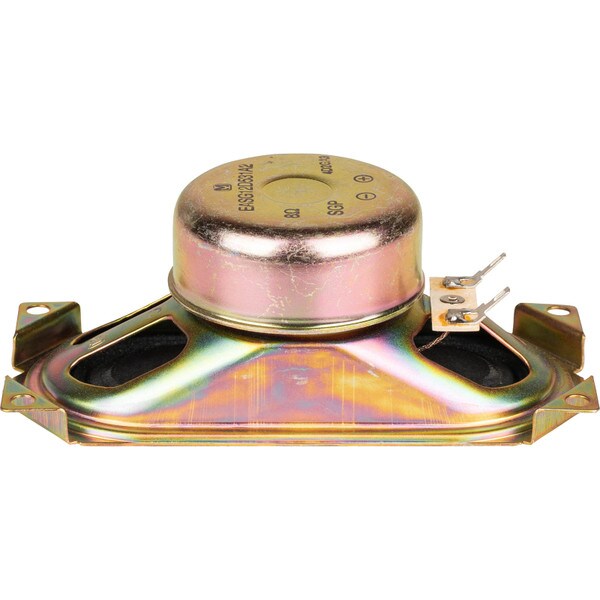

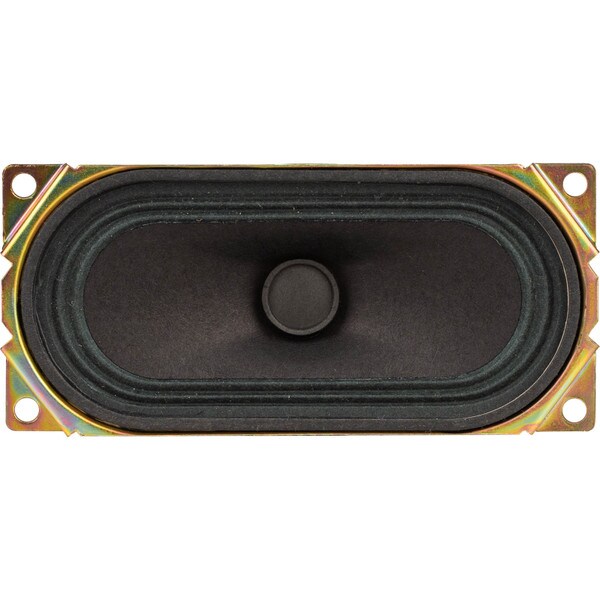

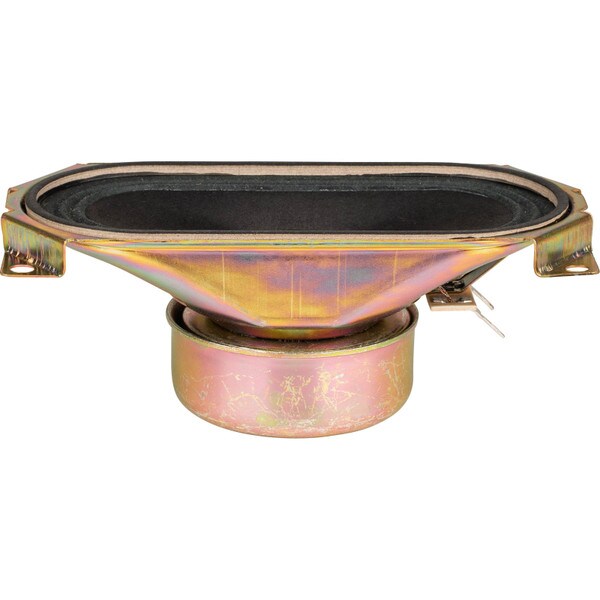

The EAS12D531A2 2-1/4" X 5" Full-Range Speaker utilizes a race-track shaped paper cone, shielded ferrite magnet and 8 ohm impedance.
The EAS12D531A2 2-1/4" X 5" Full-Range Speaker utilizes a race-track shaped paper cone, shielded ferrite magnet and 8 ohm impedance.
Product Details | |
|---|---|
| Brand | Factory Buyouts |
| Model | EAS12D531A2 |
| Part Number | 299-4264 |
| UPC | 848864073774 |
| Unit of Measure | Each |
| Weight | 0.5 |
Product Specifications | |
|---|---|
| Power Handling (RMS) | 10 Watts |
| Power Handling (MAX) | 20 Watts |
| Impedance | 8Ω |
| Frequency Response | 150 to 12,000Hz |
| Sensitivity | 86.27dB 2.83V/1m |
| Voice Coil Diameter | 0.5" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 155.3Hz |
| DC Resistance (Re) | 6.908Ω |
| Mechanical Q (Qms) | 4.156 |
| Electromagnetic Q (Qes) | 2.259 |
| Total Q (Qts) | 1.717 |
| Compliance Equivalent Volume (Vas) | 0.058ft³ |
| Diaphragm Mass Inc. Airload (Mms) | 1.438g |
| Maximum Linear Excursion (Xmax) | 0.5mm |
| Surface Area of Cone (Sd) | 40.15cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Surround Material | Paper |
| Voice Coil Wire Material | CCA |
| Voice Coil Former | Paper |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Depth | 1.75" |
| # Mounting Holes | 4 |
