  • EAB35995502 1-1/8" x 2-3/4" Paper Cone Full-Range Speaker 8 Ohm

BUYOUT EAB35995502 1-1/8" x 2-3/4" Paper Cone Full-Range Speaker 8 Ohm

Factory Buyouts
Part #289-2158

BUYOUT EAB35995502 1-1/8" x 2-3/4" Paper Cone Full-Range Speaker 8 Ohm

Factory Buyouts
Part #289-2158
Model: EAB35995502

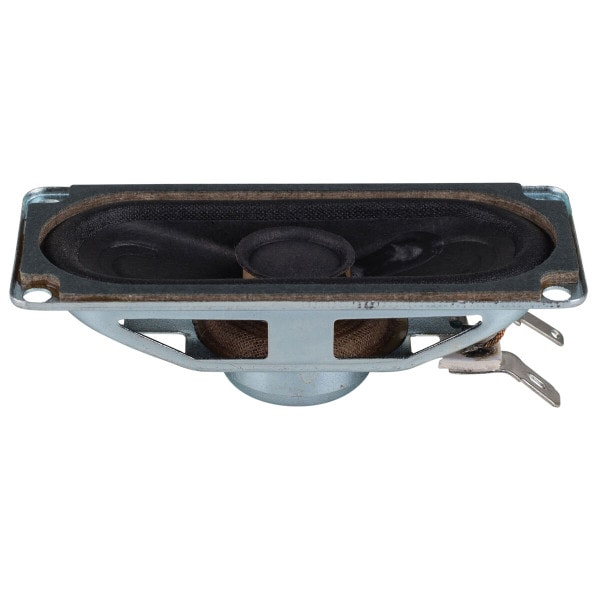

The EAB35995502 1-1/8" x 2-3/4" 8 ohm full-range replacement driver is an OEM replacement speaker for various LG Flatron LCD monitors and TV's. The paper cone and voice coil former with cloth surround ensure that this driver will produce smooth frequency response with minimal resonances.
Key Features
  • Flat mounting flange for easy front or rear mount installation
  • Neodymium motor keeps weight and depth to a minimum
  • Ideal for small line array designs thanks to its low cost
  • 16 ohm impedance is ideal for running multiple drivers
BUYOUT $0.29
MSRP: $0.80
Save $0.51 (64%)
Bulk Pricing
Order in the next 1 hr 18 min to ship today. Details

14389In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

EAB35995502 1-1/8" x 2-3/4" Paper Cone Full-Range Speaker 8 Ohm

We at Parts Express constantly hunt the globe for unique buyout opportunities so that we can provide our customers with the best products at the lowest cost. We are excited to offer this 1-1/8" x 2-3/4" full-range speaker, which is part of a massive TV speaker factory buyout from Brazil.

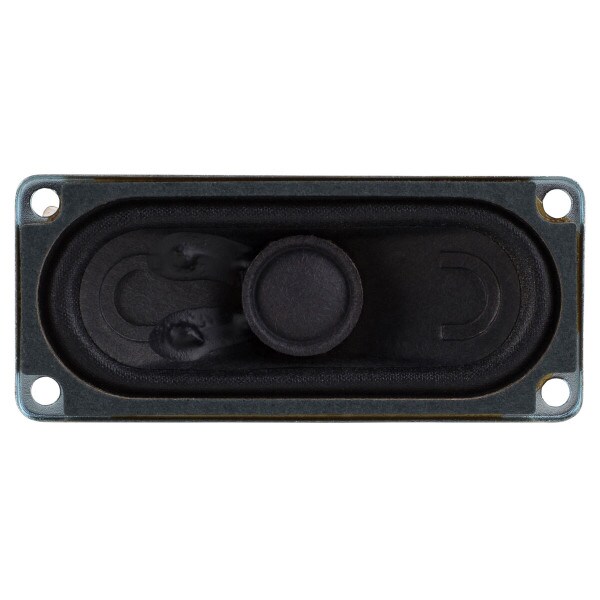

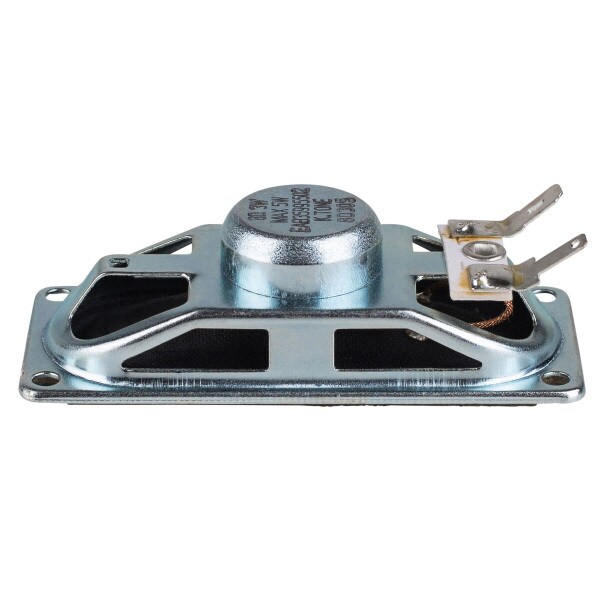

Originally found in LG Flatron monitors and TV's, this speaker features a rectangular design with a paper cone and cloth surround to deliver smooth response. With a flat mounting flange this driver is easy to install into most projects and the foam front gasket ensures a good seal when rear mounted.

Use these speakers in any low cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
ModelEAB35995502
Part Number289-2158
UPC848864048017
Unit of MeasureEach
Weight0.05

Product Specifications

Nominal Diameter1 x 2"
Power Handling (RMS)3 Watts
Power Handling (MAX)5 Watts
Impedance8Ω
Frequency Response200 to 15,000Hz
Sensitivity76.4dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)400Hz
DC Resistance (Re)7.62Ω
Voice Coil Inductance (Le)0.1mH
Mechanical Q (Qms)4.66
Electromagnetic Q (Qes)6.97
Total Q (Qts)2.77
Compliance Equivalent Volume (Vas)0.001ft³
Surface Area of Cone (Sd)954.159cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter1.25" x 2.75"
Baffle Cutout Diameter1" x 2.5625"
Depth0.75"
# Mounting Holes4
