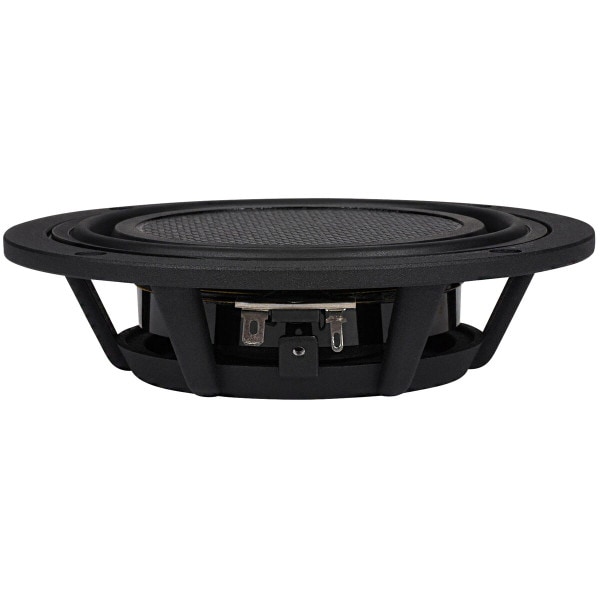

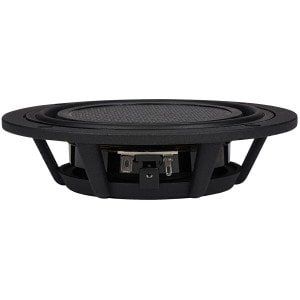

Dayton Audio LW150-4 6" Low Profile Woofer 4 Ohms

Dayton Audio
Part #295-255

Dayton Audio LW150-4 6" Low Profile Woofer 4 Ohms

Dayton Audio
Part #295-255
Model: LW150-4
The Dayton Audio LW150-4 6" woofer's unique venting allows zero-clearance installation in ultra-low profile applications. Solid bass output can be produced from spaces never thought possible.
Key Features
  • Very low profile woofer fits in tight spots

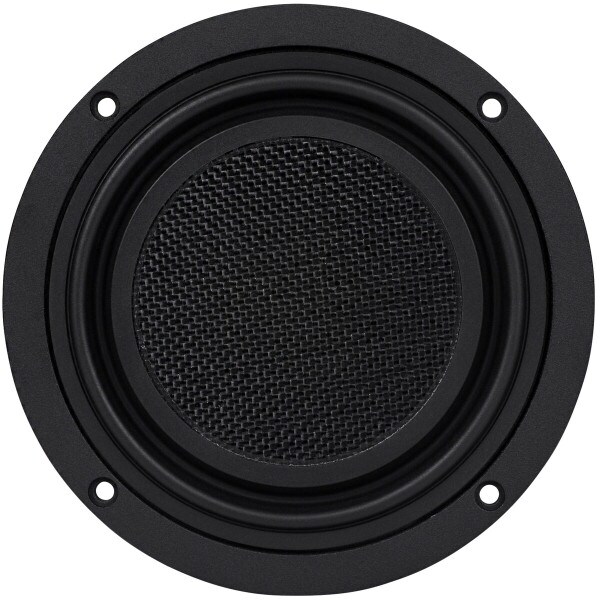

  • Flat woven glass-fiber/honeycomb aluminum composite cone
  • Dual sandwiched spiders and S-shaped surround enhance linear travel capability
  • Large 1-1/4" 4-layer voice coil and optimized T-pole gap geometry

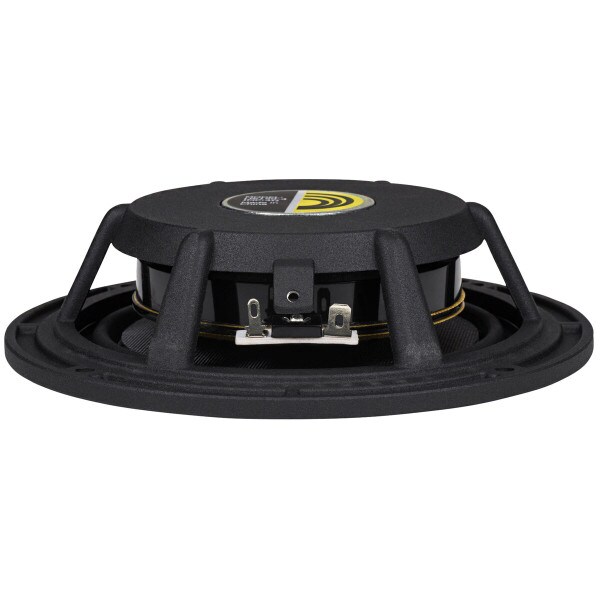

  • Peripheral holes in spider landing enable zero-clearance venting in shallow enclosures
  • Great for on-wall, in-wall, or car audio applications
Your Price: $39.99
MSRP: $70.99
Save $31.00 (44%)
Bulk Pricing
Order in the next 0 hr 14 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio LW150-4 6" Low Profile Woofer 4 Ohms

The unique and versatile Dayton Audio LW150-4 6" woofer was designed for space limited, minimum depth applications. Its low-profile frame and unique venting permit the back of the woofer to be placed directly against cabinet walls or even embedded (countersunk) into the cabinet, resulting in an enclosure less than 1-1/2" deep. Great match for today's ultra-thin TVs or use as a down firing subwoofer in a low powered system, low-frequency down-firing driver in a center channel/monitor stand, or bookshelf stand.

Read Vance Dickason's full review of the LW150-4 from the March 2016 issue of Voice Coil Magazine ( www.audioXpress.com):Test Bench: Dayton Audio LW150-4 6” Ultra-Low-Profile Midwoofer

Product Details

BrandDayton Audio
ModelLW150-4
Part Number295-255
UPC848791001864
Unit of MeasureEach
Weight1.15

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter5.5
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance4Ω
Frequency Response60 to 1,800Hz
Sensitivity86.1dB 2.83V/1m
Voice Coil Diameter1.25"

Thiele-Small Parameters

Resonant Frequency (Fs)62.6Hz
DC Resistance (Re)3.6Ω
Voice Coil Inductance (Le)0.86mH
Mechanical Q (Qms)6.01
Electromagnetic Q (Qes)0.72
Total Q (Qts)0.64
Compliance Equivalent Volume (Vas)0.12ft³
Mechanical Compliance of Suspension (Cms)0.296mm/N
BL Product (BL)6.51T·m
Diaphragm Mass Inc. Airload (Mms)21.8g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)91cm²

Materials of Construction

Cone MaterialCarbon Fiber Composite
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6"
Baffle Cutout Diameter5.125"
Depth1.5"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.16ft³
Sealed F390Hz
Vented Volume0.33ft³
Vented F340Hz
