• Home
  • Dayton Audio KAB-FC Function Cables Package for Bluetooth Amplifier Boards

Dayton Audio KAB-FC Function Cables Package for Bluetooth Amplifier Boards

Dayton Audio
Part #325-110

Dayton Audio KAB-FC Function Cables Package for Bluetooth Amplifier Boards

Dayton Audio
Part #325-110
Model: KAB-FC

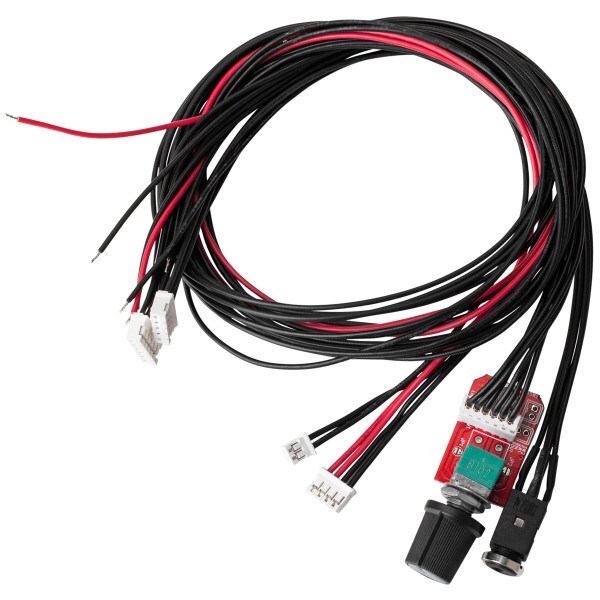

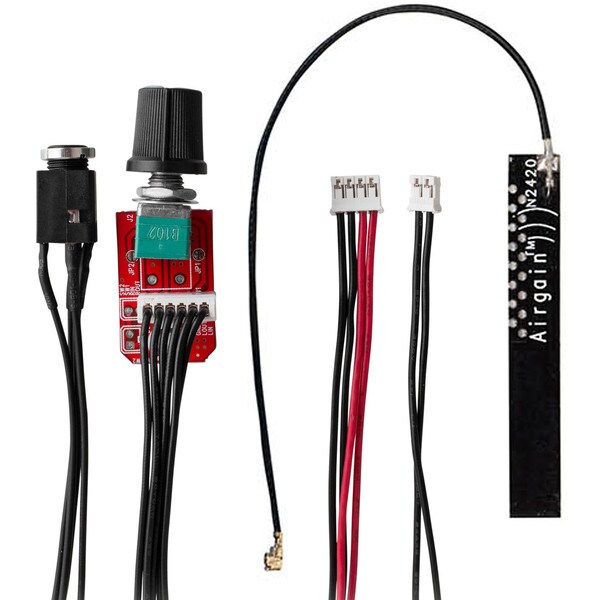

These four 20" function cables offer additional options for customizing Dayton Audio KAB Bluetooth amp board sound projects.
Key Features
  • 3.5 mm AUX-in cable with jack provides a way to play music with non-Bluetooth devices
  • External volume control with cable and knob to keep the sound under control
  • Battery cable for true portable projects
  • On/off power cable for optional power switch
Your Price: $5.98
MSRP: $6.99
Save $1.01 (14%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio KAB-FC Function Cables Package for Bluetooth Amplifier Boards

Use the KAB-FC cables to customize any Dayton Audio KAB project. This four-cable kit comes equipped with Molex Mini Fit Jr connectors for easy termination to the board, and each cable is 20" in length.

• The AUX-in cable with 3.5 mm jack feeds music from any analog source directly to the Dayton Audio KAB boards, enabling audio play from almost any non-Bluetooth source. Remove the jumper in the KAB-215 when installing the AUX-in cable. Save the jumper in case you remove the AUX-in wiring harness. You must reinstall it for the Bluetooth to work.

• The volume control with cable and knob lets you manually control sound levels, and mounts into a 0.3" hole. The volume control without knob is 0.24" (6 mm) in diameter. Remove the jumpers in the KAB-230, KAB-250, and KAB-M series to install the volume control. Store the jumpers in case you want to remove the volume control. You must reinstall the jumpers if you remove the volume control.

• The battery cable is for portable projects where AC or 12 VDC car power are not available. Multiple types of rechargeable batteries work with this cable and the board will charge the batteries when using an adapter with 15 - 24 VDC. Output wattage of the power adapter should never exceed 30 watts, as there is no under/over charging protection built in to the KAB boards.

• Using the on/off power cable and SPST switch cuts power to the entire board, but still provides power to the connected batteries for charging.

Product Details

BrandDayton Audio
ModelKAB-FC
Part Number325-110
UPC848791002540
Unit of MeasureEach
Weight0.1

Product Specifications

Board TypeWiring Harness
Special FeaturesVolume / Tone Control
