  • Dayton Audio DTA-100a Class-T Digital Mini Amplifier 50 WPC

CLEARANCE Dayton Audio DTA-100a Class-T Digital Mini Amplifier 50 WPC

Dayton Audio
Part #300-383

CLEARANCE Dayton Audio DTA-100a Class-T Digital Mini Amplifier 50 WPC

Dayton Audio
Part #300-383
Model: DTA-100a
The Dayton Audio DTA-100a provides 50 watts of pristine Class-T digital power per channel, a built-in headphone amplifier, and two stereo inputs to connect all your portable and permanent audio devices.
Key Features
  • Automatic switching 3.5 mm input jack allows you to select audio sources quickly
  • Provides superb, audiophile-quality sound—less than 0.01% THD @ 30 watts
  • 1/4" headphone jack for private listening
  • Compact extruded aluminum housing with thick black anodized faceplate
  • Short circuit, thermal, and overload protection ensures worry-free operation
  • World compatible 24 VDC switch mode power supply included for a variety of power options

Overview

Dayton Audio DTA-100a Class-T Digital Mini Amplifier 50 WPC

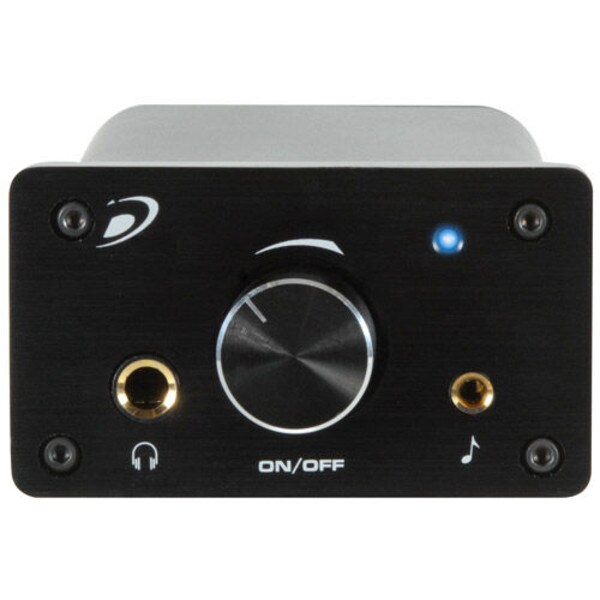

Clean-sounding, efficient, and versatile, Dayton Audio's DTA-100a packs audiophile-grade sonic performance into a package just slightly larger than pocket-sized! The DTA-100a utilizes the Tripath TK2050, a high-performance chipset that delivers 50 watts of continuous power per channel (100W total) into an 8 ohm load. The Dayton Audio DTA-100a's Class-T mini amplifier circuitry offers the audio fidelity of a Class-AB amplifier while providing the > 85% power efficiency of a Class-D design. This compact powerhouse also features a convenient front-mounted 3.5 mm stereo input for quick connection of iPods, MP3 players, and other portable audio devices. A rear-mounted RCA-type line level input is also provided for permanent connection of larger devices such as CD players.

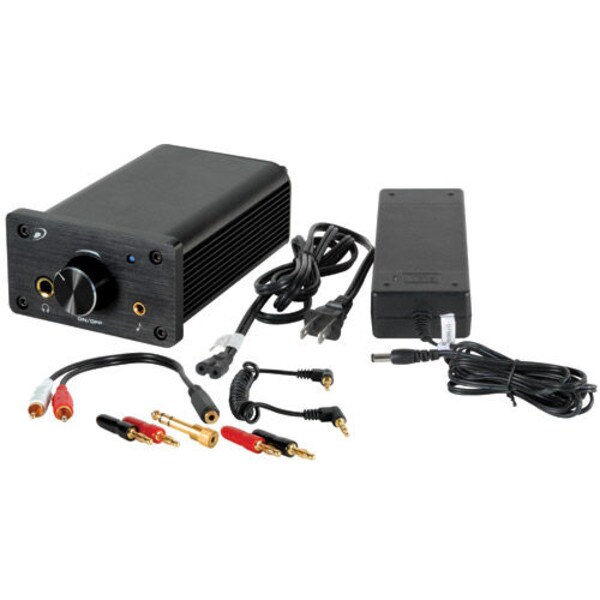

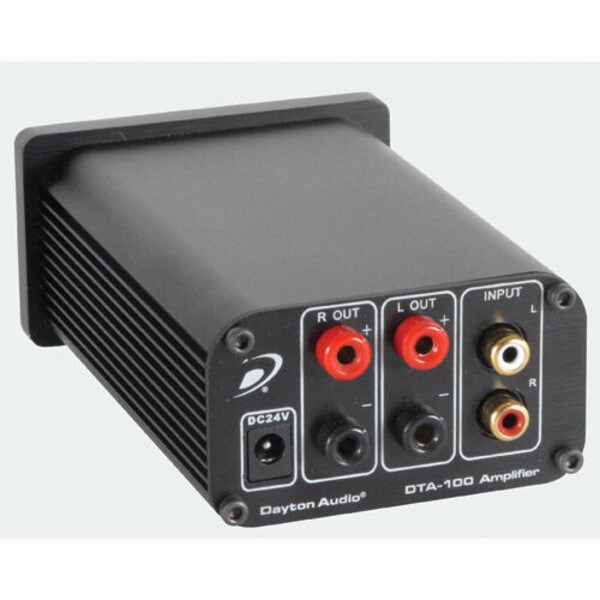

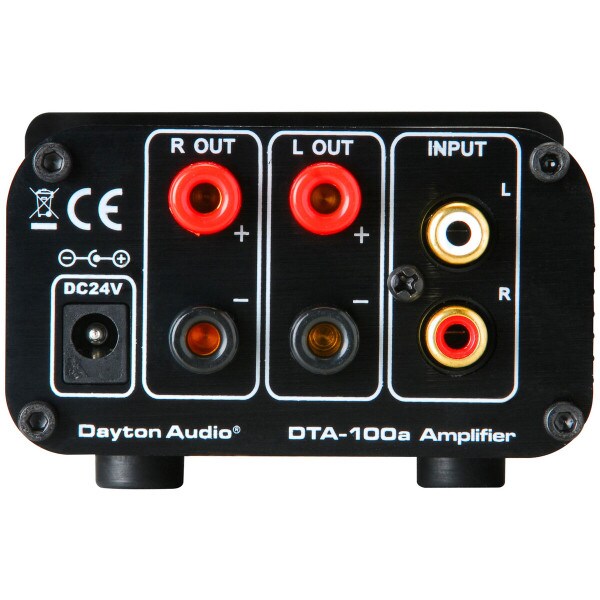

Speaker output connections are high-current banana plug receptacles spaced on 3/4" centers and compatible with standard double banana plugs (sold separately). High quality screw-on banana plugs that will accept 10 to 18 AWG wire are included. The DTA-100a also doubles as a high fidelity headphone amplifier that will drive any headphone easily, and delivers colossal sound stage from 20-20,000 Hz with a signal-to-noise ratio of 103 dB (A-weighted). The 1/4" stereo jack simplifies connection of larger home and studio style headphones. An adapter is also provided so smaller 3.5 mm personal-style headphones can be used. The amplifier comes complete with a world compatible power supply and its associated connectors.

Dimensions: • Faceplate dimensions: 1-29/32" H x 3-3/8" W x 5/16" D • Body dimensions: 1-3/4" H x 3-1/8" W x 4-5/8" D • Overall dimensions: 2-1/8" H x 3-3/8" W x 5-1/2" D (feet, faceplate, and volume knob included).

Note: Do not use with speakers that are lower than 8 ohms nominal impedance. This amplifier is not bridgeable.

Product Details

BrandDayton Audio
ModelDTA-100a
Part Number300-383
UPC844632084959
Unit of MeasureEach
Weight2.75

Product Specifications

Power (RMS/Channel 8 ohms)26 - 50 Watts
Special FeaturesClass T
