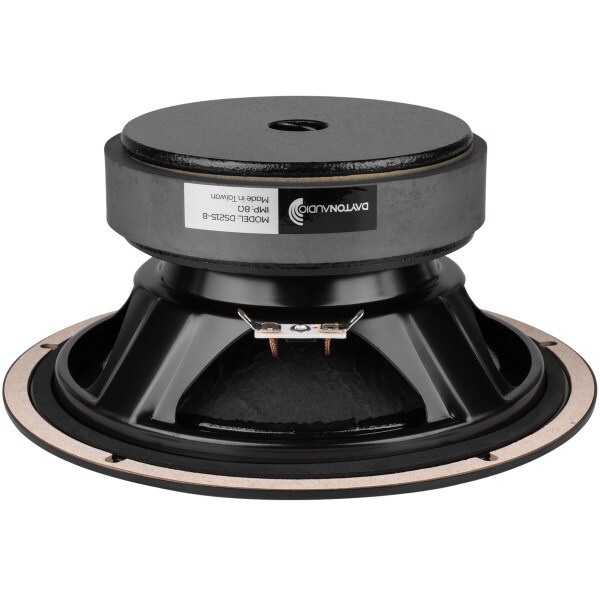

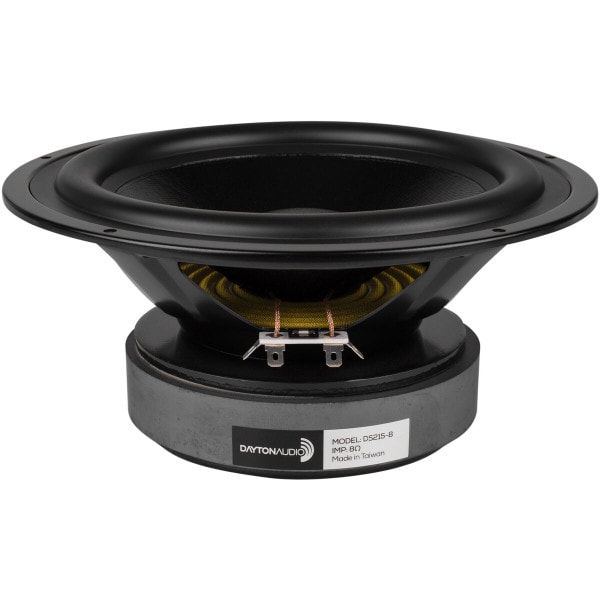

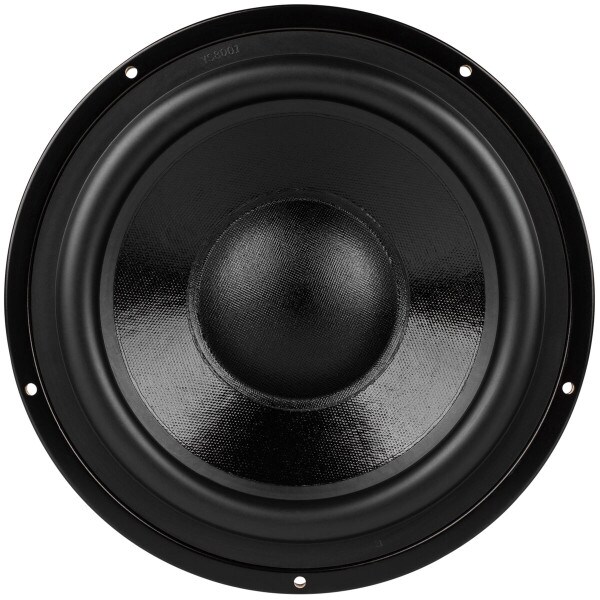

Dayton Audio DS215-8 8" Designer Series Woofer Speaker

Dayton Audio
Part #295-430

Dayton Audio DS215-8 8" Designer Series Woofer Speaker

Dayton Audio
Part #295-430
Model: DS215-8
Dayton Audio's Designer Series DS215-8 8" woofer combines smooth response, excellent bass performance, and a stylish visual presentation.
Key Features
  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Coated paper cone, half roll rubber surround for durability and accurate reproduction
  • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
  • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
  • Vented pole piece for minimized power compression and maximized reliability
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
Your Price: $49.99
MSRP: $71.99
Save $22.00 (31%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DS215-8 8" Designer Series Woofer Speaker

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Product Details

BrandDayton Audio
ModelDS215-8
Part Number295-430
UPC844632095412
Unit of MeasureEach
Weight7.05

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter8.11
Power Handling (RMS)80 Watts
Power Handling (MAX)160 Watts
Impedance8Ω
Frequency Response35 to 4,000Hz
Sensitivity89.9dB 2.83V/1m
Voice Coil Diameter1.52"

Thiele-Small Parameters

Resonant Frequency (Fs)34.3Hz
DC Resistance (Re)5.8Ω
Voice Coil Inductance (Le)1.25mH
Mechanical Q (Qms)1.75
Electromagnetic Q (Qes)0.38
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)1.52ft³
Mechanical Compliance of Suspension (Cms)0.72mm/N
BL Product (BL)9.89T·m
Diaphragm Mass Inc. Airload (Mms)29.7g
Maximum Linear Excursion (Xmax)5.5mm
Surface Area of Cone (Sd)211.2cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.5"
Baffle Cutout Diameter7.09"
Depth3.76"
# Mounting Holes5

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F388Hz
Vented Volume0.5ft³
Vented F356Hz
