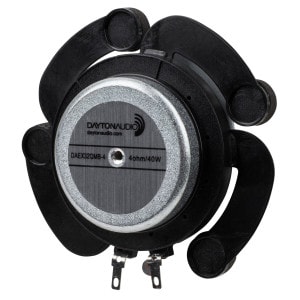

  • Dayton Audio DAEX32QMB-4 Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm

Dayton Audio DAEX32QMB-4 Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm

Dayton Audio
Part #295-264

Dayton Audio DAEX32QMB-4 Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm

Dayton Audio
Part #295-264
Model: DAEX32QMB-4
Turn almost anything with a flat surface into a speaker. The Dayton Audio DAEX32QMB-4 4 ohm 40 watt sound exciter improves power handling with a vented voice coil.
Key Features
  • Large 32 mm voice coil improves power handling to 40 watts RMS
  • Rare-earth neodymium motor and a proprietary vented voice coil
  • Four arms provide extra support improving linearity
  • Turns any flat, rigid surface into a speaker
Your Price: $22.98
MSRP: $29.99
Save $7.01 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $22.98/ea
Quantity:Qty: 4+$20.68/ea
Ships next business day. Details

494In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DAEX32QMB-4 Quad Feet Mega Bass 32mm Exciter 40W 4 Ohm

Dayton Audio's DAEX32QMB-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). Also, the arms help to support the magnet/voice coil improving linearity when mounted on vertical surfaces.

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1.25" voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick!

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

Specifications:• Power handling: 40 watts RMS • VCdia: 1.25" (32 mm) • Nominal impedance: 4 ohms • Re: 3.7 ohms • Le: 0.23 mH • Fs: 480 Hz • Dimensions: 3.125" (80 mm) overall diameter x 0.875" (22 mm) total height • Weight: 130 grams.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelDAEX32QMB-4
Part Number295-264
UPC848791001789
Unit of MeasureEach
Weight0.297

Product Specifications

ApplicationFull-Range Exciter
Power Handling (RMS)40 Watts
Impedance4Ω

Specifications
