Dayton Audio DAEX19CT-4 Coin Type 19mm Vented Exciter 5W 4 Ohm

Dayton Audio
Part #295-218

Dayton Audio DAEX19CT-4 Coin Type 19mm Vented Exciter 5W 4 Ohm

Dayton Audio
Part #295-218
Model: DAEX19CT-4
Take your product or project to the next level by turning it into a speaker! The DAEX19CT-4 sound exciter, by Dayton Audio, features voice coil vent holes for higher power handling
Key Features
  • Small size; just under 1-1/2" diameter, about 1/2" high
  • Pre-applied 3M™ VHB™ adhesive for quick, durable installation
  • Rare-earth neodymium motor with cooling vents for higher power handling
  • 4-ohm impedance for use with small, Class D amplifiers
  • Strategically-placed vent holes cool this exciter's voice coil for higher power handling
Your Price: $6.69
MSRP: $8.99
Save $2.30 (26%)
Bulk Pricing
Quantity:Qty: 1-3 $6.69/ea
Quantity:Qty: 4+$6.02/ea

Back-Ordered

Estimated back in stock 12/6/2024
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DAEX19CT-4 Coin Type 19mm Vented Exciter 5W 4 Ohm

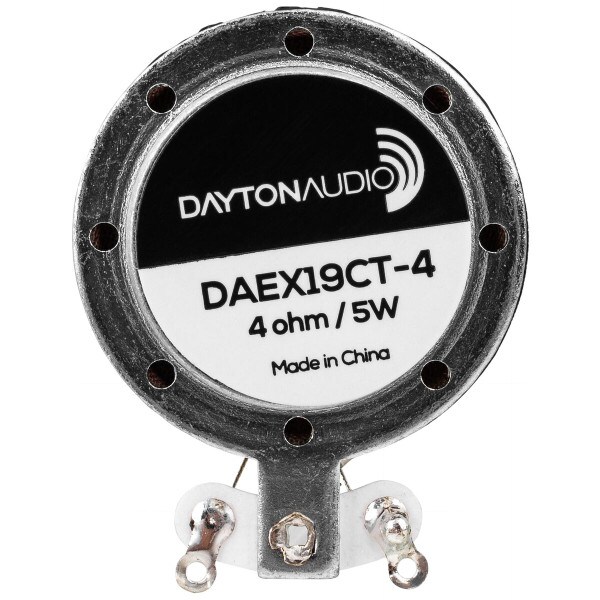

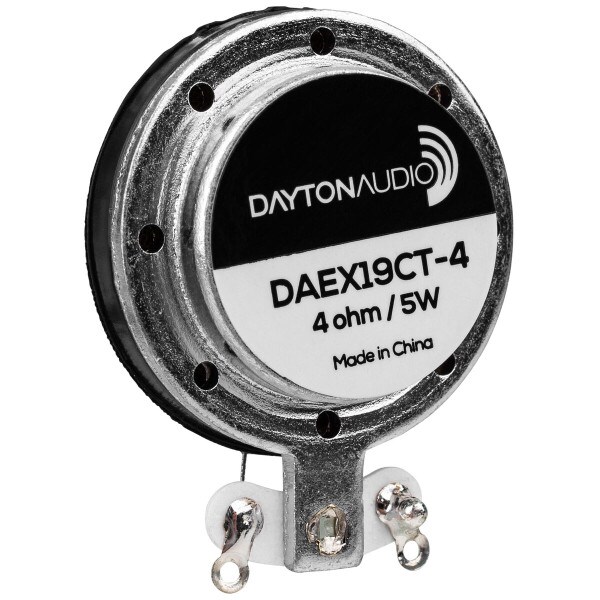

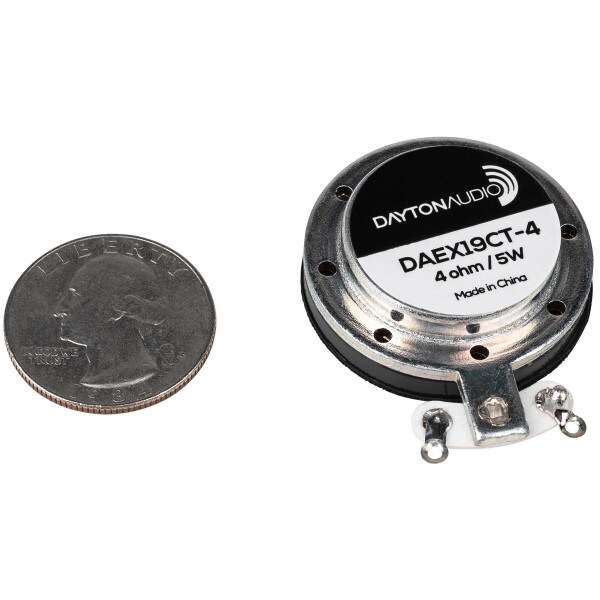

Dayton Audio's 19 mm DAEX19CT-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows!

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. Cooling holes placed strategically on this exciter's housing allows for higher power handling, for applications where more output is desired, while maintaining a small form factor.

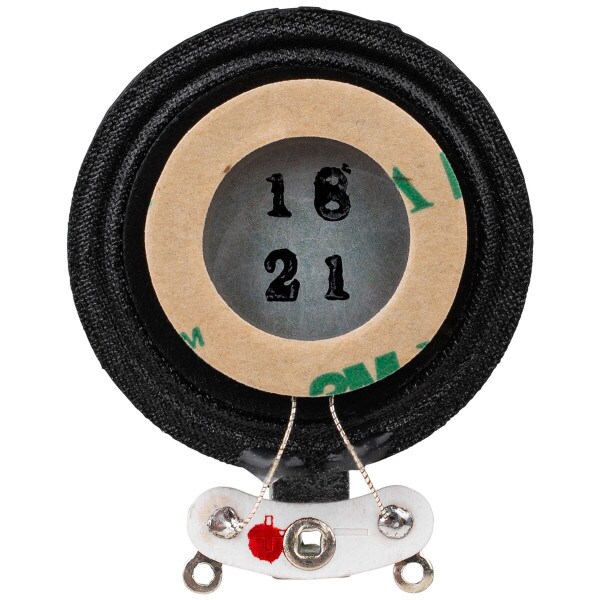

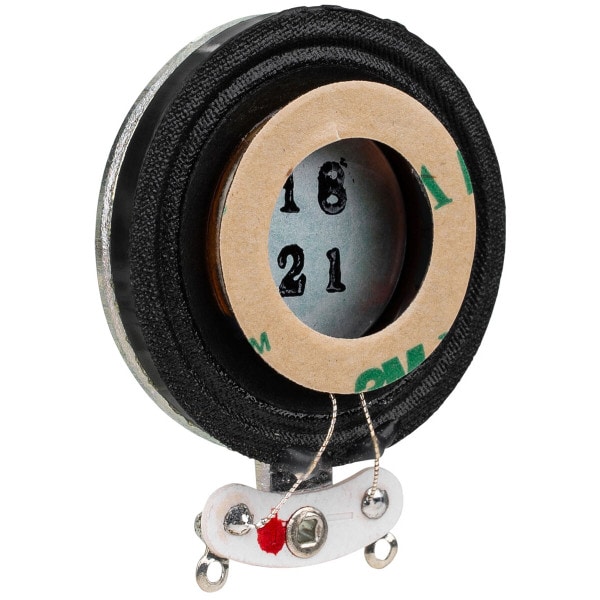

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.

Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

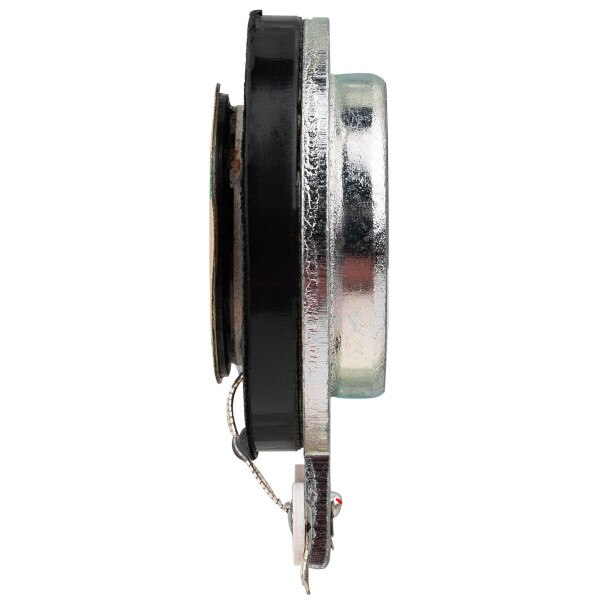

Specifications: • Power handling: 5 watts RMS • VCdia: 19 mm • Nominal impedance: 4 ohms • Re: 3.8 ohms • Le: 0.04 mH • Fs: 637 Hz • Dimensions: 1.3" (33 mm) dia. x 0.51" (13 mm) H • Adhesive dimensions: 0.85" (21.5 mm) outside diameter, 0.63" (21.75 mm) inside diameter • Weight: 31.5 grams.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

Product Details

BrandDayton Audio
ModelDAEX19CT-4
Part Number295-218
UPC848791000966
Unit of MeasureEach
Weight0.05

Product Specifications

ApplicationFull-Range Exciter
Power Handling (RMS)5 Watts
Impedance4Ω

Specifications
