Dayton Audio CE Series CE54N-4 2" Dual Neo Full-Range Speaker Driver 1"VC 15W 4 Ohm

1 Question, 1 Answer or
Dayton Audio
Part #285-167

Dayton Audio CE Series CE54N-4 2" Dual Neo Full-Range Speaker Driver 1"VC 15W 4 Ohm

Dayton Audio
Part #285-167
Model: CE54N-4
1 Question, 1 Answer or
Engineered specifically with manufacturers and DIY enthusiasts in mind, these economically priced speakers deliver impressive performance without breaking the bank. Though compact in size, they pack a powerful punch! Whether you're a manufacturer seeking reliable components or a DIY project lover looking for the perfect sound solution, our CE Series drivers offer an optimal blend of size, price, and performance that's hard to resist.
Key Features
  • High Economic Value
  • Delivers crisp, clear audio, ensuring an immersive listening experience
  • High-quality audio solutions without breaking the bank, ideal for budget-conscious projects
  • Suitable for commercial use, DIY projects, art exhibits, and more
Your Price: $12.98
MSRP: $19.99
Save $7.01 (35%)
Bulk Pricing
Quantity:Qty: 1-3 $12.98/ea
Quantity:Qty: 4+$12.33/ea
Order in the next 3 hr 45 min to ship today. Details

691In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Dayton Audio CE Series CE54N-4 2" Dual Neo Full-Range Speaker Driver 1"VC 15W 4 Ohm

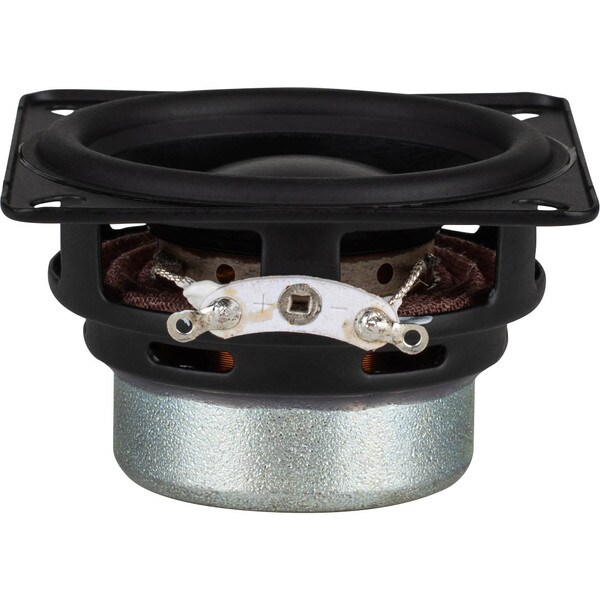

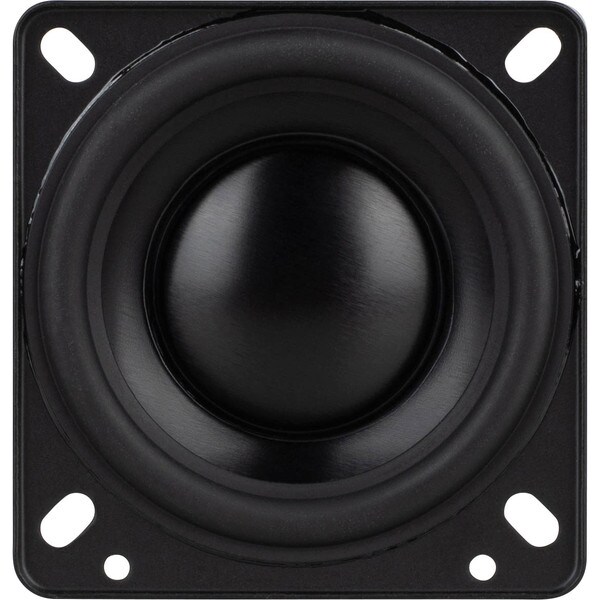

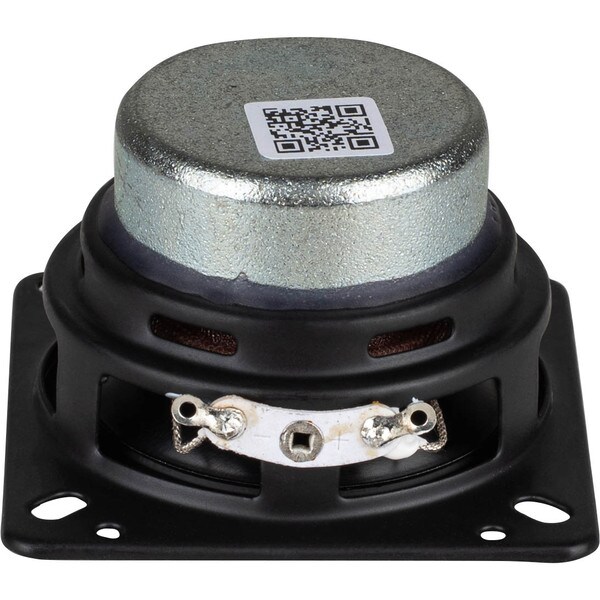

This neodymium micro speaker packs full-range sound into a compact 2-inch frame, delivering crisp highs, midrange clarity and surprisingly robust bass for its size. Despite its dimensions, the Dayton Audio CE54N-4 punches well above its weight class, cranking out 15 watts of power handling for small-scale commercial installations, DIY projects and budget-friendly manufacturing. Its 4-ohm impedance plays nicely with a range of amplifiers. For economic, space-constrained audio solutions that don't sacrifice on sound, the CE54N-4 is a small speaker with a big voice, ready to be deployed for background music, paging systems, exhibits and more.

Product Details

BrandDayton Audio
ModelCE54N-4
Part Number285-167
UPC848791009327
Unit of MeasureEach
Weight0.25

Product Specifications

Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance
Frequency Response150 - 17,000Hz
Sensitivity84dB 2.83V/1m
Voice Coil Diameter0.98"

Thiele-Small Parameters

Resonant Frequency (Fs)168Hz
DC Resistance (Re)3.6Ω
Voice Coil Inductance (Le)0.11mH
Mechanical Q (Qms)6.77
Electromagnetic Q (Qes)0.63
Total Q (Qts)0.58
Compliance Equivalent Volume (Vas)0.003ft³
Mechanical Compliance of Suspension (Cms)0.37mm/N
BL Product (BL)3.82T·m
Diaphragm Mass Inc. Airload (Mms)2.4g
Maximum Linear Excursion (Xmax)1.4mm
Surface Area of Cone (Sd)14.5cm²
