DS18 ZR6.2D 6-1/2" Elite-Z DVC Subwoofer 2 Ohms Per Coil

4 Questions, 7 Answers or
DS18
Part #294-8064

DS18 ZR6.2D 6-1/2" Elite-Z DVC Subwoofer 2 Ohms Per Coil

DS18
Part #294-8064
Model: ZX6
4 Questions, 7 Answers or

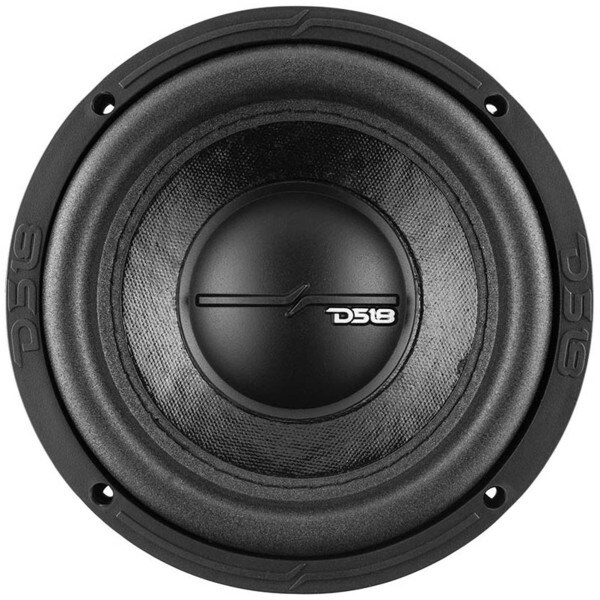

The ZR6.2D 6-1/2” Elite-Z dual voice coil subwoofer from DS18 combines high power handling with incredible displacement for excellent output capability. With dual 2-ohm voice coils, this driver gives you multiple wiring option to get the most out of any amplifier. All ZR series subwoofers feature a large foam surround, non-pressed paper cone, extensive venting, and powerful ferrite magnets to deliver clean bass with reliable performance.
Key Features
  • Flexible specifications that are suitable for use in both sealed and vented enclosures
  • Large foam surround ensures keeping great cone control when pushed to its limit
  • 1-1/2” voice coil on aluminum former to handle up to 300 watts RMS
  • Under spider and pole venting dissipates excess heat for improved power handling and reliability
Similar items that may interest you:
Your Price: $79.95
Bulk Pricing
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

DS18 ZR6.2D 6-1/2" Elite-Z DVC Subwoofer 2 Ohms Per Coil

DS18’s ZR6.2D 6-1/2” Elite-Z dual voice coil subwoofer is built to deliver excellent low frequency performance from an entry level price. With of 15 mm of excursion this driver is capable of ample displacement required to produce deep bass from minimal space. The large foam surround is stitched to the non-pressed paper cone to ensure linear operation and reliability even when pushed to the limit. A 1-1/2” copper voice coil wound on an aluminum former includes extensive venting to dissipate enough heat to safely handle up to 300 watts RMS for surprising output capability. In addition, dual 2-ohm voice coils allow multiple wiring options to ensure you are getting the most out of your amplifier for optimal performance. The ZR6.2D is the perfect subwoofer choice if you are looking for premium performance from a modest budget and have little space to work with.

Note: This is a dual voice coil with 2-ohm voice coils. Specs listed below are with the voice coils wired in series for a 4-ohm load.

Product Details

BrandDS18
ModelZX6
Part Number294-8064
UPC663593064820
Unit of MeasureEach
Weight7.35

Product Specifications

Nominal Diameter6-1/2"
Speaker Size4"
Power Handling (RMS)300 Watts
Power Handling (MAX)600 Watts
Impedance
Frequency Response38 to 200Hz
Sensitivity82dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)65Hz
DC Resistance (Re)3.6Ω
Mechanical Q (Qms)3.412
Electromagnetic Q (Qes)0.769
Total Q (Qts)0.627
Compliance Equivalent Volume (Vas)0.0936ft³
Mechanical Compliance of Suspension (Cms)0.108mm/N
BL Product (BL)5.37T·m
Diaphragm Mass Inc. Airload (Mms)55.41g
Maximum Linear Excursion (Xmax)15mm
Surface Area of Cone (Sd)143cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.75"
Baffle Cutout Diameter5.54"
Depth3.49"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.25ft³
Sealed F382Hz
Vented Volume0.45ft³
Vented F344.7Hz
